Name: High Quality Fully Automatic Small Sachets Milk Flour Powder Packing Machine
SKU: 211497010019181
Availability: InStock

High Quality Fully Automatic Small Sachets Milk Flour Powder Packing Machine

ر.س16,493.36

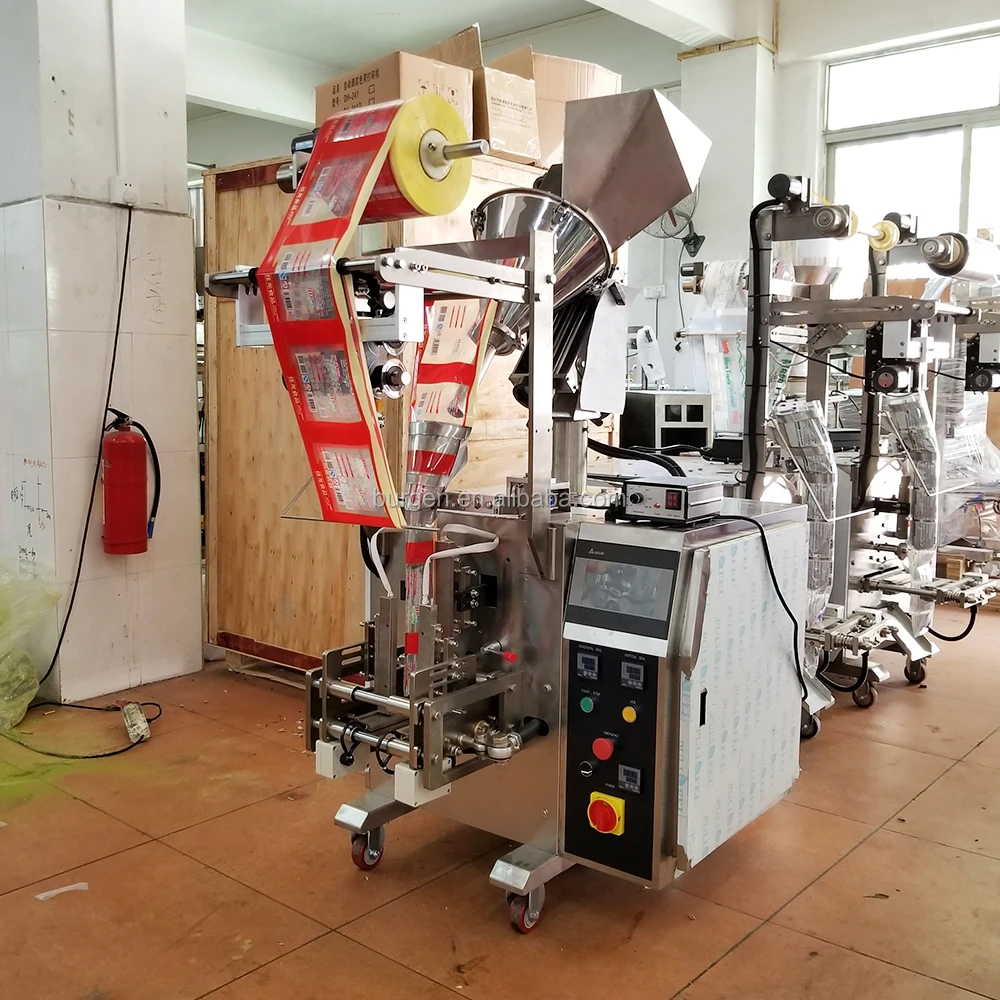

High quality fully automatic small sachets milk flour powder packing machine

ONE-STOP SOLUTION

POWDER

PACKING MACHINE UNIT

>> We Are a Manufacturer

One-stop solution for packing machines and packing films Save

APPLICATION

◆ APPLICATION & BAG TYPE ◆

◆ Sachet Sample ◆

Powder packing machine is suitable for all kinds of superfine powder stuff. Such as milk powder,flour,starch,coffee,spice,seasoning,tea powder,baking powder and chemical powder,ect.

support non woven farbic,the bags more beautiful

▷Packaging Machine Parameters

Model	BG-320FD	BG-420FD	BG-520FD	BG-720FD
Film Width	Max.320MM	Max.420MM	Max.520MM	Max.720MM
Bag Length	80-250MM	80-300MM	80-350MM	180-500MM
Bag Width	50-150MM	60-200MM	100-250MM	100-350MM
Roll Diameter	Max.320MM	Max.320MM	Max.320MM	Max.320MM
Film Thickness	0.04-0.12MM
Packing Speed	5-60Bag/Min	5-60Bag/Min	5-60Bag/Min	5-55Bag/Min
Power	220V50/60HZ 2KW	220V 50/60HZ 2KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW
Machine Size(mm)	(L)1005* (W)850*(H)1241 MM	(L)1217* (W)1015*(H)1343 MM	(L)1488* (W)1080*(H)1490 MM	(L)1780* (W)1350*(H)2050 MM
Machine Weight	About 620KG	About 650KG	About 680KG	About 750KG
Option Device	Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device.

◆
Pouch Features Or Options
◆

Valves or Vents

Reclosable or Resealable Zippers

Tear Notches

Euro or Round Punch Holes

Paste wet wipes

Rounded Corners

MACHINE DETAILS

0⒈ Auger Feeder

★
304 auger feeder for powder filling efficiency and less noise

02.
Injection Pump

★Servo auger filler metering struture enable accurate measuring.

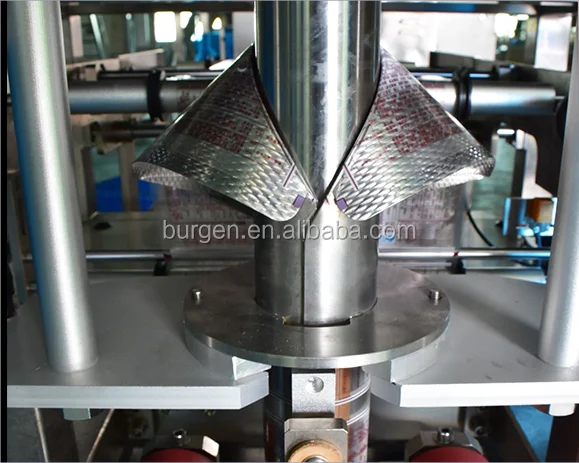

03. Bag Former

★Provide diversified bag-shaped. ★Save on film costs. ★Prevent roll film deviation.

04. Touch Screen

★Simple operation ★Multilingual. ★Automatically remember 8 sets of parameters.

Feature:

1. With the function auto filling,measuring,bag forming,sealing and cutting. Bag-making system adopts step motor with high precision(error is less than 1mm).
2.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
3.To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.
