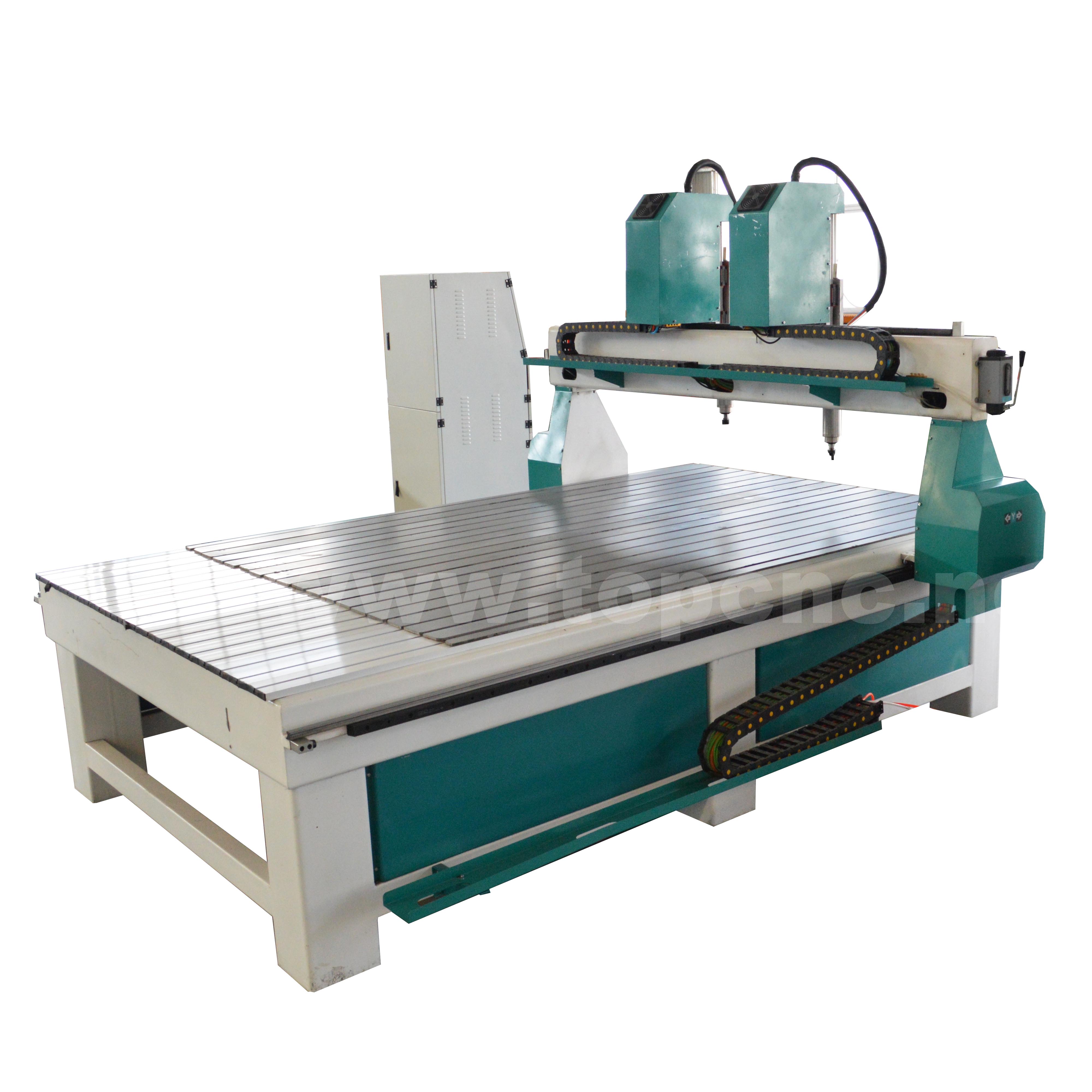

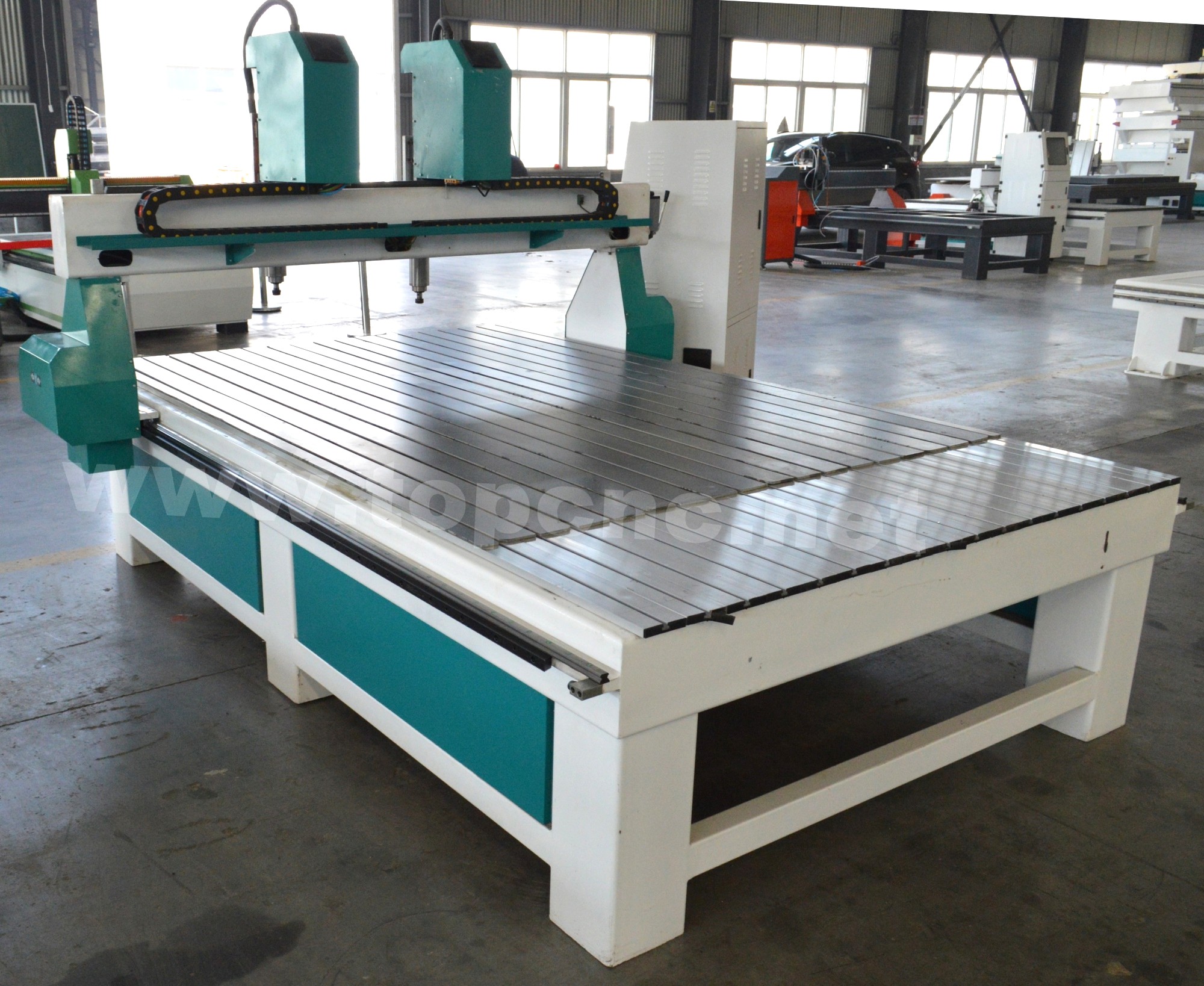

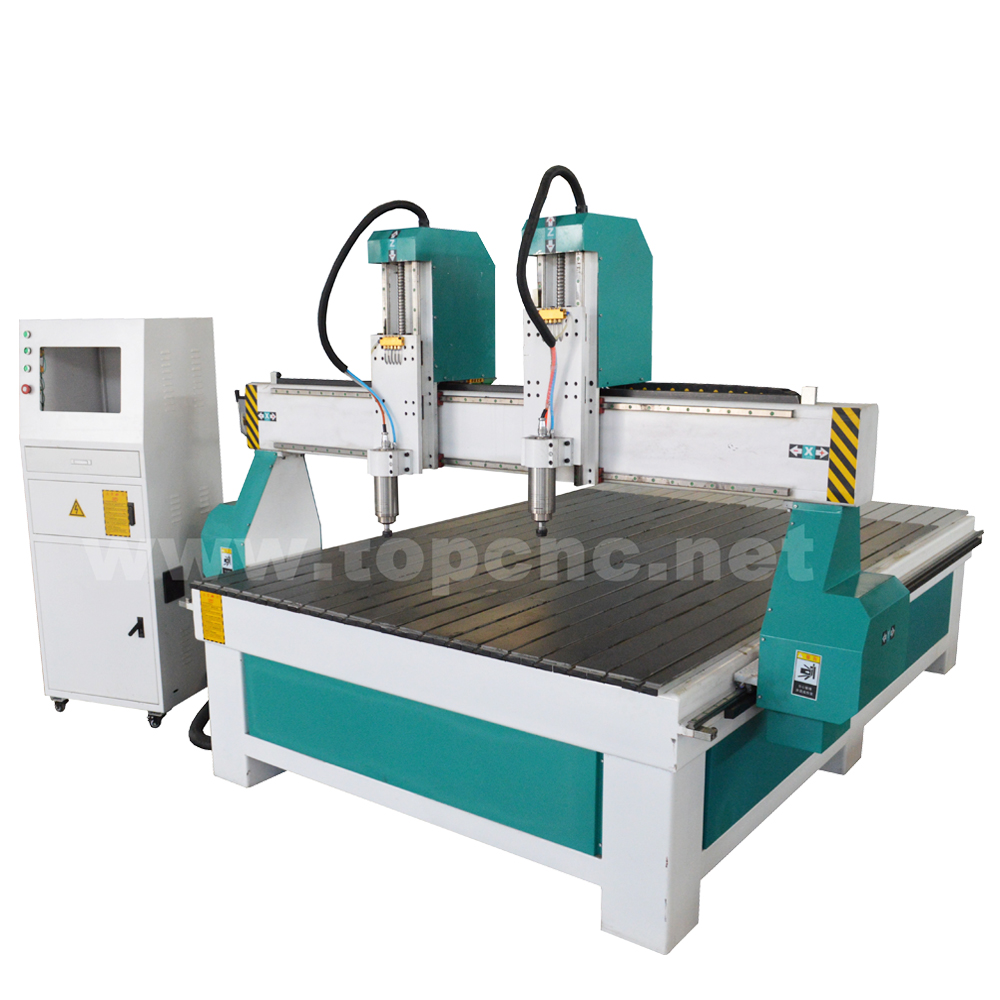

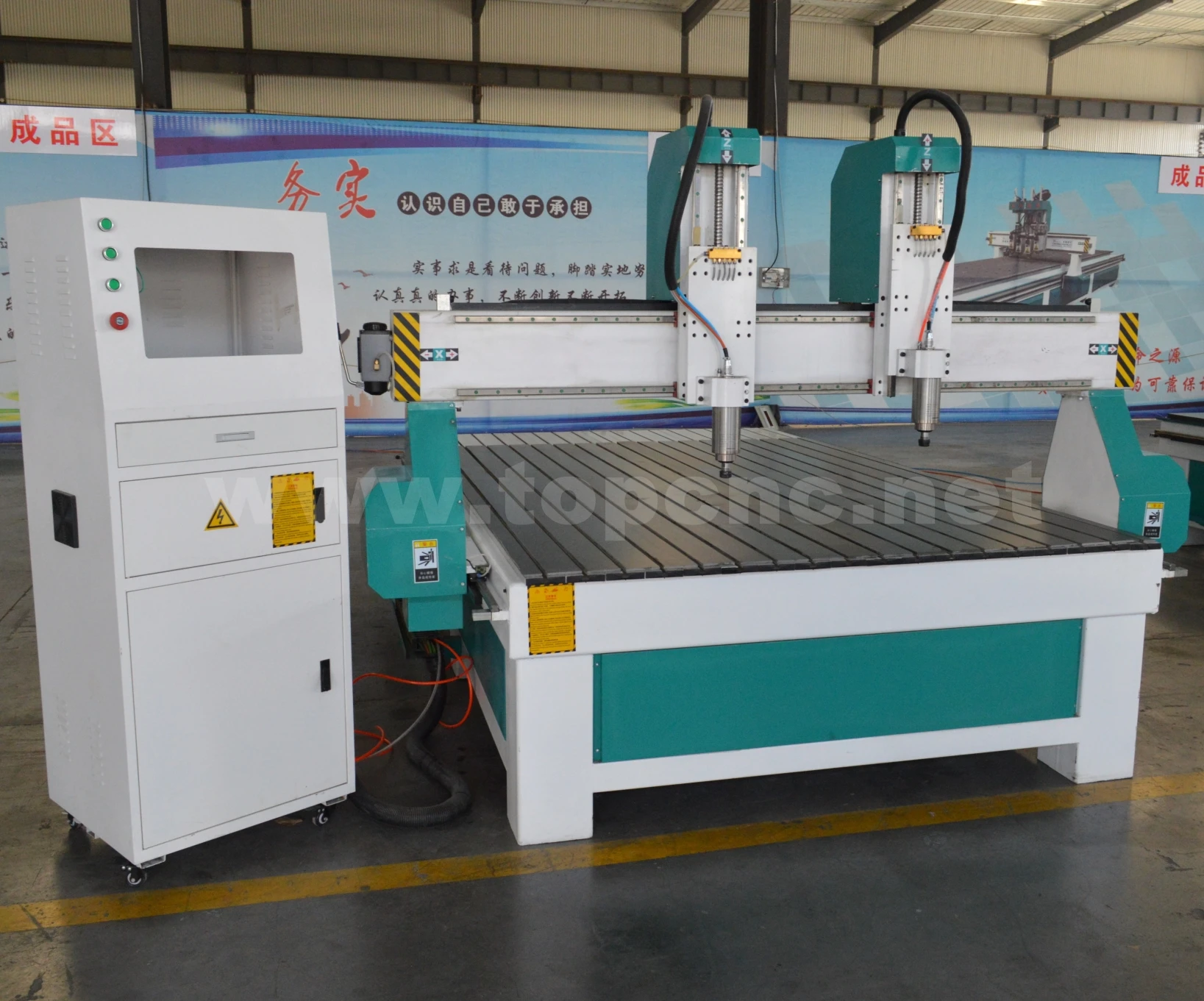

High quality atc cnc router machine 3d cnc router 1325 wood cnc router machine cnc router machine wood
|
Feature 1. The design of cnc router is very important, adopt industrial class square tube strong structure, which is very benefit for loner-life time using. 2. Linear auto tool change design, no need to change tool manually. It can help to finish different work quickly. 3. High configuration equipped, promise router running smoothly. 4. Rotary axis design, specially for 3D cylinder wood craft or sculpture etc. |
 |
 |
 |
| X,Y,Z Working Area | 1300x2500x200mm |
| X, Y, Z Traveling Positioning Accuracy | ±0.03/300mm |
| X, Y, Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot working table |
| Frame | Welded Structure |
| X, Y Structure | helical rack, PMI Rail Linear Bearings |

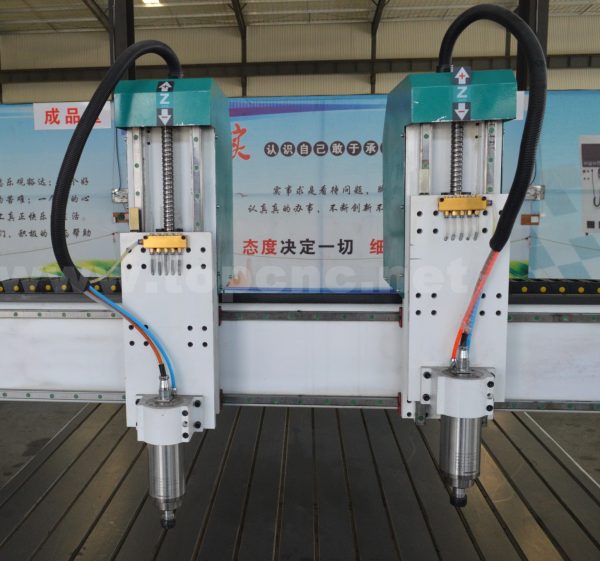

| Z Structure | PMI Rail Linear Bearings and TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3.0 KW water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | Mach3 for 3 axis |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | Ucancame/ Artcam |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
 |
 |
| Water-proof plastic film package with foam protection in each corner. Solid Seaworthy Wood Box Package with Steel Belt. Save space as much as possible for container loading. |
 |
|
Training Services
Online Services
Warranty Services
|
 |
| Shenzhen Tip-Top Manufacture &Trading Co., Ltd is a branch company with engineers and research and development for 17 years. It is a professional manufacturer engaged in the research, development, production, and service of fiber laser marking machine. Fiber laser cutting machine, fiber laser marking machine, CNC router, laser engraving machine, laser welding machine, and CNC plasma cutting machine. |
 |
|
Q.How can I buy this machine from you? (Purchasing Process) 1)Consult us about the product through online chatting or by e-mail. 2)Negotiate and confirm the final price, shipping, payment methods, and other terms. 3) We will send the proforma invoice to you and confirm your order. 4) You can make the payment according to the agreement. 5)We will arrange the production and shipping schedule of the machine you ordered based on the proforma invoice after confirming your full payment. Our quality assurance team will run the full testing of the machine before it shipped out.
Q: Are you a trading company or a manufacturer? Our company is a factory based laser machine & CNC router manufacturer, so we can ensure the quality of the machines are great, as well as make sure the price is cost-effective. If you want to learn more about our company and the machines, please sent me a message or your email, I will provide you more information.
Q: Do I need to learn a programming language to operate a CNC router? No, you don’t. The design software titles available on our machine allow you to design your files, import pictures, and drawings, manipulate them and the software will, in turn, generate the code that the machine will use to cut out your parts.
Q: What size machine is best for me?What kind of work do you want to do now? And How about 3 years from now? If you are in a small shop and you only want to make small parts, a small machine will likely do you just fine. But if you want to cut full sheets you will do well to look at a 4 x 8 foot or larger machine. |
