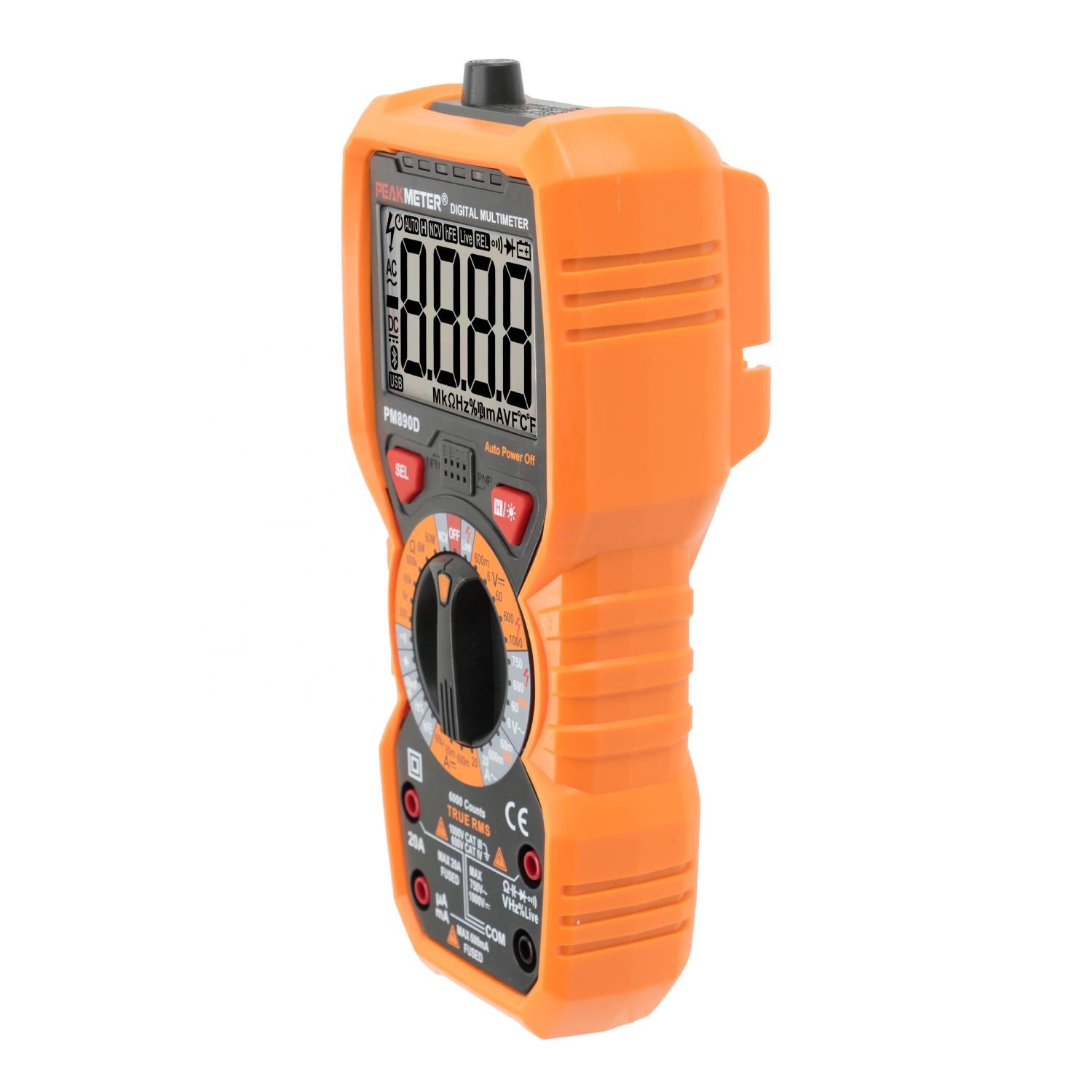

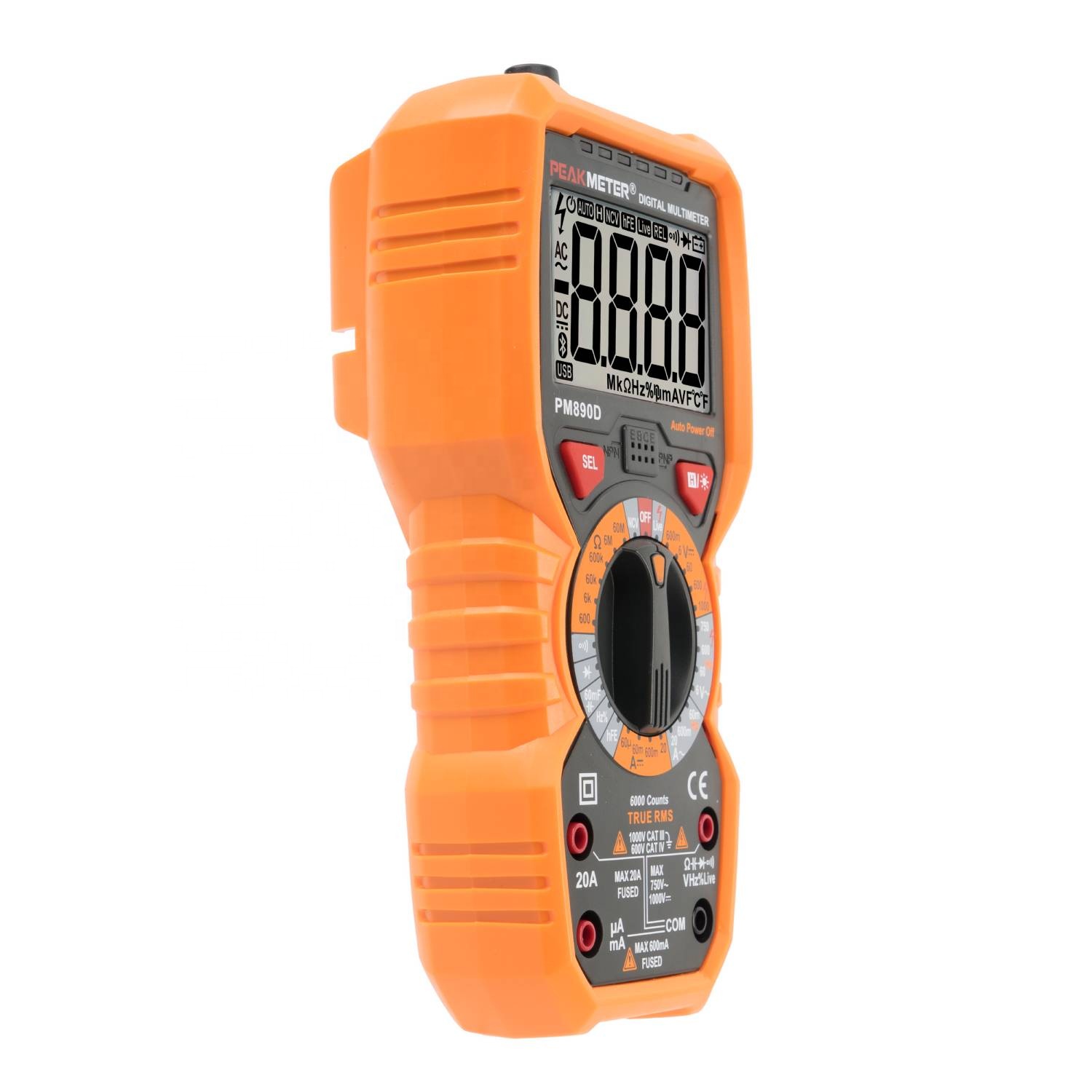

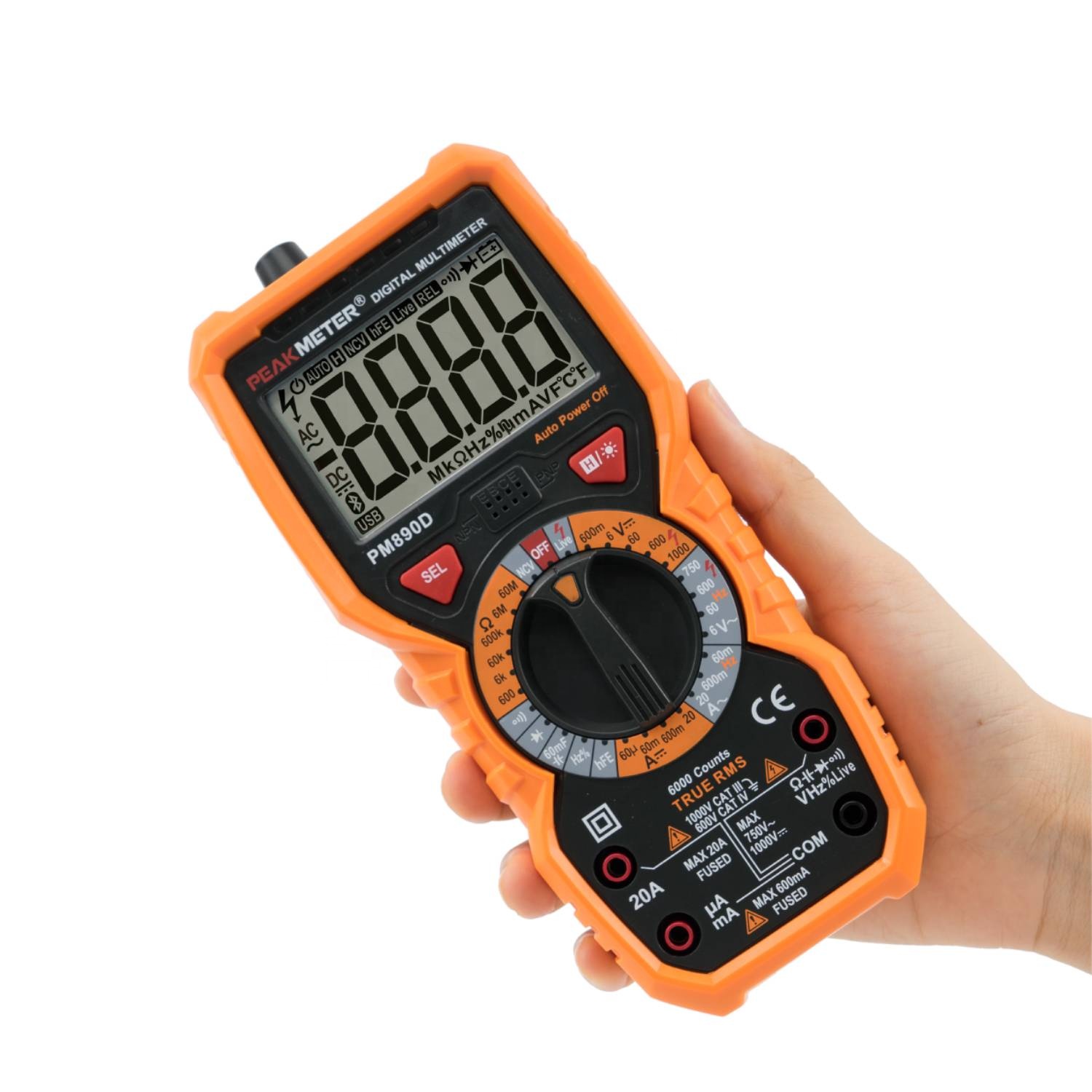

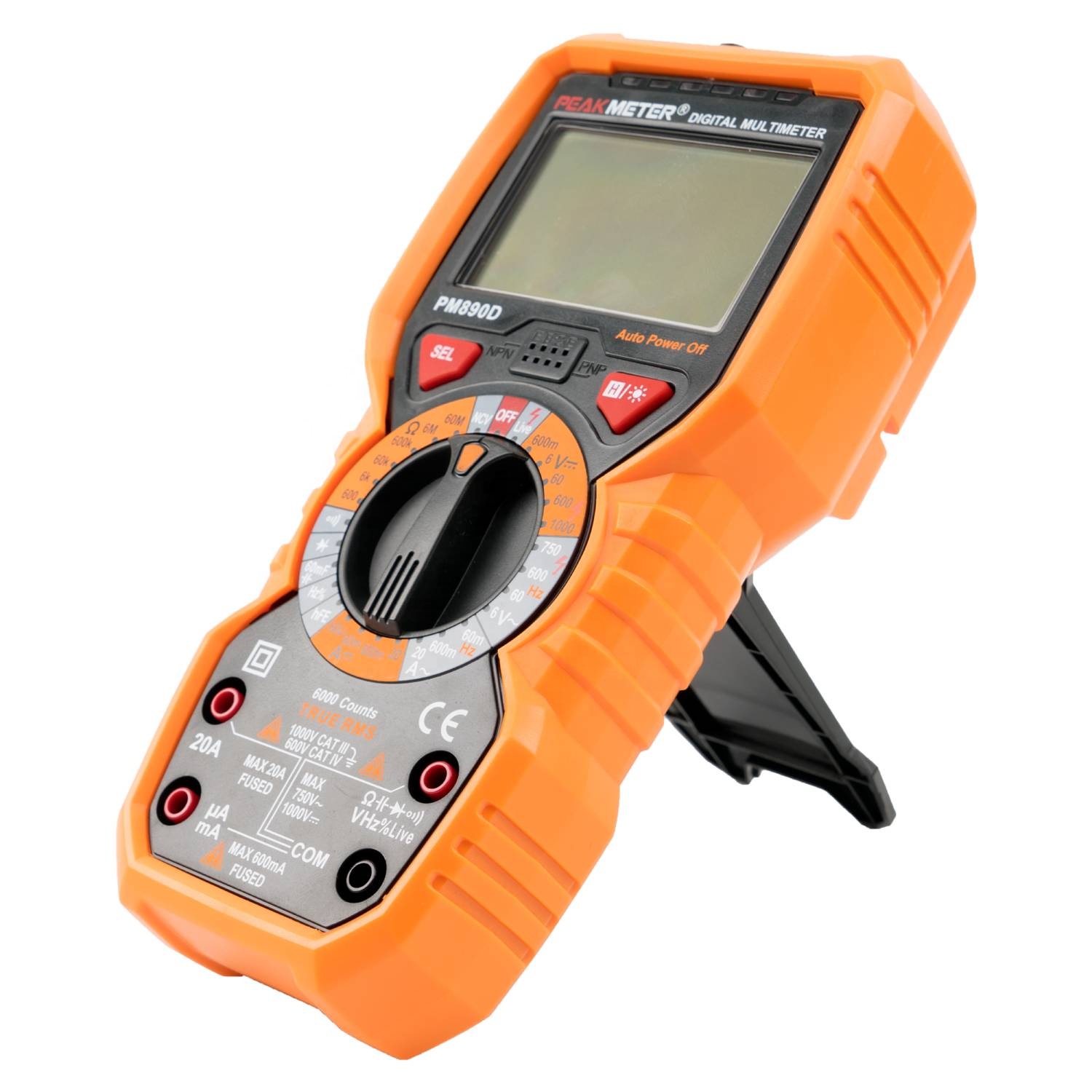

high quality AC DC current 20A portable digital multimeter PM890D with true RMS
FEATURES:
1. 6000 counts AC/DC multimeter with true RMS
2. Frequency.Live line.Temperature.Diode.Continuity.Capacitance Test
3. 20A 1000V multimeter with temperature checking
SPECIFICATIONS |
RANGE |
ACCURACY |
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
AC Voltage |
6V/60V |
±(0.8%+3) |
600V/750V |
±(1.0%+10) |
|
Resistance(Ω) |
600/6k/60k/600k/6M |
±(0.8%+3) |
60MΩ |
±(1.2%+3) |
|
Capacitance |
6nF/60nF/600nF/6uF/60uF/600uF/6mF |
±(4.0%+3) |
60mF |
±(5.0%+3) |
|
Frequency |
60Hz/600Hz/6kHz/60kHz/600kHz/6Mhz/10MHz |
±(1.0%+3) |
Duty |
5%~95% |
±(2.0%+3) |
AC Current |
6mA/60mA/600mA |
±(1.0%+3) |
20A |
±(1.5%+3) |
|
DC Current |
60uA/6mA/60mA/600mA |
±(0.8%+3) |
20A |
±(1.2%+3) |
|
HFE |
0-1000 |
±(1.0%+3) |
PACKAGE:
For small items, we will fully pack with Yellow Tape to protech water.For standard carton we will pack with stretch film and client’s shipping mark mentioning company name,carton number.
DELIVERY TIME:
We have all items in stock, for sample we can send out within 3 working days, for OEM we can send within 35 working days,mosty depends on the quantity and our sales season!
