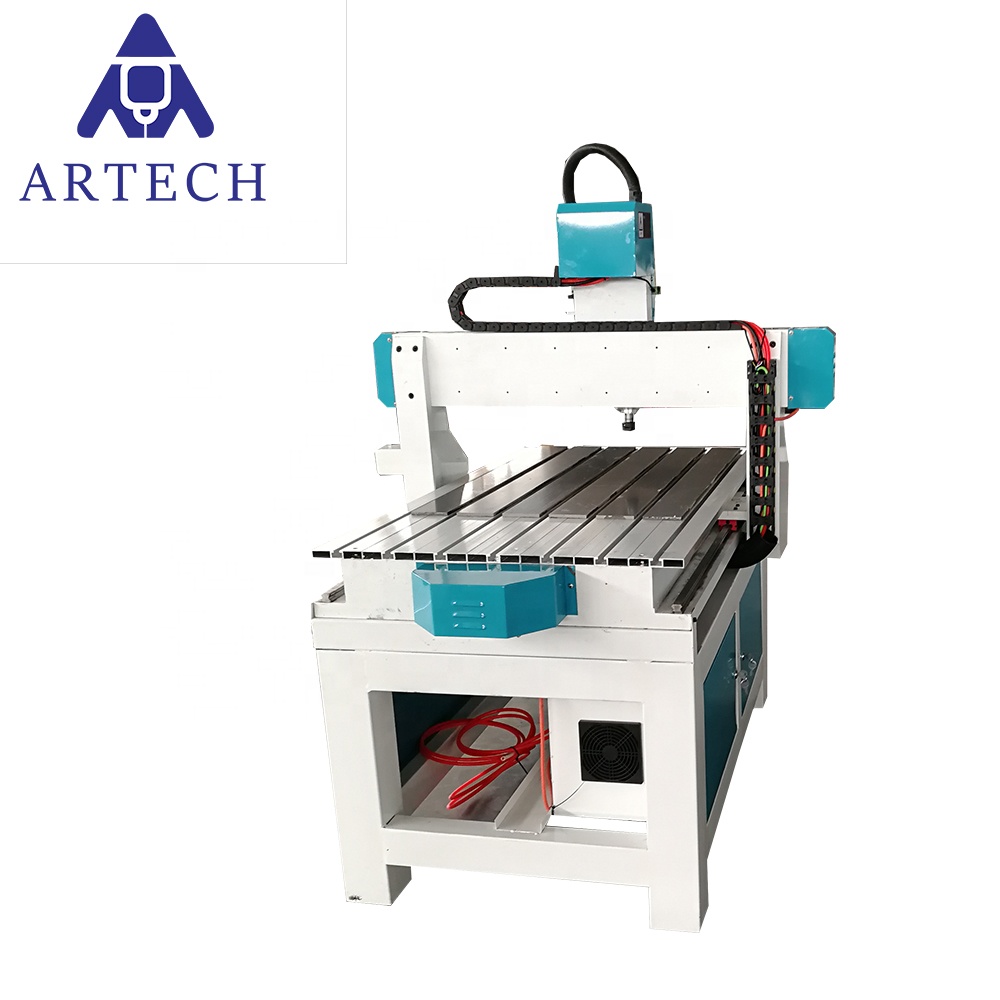

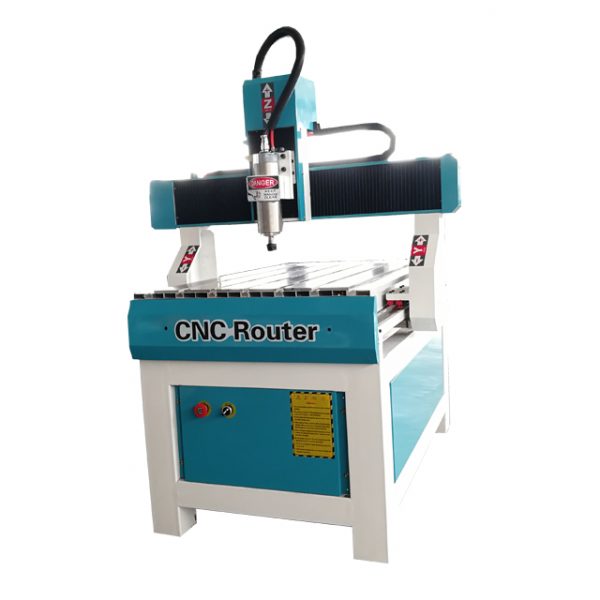

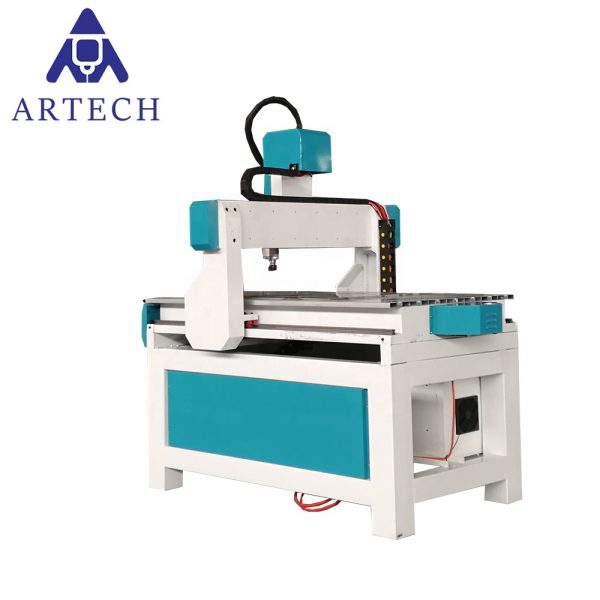

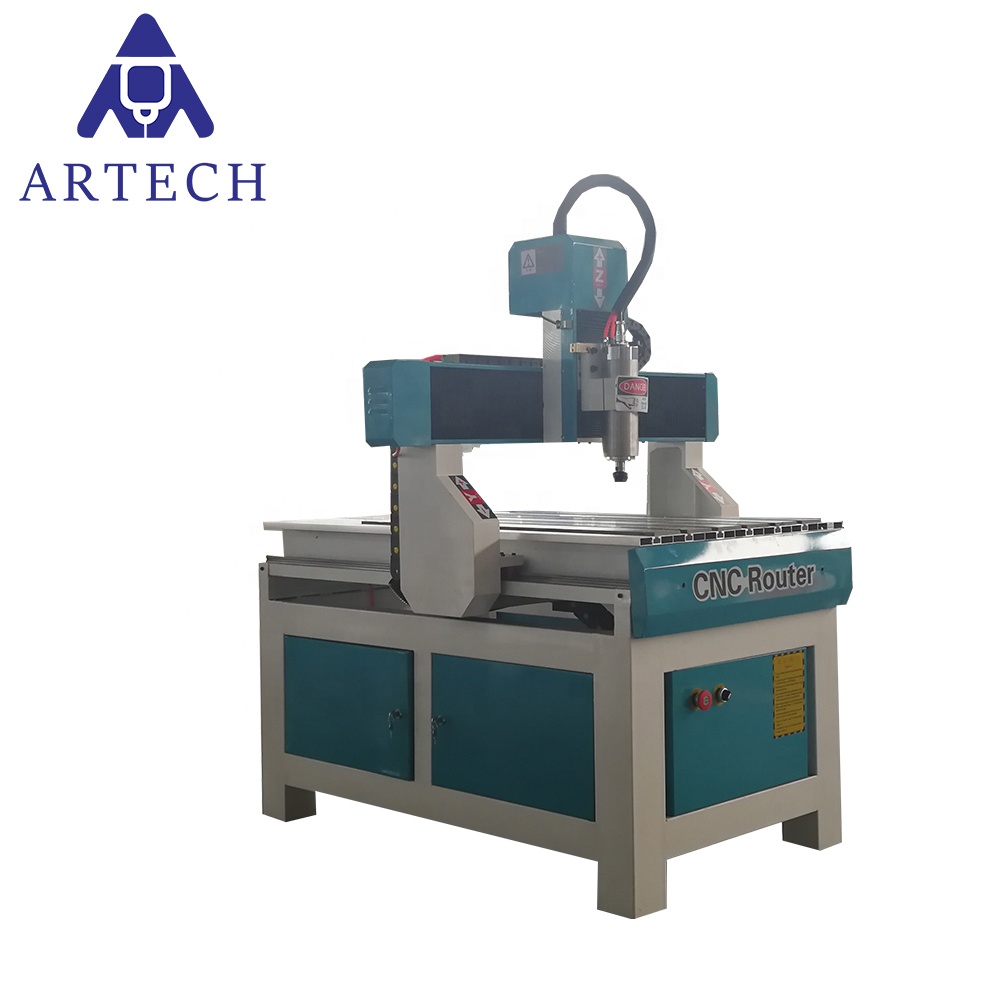

high quality 3d mini cnc router 6090 with cheap price
Feature of mini cnc router 6090:
1. Whole machine is cast iron structure,the stability is excellent,not easy to be deformed.
2. Three axes adopted ball screw and linear orbit,stable working,high precision and long using life.
3. DSP control system with USB port,just need the handle to operate the machine,easy and convenient.
4. With T.slot working table,holding the materilas with clamps,you can do variety of high precision works.
5. X,Y axis is dust proof,it makes sure the steady working performance of the machine for long term using.
Technical Parameter of mini cnc router 6090:
Parameters |
Standard Specifications |
X Y Z axis working area |
600x900x200mm |
Spindle |
2.2kw water cooling spindle |
X Y Z traveling positioning accuracy |
+-0.01/2000mm |
Table |
T.slot table or vacuum table |
Vacuum pump |
air cooling 5.5kw pump |
X Y Z rail and transmission |
Taiwan TBI ball screw and gear rack |
Max.rapid travel rate |
50000mm/min |
Max.working speed |
30000mm/min |
Spindle speed |
24000RPM |
Driver motors |
Stepper motor and driver |
Working voltage |
220V/380V/50HZ |
Command language |
G code |
Control system |
DSP or Syntec /NC studio//Mach3 |
Software compatibility |
Option:Artcam,Ucancam,Type3 |
Running environment |
Temperature:0~45℃ Relative humidity:30%~75% |
Oil system |
handle |
Frame structure |
Welding structure |
Application of mini cnc router 6090:
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Production Process:
Package and Delivery of mini cnc router 6090:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15 to 30 working days after payment.
After Sale Service of mini cnc router 6090:
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, “Brand ArtechCNC” gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China’s forefront in development and expansion.
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
Customers Working:
Customers Feedback:
