Product Description

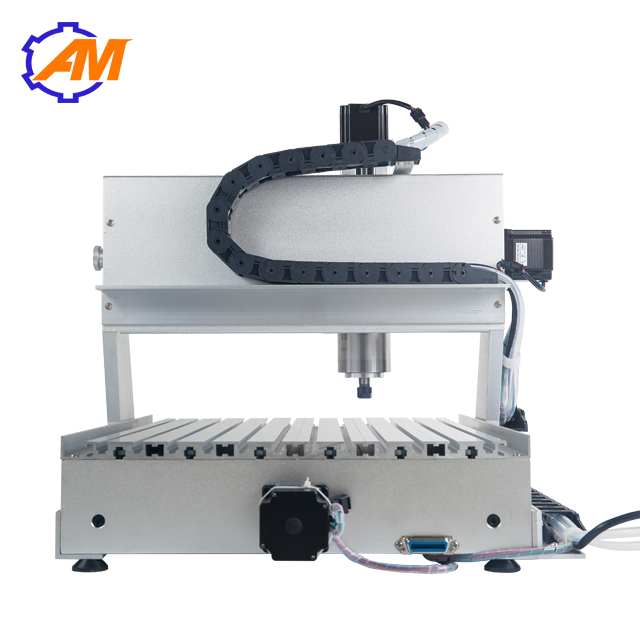

AM3040 ENGRAVING MACHINE .

Milling and engraving CNC machines allow to realize any of your ideas!

The related video:

http://youtu.be/FNnu4AFoi1Y                      <for engraving the plane >

http://youtu.be/FTaF9LXEwcM                    <for engraving the ring (inside and outside)>

http://youtu.be/AEbR0Rqw91U                    <the photo dot for the photo>

The applicable  range of the  material :

wood
plastic
orsteklo
Chipboard, MDF , plywood
light metals (copper, aluminum , brass)
The main types of treatment:
etching
cutting
3d- milling
boring
milling and engraving on a rotating axis.

The parameter :
MAX. X axis travel
300mm
MAX. Y axis travel
400mm
MAX. Z axis travel
80mm
Size
540*520*470mm
Resolution ratio
0.0125mm
Table structure
Steel /aluminum alloy plate/ (with trapezoidal slots)
MAX. moving speed
4000mm/min
Control
3000mm/min
Main shaft power
800W optional
Main shaft speed
0-12000rpm/min
Tool DIA. range
3.175mm,4mm,6mm
Voltage
AC 110v-240v
Drive model
Stepper and breakdown
Instruction
G-code
System
Window XP/Win 7
Detailed Images

NO.1

The part show

NO.2

The sample  show

Packing & Delivery

THE CONTACTS:

Skype      :amanmachinery-5
WeChat :amansales5
Cell        : 0086 15061508199

Model Number

800w 3040
