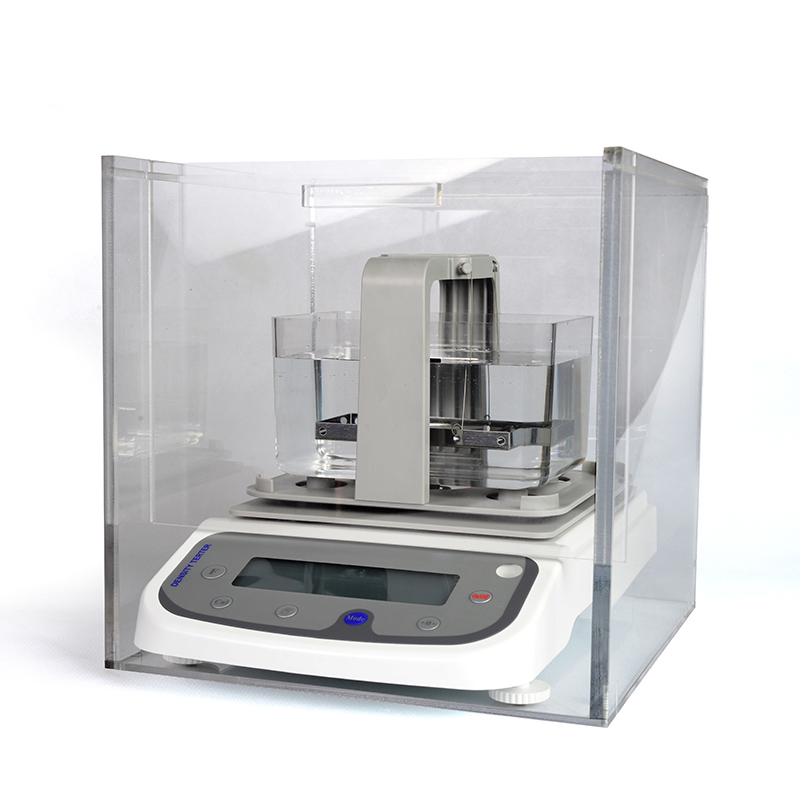

High precision soil densimeter meter density of solids hydrometer analysis of soils

Scope of application

Flowing liquid, viscous liquid, volatile liquid, corrosive liquid, high temperature liquid, suspension liquid, emulsified liquid alcohol, flux, flavor, blood, sodium chloride, glycerin, electrolyte, diesel, refrigerant, hydrogen Fluoric acid, glue, methylene chloride, etc. can be measured.

Application Industry

Chemical solution, chemical energy, petroleum fuel, fine chemical industry, chemical reagent, chemical research laboratory. It is suitable for density measurement in the fields of quality management, formulation modulation, cost control, density research and so on.

Normative basis

This instrument is based on GB / T13531, T5526, T5009, GB / T 611, GB / T11540, GB / T12206, GB / T5518 and other standard specifications.

Measurement principle

This instrument uses Archimedes’s buoyancy method to quickly read the relative density of liquids.

Instrument specifications

Features and devices

• Gold-plated ceramic capacitive sensor;

• Electronic balance with density testing device can realize the density test of liquids and solids;

• Can work with constant temperature water tank to measure the specific gravity of liquid at the required temperature

• Density direct reading, reducing tedious calculations;

• Standard RS232 data output function, can easily connect PC and printer;

• Fully automatic zero tracking, buzzer alarm, overload alarm function

• Dimensions, 270 * 270 * 270; weight; 6.5KG

• Only 50CC, fast reading of relative density of liquid

• Blue backlight LCD display;

• Volatile liquids, corrosive liquids, viscous liquids, and strong acid and alkaline liquids can be measured quickly (select related accessories)

Standard accessories

1.Main unit, 2. Measuring frame, 3. 2 stainless steel hooks 4. 2 standard glass weights, 5. 2 beakers, 6. weights, 7. windproof dust cover, 8. measuring bracket, 9. power transformer

Measurement steps

Hang the glass to measure the weight in the air, press the M key to memorize.

The glass weight is completely immersed in the liquid to be measured. Press the M key to memorize and directly display the density value.
