Overview
Product Paramenters
_____________________________________________________________________________________________________________________
|
Model
|
CNC6090 3-axis/4-axis
|
||||||
|
Effective work schedule
|
600(X)x900(Y)x120(Z)mm
|
||||||
|
External dimensions
|
1250*950*620(H)mm
|
||||||
|
Maximum thickness of material
|
≤130mm
|
||||||
|
Maximum workpiece size
|
1100mm * 720mm
|
||||||
|
Working table size
|
1100mm * 720mm * 20mm
|
||||||
|
Frame material
|
6061 aluminum alloy+6063 industrial aluminum
|
||||||
|
X, Y, Z axis screw
|
1605 trapezoidal lead screw
|
||||||
|
Sliding unit X axis
|
20mm chrome plated hard shaft
|
||||||
|
Sliding unit Y axis
|
25mm chrome plated hard shaft
|
||||||
|
Sliding unit Z axis
|
16mm chrome plated hard shaft
|
||||||
|
Stepper motor type
|
57 Two phase stepper motor-3A
|
||||||
|
Spindle motor
|
1.5/2.2KW new water-cooled spindle
|
||||||
|
Spindle speed
|
0~24000rpm/min (stepless speed regulation)
|
||||||
|
Empty running speed
|
0-2500mm / min
|
||||||
|
Engraving speed
|
0-2000mm/min (different materials vary)
|
||||||
|
Repetitive accuracy
|
≤0.03mm
|
||||||
|
Machine weight
|
80KG
|
||||||
_____________________________________________________________________________________________________________________

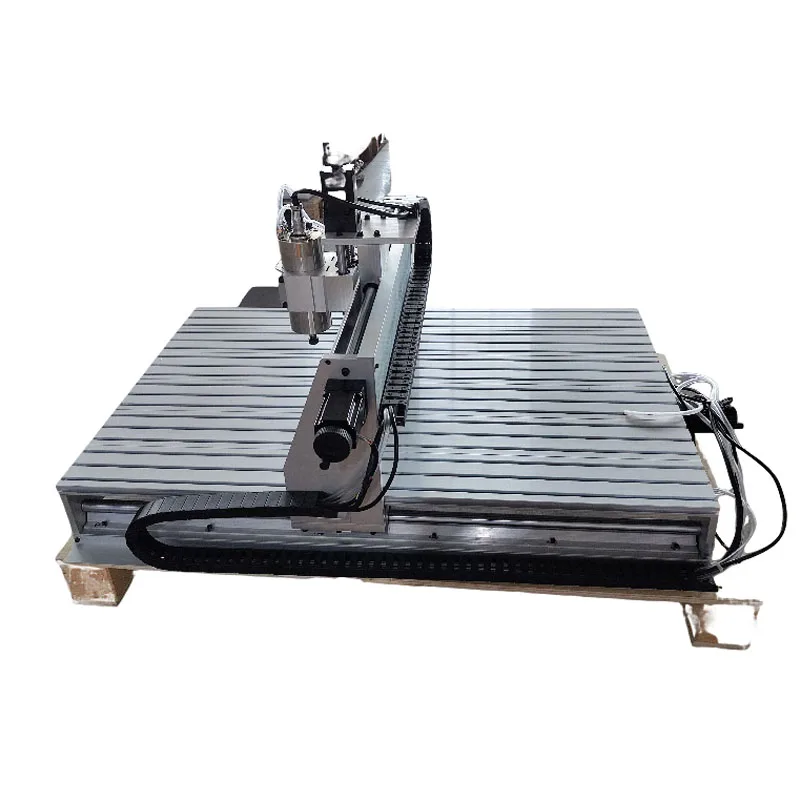

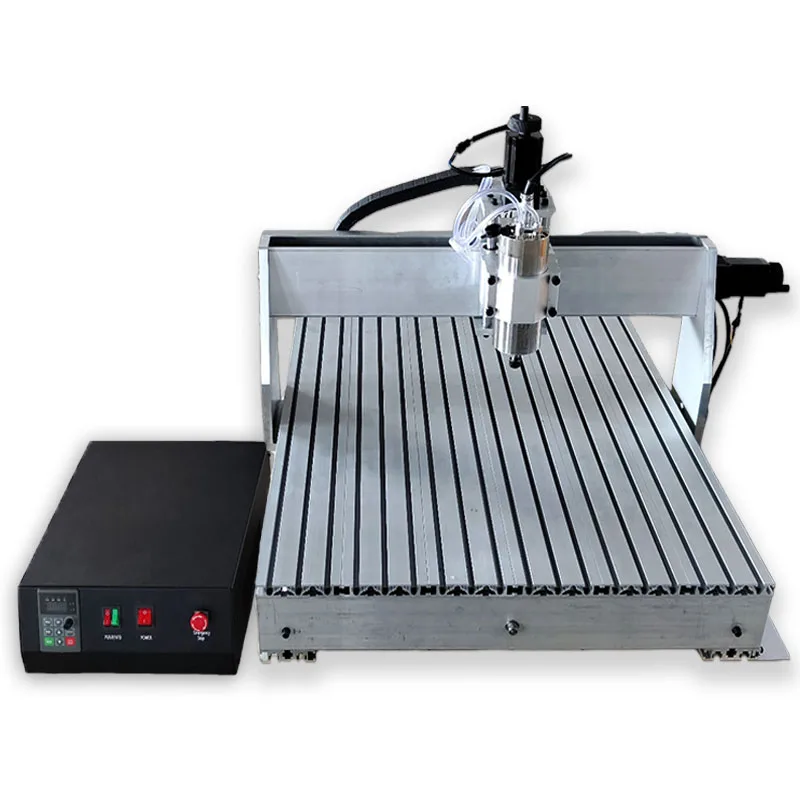

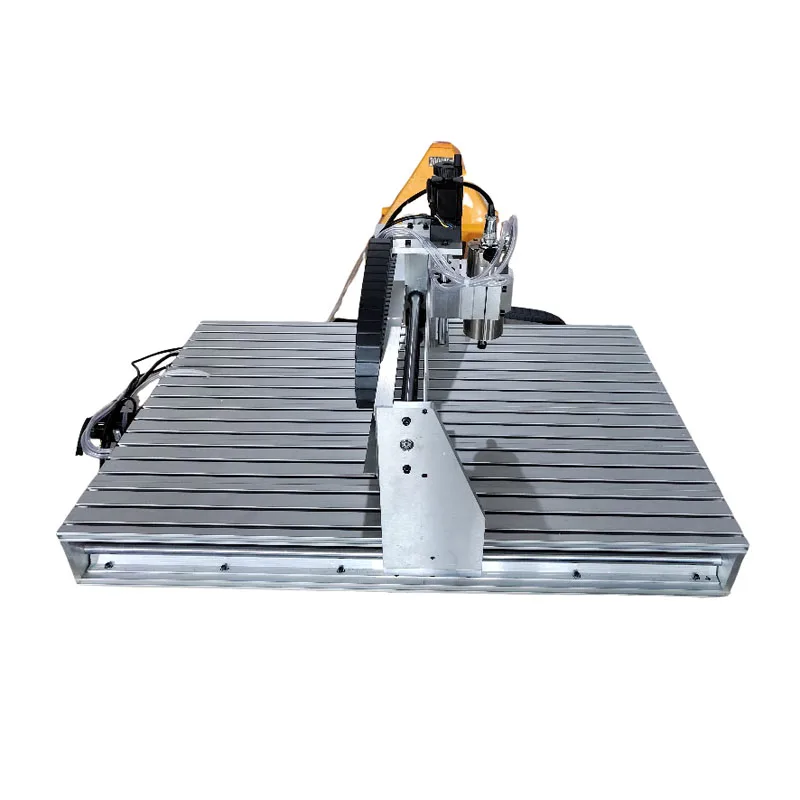

Products Images
_____________________________________________________________________________________________________________________
_____________________________________________________________________________________________________________________
Product Carving Material
_____________________________________________________________________________________________________________________
_____________________________________________________________________________________________________________________
Products Application
_____________________________________________________________________________________________________________________
_____________________________________________________________________________________________________________________

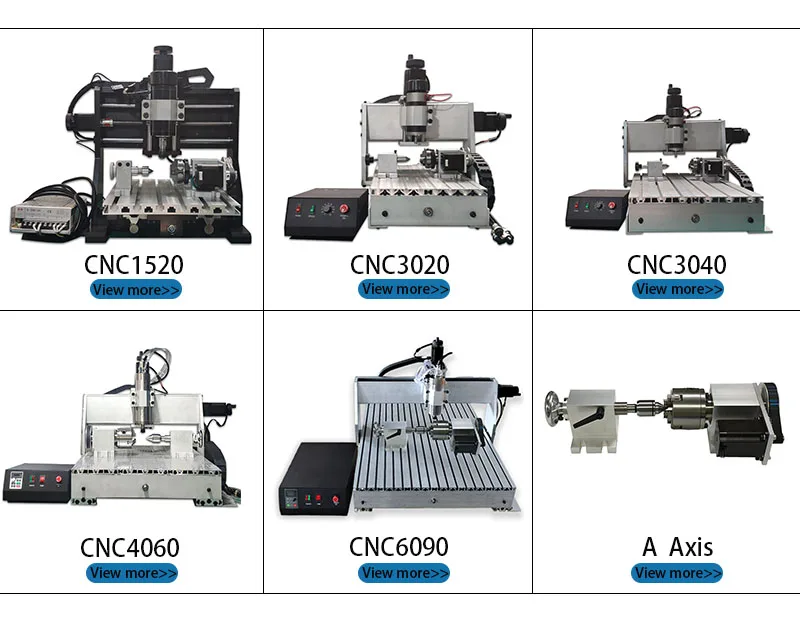

Related Products Recommend
_____________________________________________________________________________________________________________________
_____________________________________________________________________________________________________________________
Why Choose us
_____________________________________________________________________________________________________________________
Company Official Website
About SUMTOR (Wuxi) Electric Co., td
SUMTOR (Wuxi) Electric Co., td is a large-scale high-tech enterprise specializing in R&D, manufacturing and selling of precision transmission equipment in China. At present, its main products include: Stepper motor, AC motor, DC brushless motor, servo motor, motor driver, precision planetary reducer, servo motor special reducer, stepper motor special reducer, precision helical gear reducer, worm reducer, CNC engraving machine, etc.
As a high-tech enterprise of precision transmission equipment in China, this company has introduced the latest manufacturing technology, equipment and inspection methods from Germany, which effectively ensures the quality of products, production efficiency and the stability of equipment. SUMTOR is committed to the R&D and production of global precision transmission equipment products, providing the best solutions for transmission applications in the machinery industry at home and abroad.
SUMTOR’S products have been exported to dozens of countries and regions in the world, such as Germany, French Spain, Slovenia, Serbia, the United States, Brail, Japan, South Korea, Australia, India and other countries and SUMTOR has been rated as excellentsuppliers by domestic machinery and equipment manufacturers for many times.
With excellent product quality, complete supporting services, and prompt delivery speed, our company has won a good reputation in the industry.
