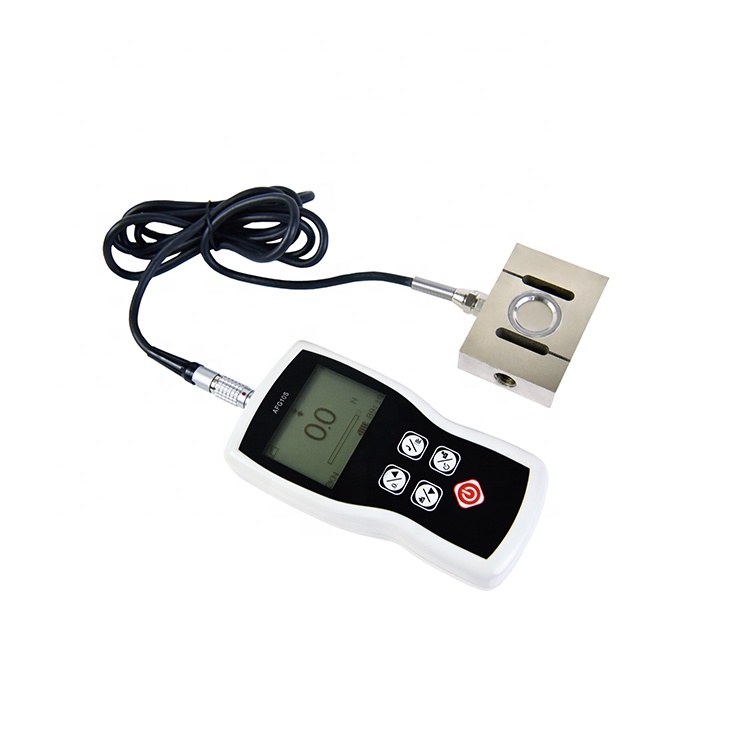

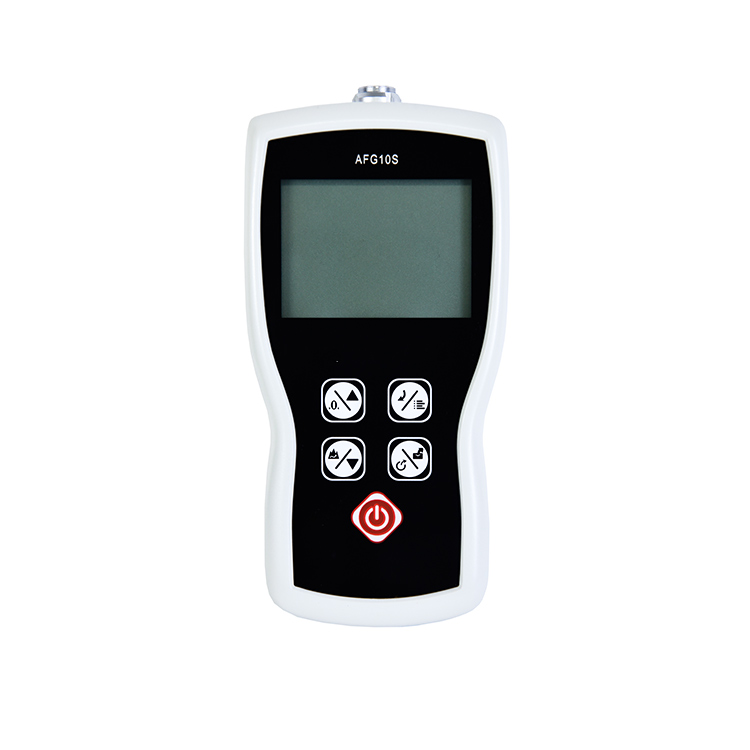

Portable Digital Hand Dynamometer Pull Push force gauge
Product models below 1000N

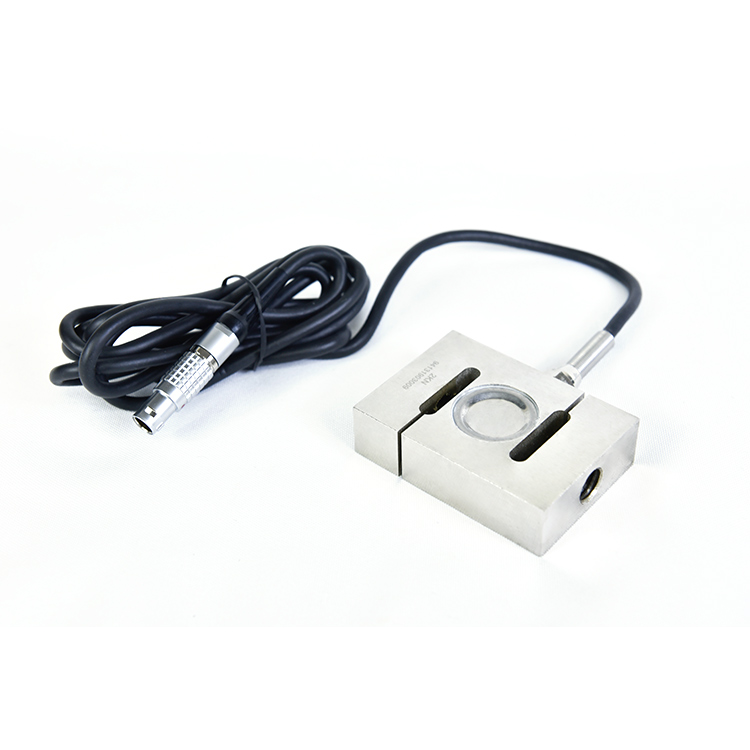

(S-sensor and spoke sensor optional)
|
|
|
|||||
|
N |
Kgf |
Lbf |
Ozf |
gf |
mN |
|
|
AFG10S-5 |
5/0.0005 |
– |
1.1/0.0001 |
18/0.005 |
500/0.05 |
5000/0.5 |
|
AFG10S-10 |
10/0.001 |
1/0.0001 |
2.2/0.0005 |
35/0.01 |
1000/0.1 |
10000/1 |
|
AFG10S-20 |
20/0.005 |
2/0.0005 |
4.4/0.001 |
70/0.01 |
2000/0.5 |
20000/5 |
|
AFG10S-50 |
50/0.005 |
5/0.0005 |
11/0.005 |
180/0.05 |
5000/0.5 |
5000/5 |
Features
Accuracy: ±0.2% FS
Ergonomic, durable, heavy-duty metal construction
Touchpad to minimized disturbance
Automatic reversible display
Automatic load cell identification (ALI)
Diagram displaying and printing
Overload Alarm
Automatic display direction converting
Variety of alarm output functions
USB port for upload to PC
Specifications
Accuracy: ± 0.2% F.S.
Units: N, gf, kgf, ozf, and lbf.
Display: 160*128 matrix LCD with LED Backlight
Overload Capacity: 120% F.S.
Measurement Mode: Track, Peak, AutoPeak
Sampling Rate: 2000 Hz
Memory: 1000 data
Temperature Effects: <0.03% FS/ °C
Power: 3.6VDC Ni-MH batteries
Charger / Adaptor: USB/BM charger, 110~240VAC

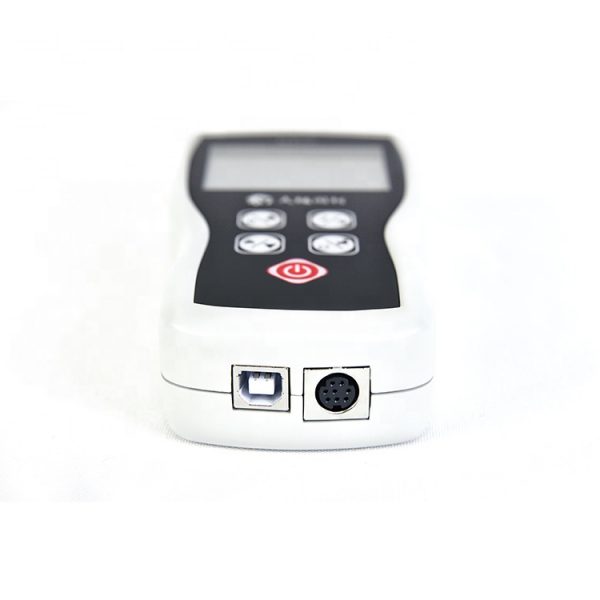

Outputs: USB, Set point output, RS232C
Operating Environment: -10 to 40°C , 20 to 80%RH
Dimensions: 160*73*34mm
Weight: 0.7 kg (1.5 lb)
