High output double color machine/ milk tablet press zp31
Application:
This ZP 31 rotary tablet press is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
Advantages:
1. ZP-31 rotary tablet press machine is used to press various granular raw materials into round pieces.
2. double -pressing type structure with two sets of feeders and two sets of pressing wheels.
3.During tablet pressing, the turret speed, material filling depth and tablet thickness are all adjustable.

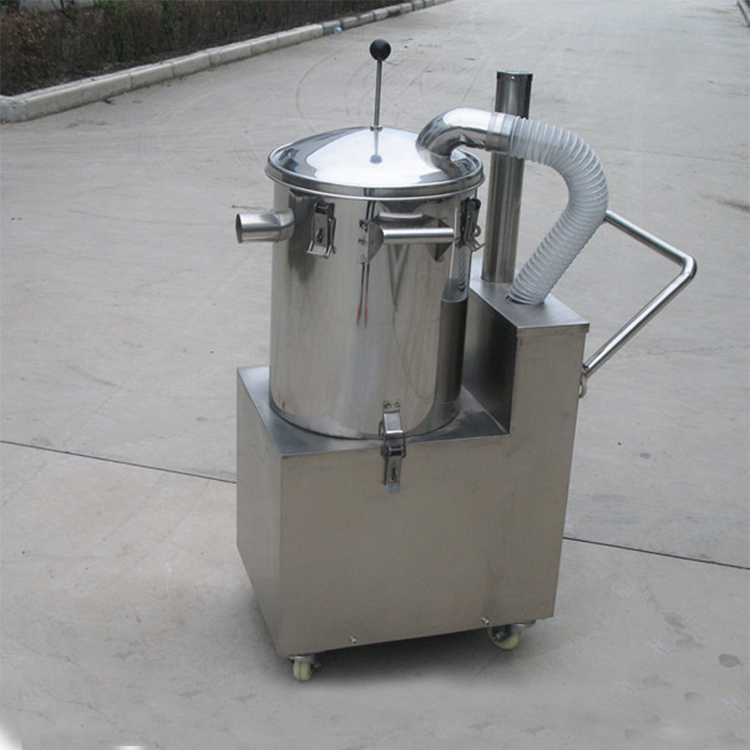

4.The machine is equipped with a dust suction device, which can absorb the flying dust in the pressing room.
Technical Parameter:
|
Model |
ZP31D |
|
Punch quantity(Sets) |
31 |
|
Max.tablet pressure(kn) |
100 |
|
Max.tablet diameter(mm) |
21.8 |
|
Max.filling depth(mm) |
15 |
|
Max.tablet thickness(mm) |
8 |
|
Turret rotary speed(r/min) |
14-36 |
|
Production capacity(PC/h) |
120000 |
|
Motor power(kw) |
5.5KW |
|
Overall size(mm) |
1230×950×1670 |
|
Machine weight(kg) |
1850KG |
PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 10 years’ experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 5: What’s your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 8: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer’s requirements.
Question 9: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.
Question 10: What are your modes of transportation?
Answer: Courier service, Air transport, Sea Transport.
Question 11: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
