Product Description

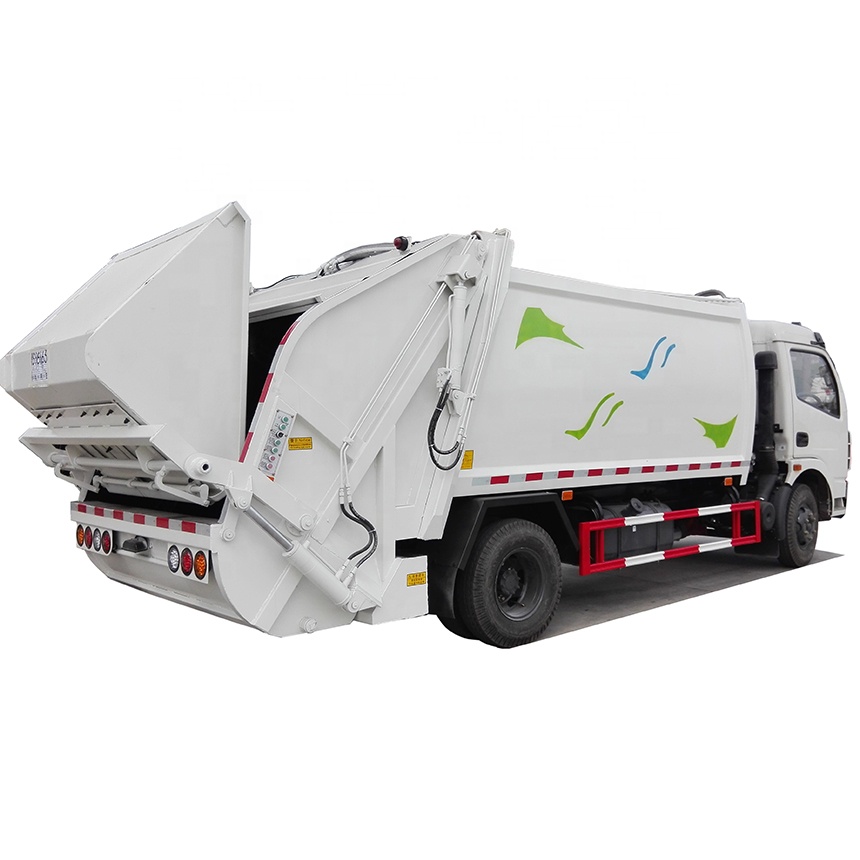

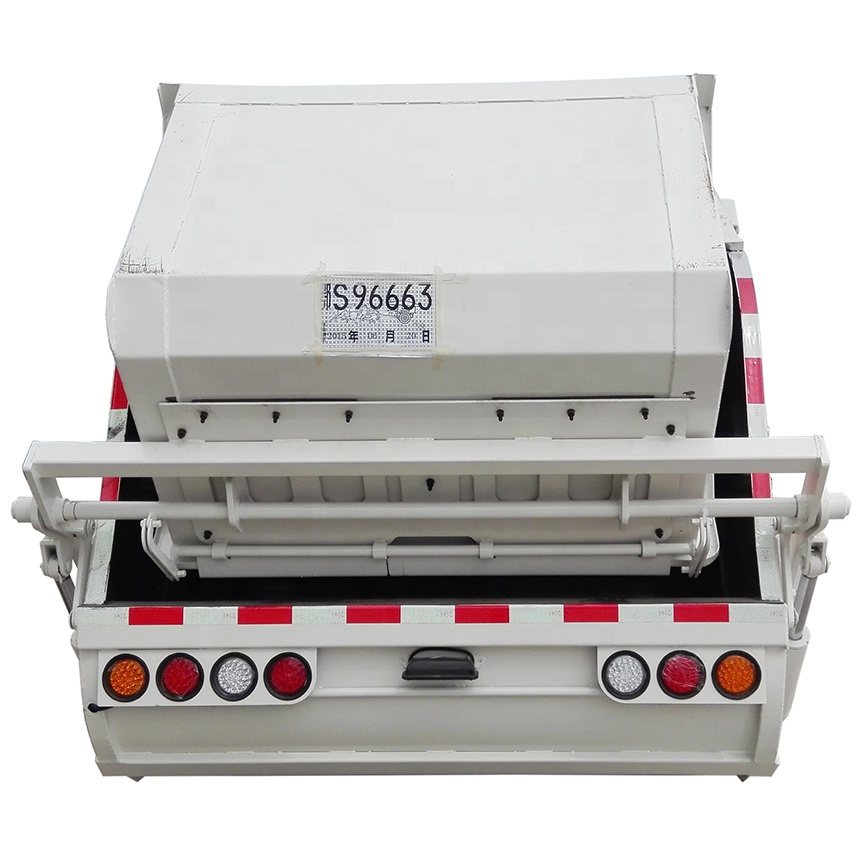

High efficient DFAC 8CBM Environmental Sanitation garbage compressed truck loading and unloading by hydraulic system
1. We produce compactor garbage truck with different capacity, 5m3, 6m3, 8m3, 10m3, 12m3, 14m3, 16m3, 18m3 and 20m3.
2. Our compactor garbage truck with different chassis brand, such as FOTON, SINOTRUCK, IVECO, SHACMAN, ISUZU, DFAC, JAC, JMC, etc.
3. We also provide compactor garbage truck body without the chassis to our clients, we produce the compactor garbage truck body to fit client’s chassis.
4. All of the operation is handled by hydraulic system.
5. The box is arc-shaped,
6. Two 240L or a 660L plastic garbage bin can be hung onto the turnover mechanism to pour the garbage into the hopper
7. The garbage in the hopper is squeezed and pushed into the chamber box.
8. The hopper can be lifted by hydraulic system to unload the garbage.
Compressed garbage truck is highly efficient. it’s used in the municipal waste collection.
Specification
|
Product Name
|
8m3 garbage compactor
|
|
Material
|
4mm carbon steel
|
|
Capacity
|
8m3
|
|
Dimension
|
5800x2100x2300mm
|
|
Weight:
|
4650kgs
|
|
Hopper Volume
|
1.0m3
|
|
Sewage Tank Volume
|
180 Liters
|
|
Hydraulic Oil Tank Volume
|
100 Liters
|
|
Hydraulic System Pressure
|
16MPa/Bar
|
|
Electric Power
|
24V/12V
|
|
Operation System
|
Both Manual and Electric
|
|
Painting
|
as per customer’s requirement
|
Details Images
