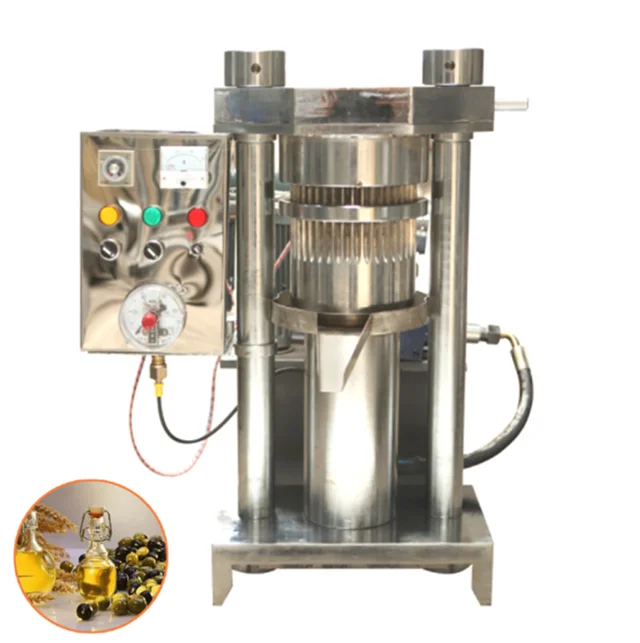

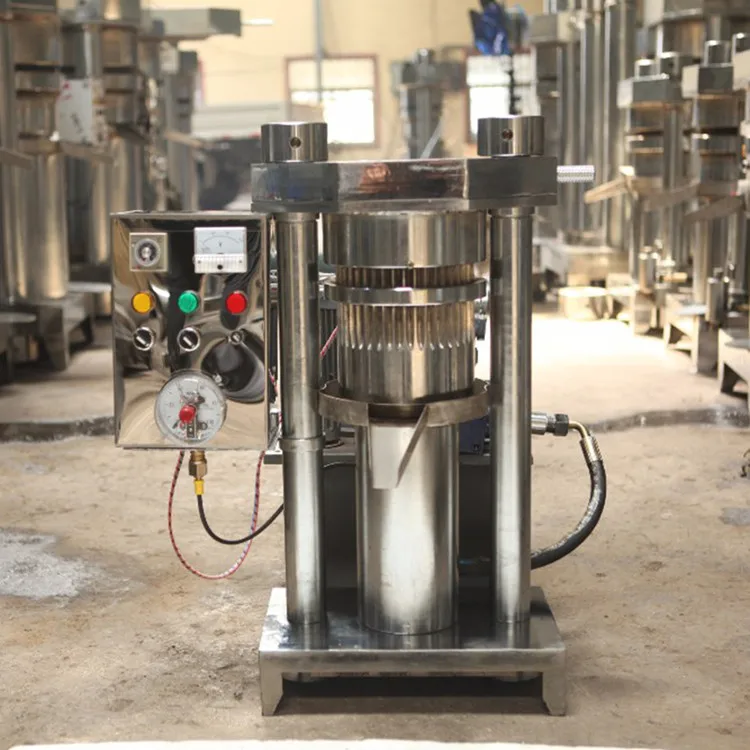

High efficiency hydraulic tweezers peanut oil coconut oil press/hot sale cold hydraulic sesame oil press machine
Products Description
Description of hot sale cold hydraulic sesame oil press machine:
Small oil press machine manual operation , low price, widely used in family and small oil factory. This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds , Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds. Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.
Structure of hot sale cold hydraulic sesame oil press machine:

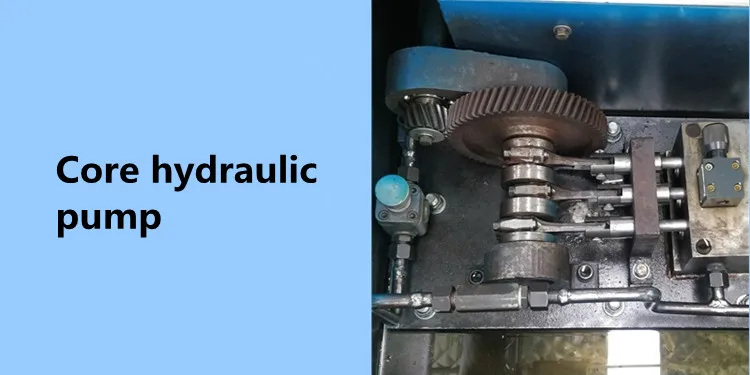

1.Main engine:Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage. 2.Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit. 3.Electronic system:Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.This machine is composed of motor, volt meter, pressure gauge, power insurance and so on. Hydraulic sesame cocoa liquor walnut oil press machine structure
Small oil press machine manual operation , low price, widely used in family and small oil factory. This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds , Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds. Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.
Structure of hot sale cold hydraulic sesame oil press machine:
1.Main engine:Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage. 2.Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit. 3.Electronic system:Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.This machine is composed of motor, volt meter, pressure gauge, power insurance and so on. Hydraulic sesame cocoa liquor walnut oil press machine structure
|
Model
|
LQ-6YZ150
|
|
Heating method
|
Electric
|
|
Voltage
|
220V/380V
|
|
Power
|
750W
|
|
Product speed
|
10kgs/h
|
|
Material
|
Stainless Steel
|
|
Machine Size
|
705MM*800MM*785MM
|
|
Weight
|
250kgs
|
|
Model
|
LQ-6YZ150
|
LQ-6YZ180
|
LQ-6YZ230
|
LQ-6YZ320
|
||
|
Machine Size
|
705mm*800mm*785mm
|
800mm*650mm*1100mm
|
900mm*780mm*1450mm
|
1000MM*1000MM*1500MM
|
||
|
Weight
|
250kgs
|
530kgs
|
880kgs
|
1320
|
||
|
Pressure
|
1500KN
|
1600KN
|
2200KN
|
3000KN
|
||
|
Electric heating coil power
|
0.75KW
|
1KW
|
1KW
|
2KW
|
||
|
Heating ring to control temperature
|
60~100℃
|
70~100℃
|
||||
|
Capacity
|
2kgs
|
4kgs
|
8kgs
|
18kgs
|
||
Details Images
