High accuracy digital lab 1kn textile rubber nonwoven universal testing machine with great price
ر.س14,615.22

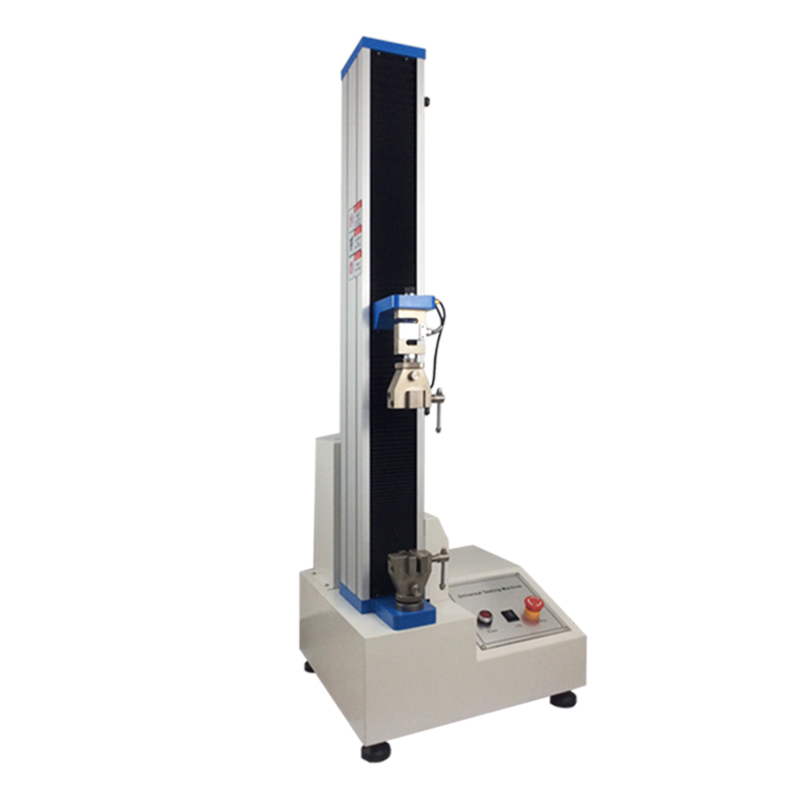

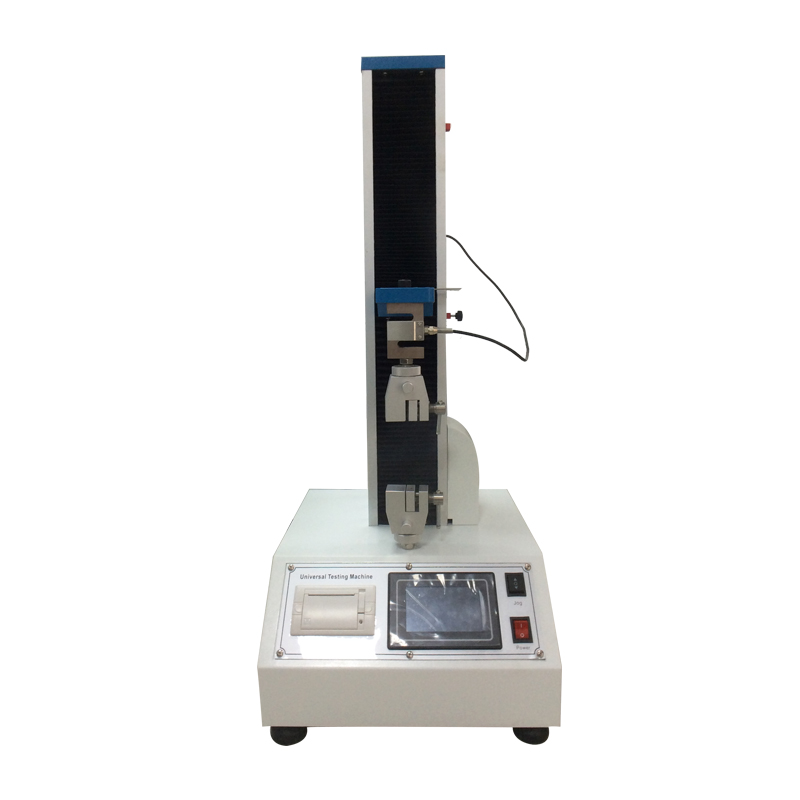

1kn Single column tensile testing machine (touch screen control)
Product Description
| structure type: | Single arm structure |
| Maximum test force (N): | 1000N |
| Test force level: | Level 1 |
| Test force measurement range: | 2%–100%FS |
| Test indication relative error: | ±1% of the indicated value |
| Force resolution: | 1/100000 |
| Displacement measuring device: | Photoelectric encoder |
| Displacement indication relative error: | ±1% of the indicated value |
| Displacement resolution (mm): | 0.01 |
| Displacement rate (mm/min): | 1-500 stepless speed regulation |
| Safety protection device: |
Mechanical limit protection and software overload protection |
| Effective stretching space (mm): | 400 |
| Stretching fixture: | According to material selection |
| Mainframe dimensions (mm): | 420×280×680 |
| Host power: | 0.3KW/AC220V±10% |
| Host weight (KG): | 60 |
