Automatic Paper Cup Paper Bowl Making Machine Plastic Bowl Plastic Cup Injection Molding Forming Machine

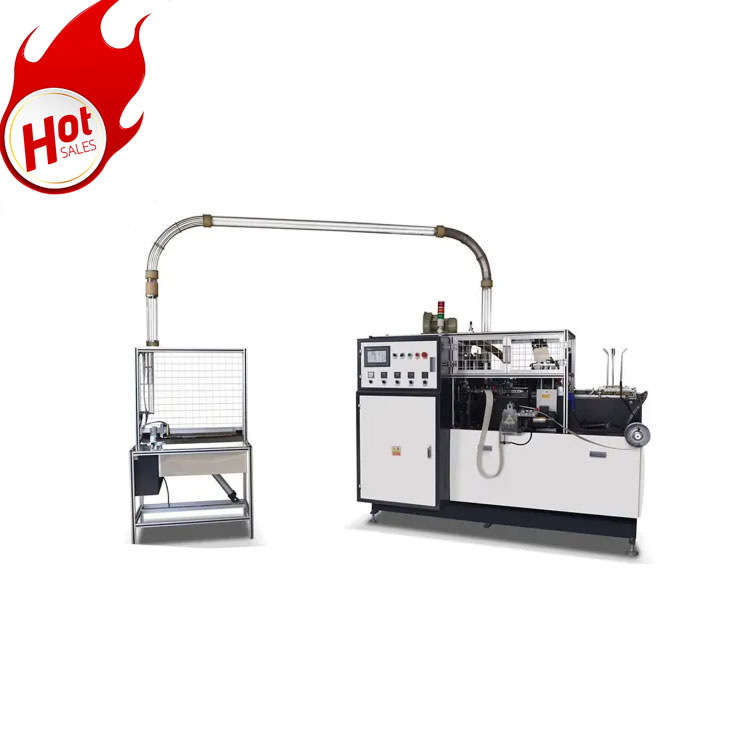

Yugong paper bowl/ cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers.
Characteristic:
Intelligent Paper Cup Jacket Machine adopts open-type,intermittent division design,gear drive,longitudinal axis design,so they can reasonably distribute each part function.The whole machine adopts spray lubrication.PLC system controls the whole cups forming process.By adopting photoelectric failure-detecting system and servo control feeding,our machine’s reliable performance is guaranteed,thus offering a rapid and stable operation.The maximum speed can reach 100pcs/min,and it is suitable for producing cup jacket forming which is widely used in milk-tea cup,coffee cup,ripple cups,noodle bowl and so on.
Features:
1. High efficiency, energy saving, safety and environmental protection, high qualified rate of finished products.
2. The whole machine integrates sheet feeding, heating, stretching, forming, trimming, cup blowing, and waste rewinding at one time, which greatly saves labor costs and increases product profits.
3. The advantages of stable operation, low noise, strong clamping force and high yield.
4. The whole machine is controlled by PLC touch screen, and the operation is simple and convenient. , The cam runs smoothly, sturdy and durable, and the production speed is fast. Different plastic products can be produced by installing different molds to achieve the purpose of one machine with multiple uses.
Parameter:
| Mould Driving Method | Cam |
| Approximate Max. Forming Area | 660 x 300 mm |
| Approx. Running Speed | 15-30 Stroke / min approx. during production |
| Approx. Sheet width required for feeding | 500 – 660 mm in rolls. |
| Mode of cutting arrangement | In mould automatic |
|
Sheet thickness Range |
0.20 – 2.0 mm |
| Material | PP, PS, PET, PVC,PLA |
|
Max. Draw depth, i.e. cup length |
140 mm (Could be special design) |
| Oil Pump Motor Power |
11KW, 6P |
| Sheet Feeding Motor | 2.2KW |
| Max. Sheet roll diameter | 800 mm |
|
Heating arrangement |
Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
| Temperature Controller & Thermocouple | PID K-Type |
| Type of Mould | Multi cavity 1 – 3 row. |
| Approx. Electrical Consumption | 45KW/hr |
| Approximate Dimension | L3100×W1500×H2500 (mm) |
| Approximate Weight | 4000Kg |
This machine is mainly used to produce disposable plastic containers: such as water cups, beverage cups, jelly cups, yogurt cups, packing bowls, instant noodle bowls, plastic cup lids, square boxes, fruit trays and medicine, light industry, textiles, tourism, toys And other plastic packaging products.
The raw materials are suitable for a wide range, such as PS, PP, PVC, PET, ABS and other plastic sheets can be processed.
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
1. Reply within 24 hours, professional answers.
2. We provide free video guidance and telephone guidance.
3. During the warranty period, any quality appears, we refund it for free.
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipment and so on.
We believe that good quality can give us survival, thus we only provide you with top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
1. Are you trading company or manufacturer?
We are original equipment manufacturer.
2. How long is your delivery time?
It depends on the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.
3.Do you provide samples? Is it free or extra?
Yes, we can offer you the sample machine. But it’s not free. You need to pay for the sample and the cost of freight.
4.What is your terms of payment?
We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment<=USD 5000, 100% in advance. Payment>=USD 5000, 30% T/T in advance, balance before shipment.
5. Can I get the sample to check?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
