Name: Heavy Duty Floor Wood Flooring Edge Grinder Double Disc Remote Control Dust Epoxy Concrete Grinder Machine Polisher Reddi
SKU: 211261340019181
Availability: InStock

Heavy Duty Floor Wood Flooring Edge Grinder Double Disc Remote Control Dust Epoxy Concrete Grinder Machine Polisher Reddi

ر.س16,769.14

G4 concrete floor grinder

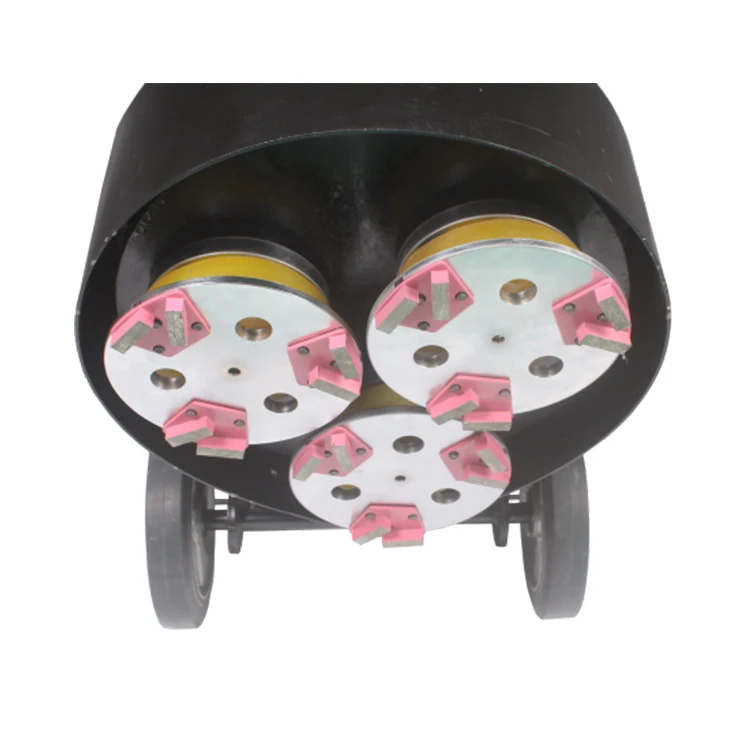

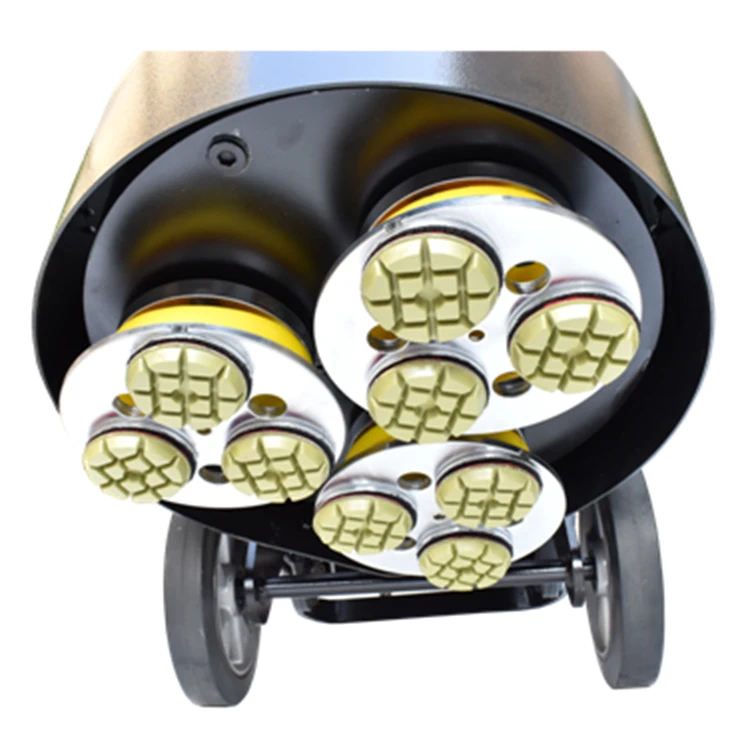

A heavy duty and professional concrete floor grinder, with the planetary design, driven by gears. The planetary gearbox has three output axis, and each of them has a grinding disc. In this way, the gearbox and three grinding disc could rotate towards converse direction like a satellite or planetary.

Model	G4A	G4B
Power Output	5.5hp / 4kw	5.5hp / 4kw
Inverter Power	5.5hp / 4kw	5.5hp / 4kw
Voltage	3 Phase * 380-440v	1 Phase * 220-240v
Frequency	50/60hz	50/60hz
Current	11A	15A
Motor Speed	300-1600rmp	300-1600rmp
Grinding cover width	500mm	500mm
Working Width	480mm	480mm
Disc Diameter	200mm*3pcs	200mm*3pcs
No.of Tools	9 pcs	9 pcs
Net weight	191kg	191kg
Water tank	20L	20L
Dimension	970500800mm	970500800mm

Gearbox is the soul part for concrete grinder. Therefore, its design, material, process, assembly are critically important. G4 gearbox is all made of aluminum alloy, mold and casting The gears are designed by experienced gear experts and processed by Reischauer.

One of design principle is easy to maintain

So every parts are assembled and dissembled like building block, with a few common tools, you could enter into the machine heart easily. The screws and nuts are high strength 10.8 degree, big aperture, no slip.

Packaging: Pallet packing
Size（mm）	970(L)500(W)800(H)
Weight	191kg/Unit
Package Details	The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the models Nos, load more quantities to save space when shipped by container.
