Product Description
Specification
OBD + GPS 2 in 1 dual working system , which can work on all vehicles

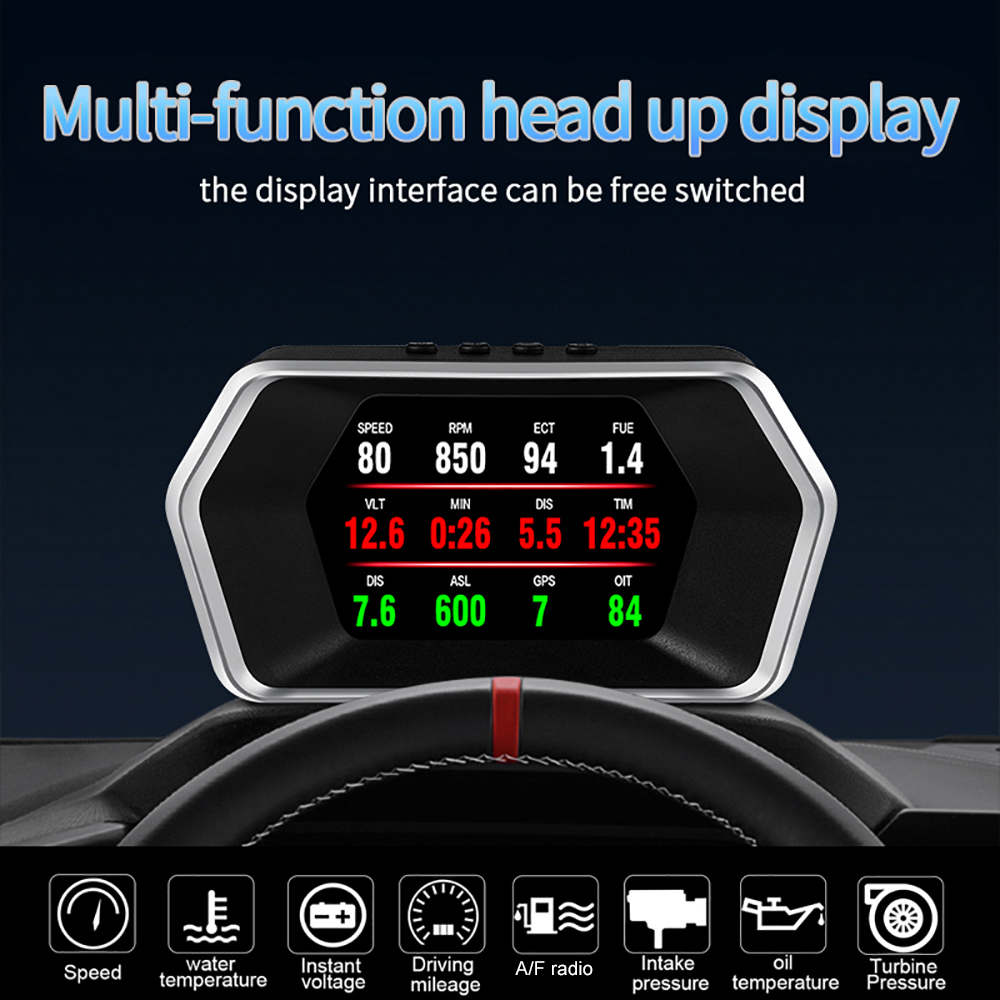

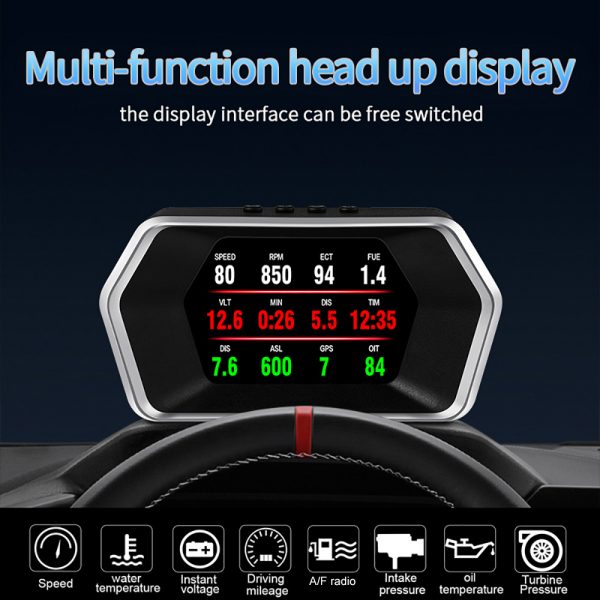

Function Display
OBD mode information display: vehicle speed, water temperature, voltage, fuel consumption, RPM, single mileage, total cumulative mileage travel time, system time intake pressure, oil temperature, air-fuel ratio turbine pressure, intake pressure acceleration test brake test read data stream
Alarm: Overspeed alarm Speed alarm, High water temperature alarm, Low voltage alarm, Engine fault alarm Clear fault code switching between kilometers and miles, Celsius and Fahrenheit switch freely
GPS mode information display: driving speed, satellite numbers, driving direction, single mile voltage, acceleration test, brake test
Alarm: Overspeed alarm Speed alarm, High water temperature alarm, Low voltage alarm, Engine fault alarm Clear fault code switching between kilometers and miles, Celsius and Fahrenheit switch freely
GPS mode information display: driving speed, satellite numbers, driving direction, single mile voltage, acceleration test, brake test
Alarm: Overspeed alarm, Low voltage alarm, Free switching between kilometers and miles
Features
1. Stereoscopic imaging. Display the information three-dimensional through the translucent semi-reflective lens. No reflection, zero ghosting, and clearer display during daytime.
2. Exquisite and unique design, free from external light, no film is needed, no unnecessary reflection picture, plug and play, easy to operate.
3. Powerful and practical function display, such as speed, water temperature and voltage, etc. HUD could eliminate the fault code
4. Early warning of the high water temperature and low voltage to avoid Car breakdown.
5. OBD2+GPS dual mode is suitable for all car mod
2. Exquisite and unique design, free from external light, no film is needed, no unnecessary reflection picture, plug and play, easy to operate.
3. Powerful and practical function display, such as speed, water temperature and voltage, etc. HUD could eliminate the fault code
4. Early warning of the high water temperature and low voltage to avoid Car breakdown.
5. OBD2+GPS dual mode is suitable for all car mod
Kindly Attention:
System selection: The OBD2 function is only suitable for cars that comply with the OBD II protocol, please switch to GPS system when OBD mode is not available.
OBD2 mode working voltage: 11V~18VDC (12vdc/200mA), when voltage is higher than 24V, please use a USB cable for GPS mode.
|
Technical Parameters
|
Value
|
|
|
Material
|
PC + ABS
|
|
|
System
|
OBD2+GPS dual mode
|
|
|
Working temperature
|
-40°C -80°C
|
|
|
Relative humidity
|
10%-95%
|
|
|
Barometric press
|
86-106KPa
|
|
|
Environmental noise
|
≤60dB(A)
|
|
|
Working voltage
|
11~18VDC (12VDC/200mA)
|
|
|
Sleep Current
|
< = 30MA
|
|
|
Display Way
|
Virtual image reflection
|
|
Company Profile
Payment & Shipping
FAQ
OBD2 FAQ:
1. No function is displayed, no power
Check whether the OBD cable is tight connection, pull down repeatedly to confirm, please try it on another car if still not workable, analysis if it is an error from OBD diagnostic interface, if yes, please repair it and connect the device again.
2. Only the car voltage displays and be automatic power off after 30 second
(1) This product is only available for OBDII and EOBD cars when it is in OBD2 mode
(2) This product OBD2 mode does not support OBD I and JOBD
(3) OBD2 is a car protocol(U.S.A Cars:2003 Other regions:2007)
(4) Switch to the GPS system using the USB cable to display, within 5 seconds of power short press the‘>’key to select the GPS system.
GPS FAQ：
1. The screen is not displayed, no power
Check the OBD cable or car charger is in tight connections, try it several times to make sure, or plug a USB cable into the cigarette lighter
2. No speed
GPS will take a short of time to search the satellites, please drive the car to the open road to get 5 and more satellites so that Gauge can be used normally
3. HUD cannot automatically power on or repeatedly extinguish during driving
Setting the shutdown voltage to 13.0V or 12.8V(in OBD mode)
Setting the shutdown voltage to 13.0V or 12.8V(in OBD mode)
