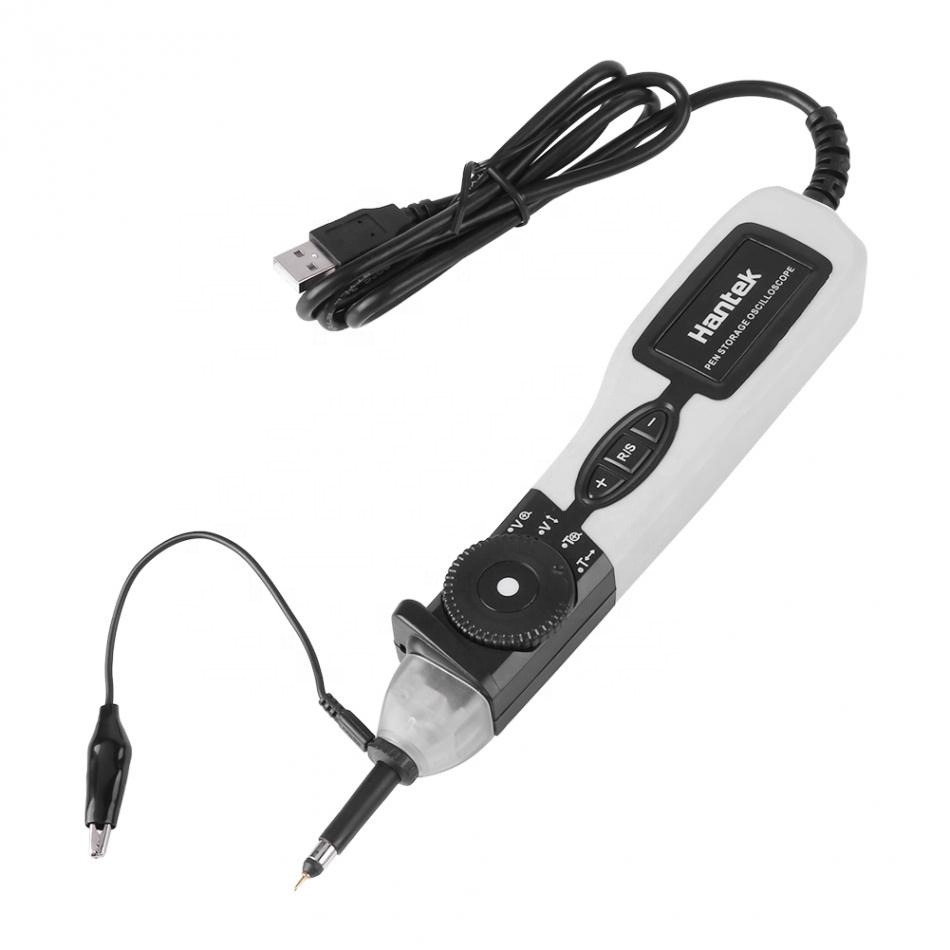

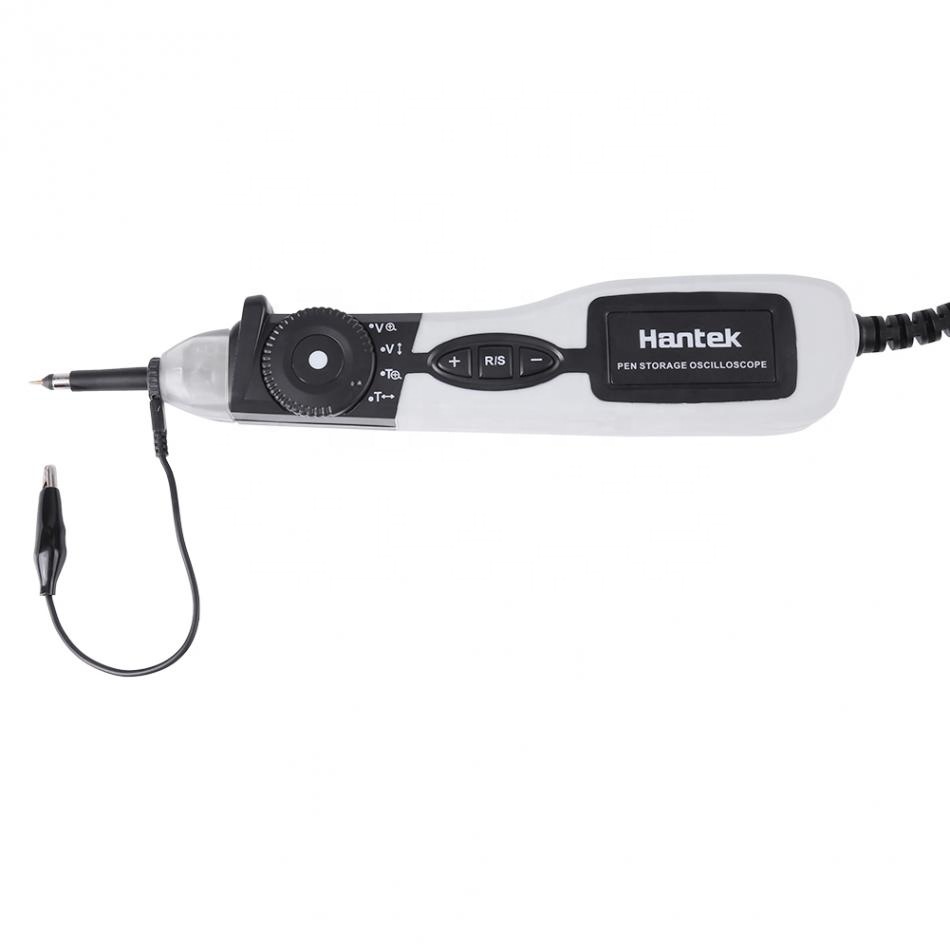

Features:
- Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
- Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
- Built-in LED Light, Providing Better Light for User’s Convenient Operation in Dark Environment;
- Light Weight and Portable. Suitable for Human Body’s Design;
- DVM Function, Real-time Display the Voltage Measurement Results;
- 20MHz Bandwidth. Meet the Requirements of Measurement;
- Different Kinds of Language Available. 20 Types of Auto Measurement Function, Pass/Fail Function;
- Operating System:Windows NT,Windows2000/XP,WIN7/8;
- Possible to Connect to Laptop Directly. High Cost Performance.
|
Vertical |
|
|
Channel |
1 |
|
Bandwidth |
20MHz |
|
Input Impedence |
1MΩ |
|
Input Sensitivity |
20mV/div to 50V/div |
|
Input Coupling |
DC/AC/GND |
|
Vertical Accuracy |
±3% |
|
Resolution |
8 bits |
|
Memory Depth |
Maximum 1M/CH |
|
Max. Measurement Voltage |
±50V(Without any attenuation) |
|
Input Protection |
100V (DC+AC Peak) |
|
Horizontal |
|
|
Max. Sample Rate |
96MSa/s |
|
Time Base Range |
1ns/div to 5000s/div(Step by 1-2-5) |
|
Trigger |
|
|
Trigger Source |
CH1 |
|
Trigger Type |
Edge Trigger |
|
Cursor and Measurement |
|
|
Voltage Measurement |
Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, |
|
Time Measurement |
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
|
Math |
+,- , x,÷, FFT |
|
Voltage Range |
20mV to 20V/div @ x 1 probe |
|
Others |
|
|
FFT |
Rectangular, Hanning, Hamming, Blackman |
|
Auto Set |
Yes |
|
Interface |
USB 2.0 |
|
Power Supply |
USB Power Supply |
|
Volume |
200x120x 35(mm) |
|
Weight |
1Kg(After Packing) |
Package: Normally we use the standard exporting packaging. We also can according to clients’ request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
3. By Sea: Delivery from the shenzhen sea port
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing
Shenzhen Yuanqi Trading Company Adhering to the exquisite product design and manufacturing process of European industrialized countries, we provide you with a complete range of products with complete specifications and reliable equipment matching combination. Our company has always regard quality as the paramount goal.We are make efforts in order to create a high-level environment, the introduction and absorption of advanced domestic technology and production equipment, the establishment of a scientific and standardized modern enterprise management system and quality system. We equipped with large-scale spot warehouses, sales and service network throughout the country.If you have any questions about the products and services, please feel free to contact us.
Q1:What’s the MOQ?
A: MOQ: 1 pc
Q2:How to place the order?
A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.
Q3:What’s the payment term?
A: We can accept T/T, Western Union and PayPal etc.
Q4:What’s the lead time?
A: Standard within 7 working days. Customized need 15-20 working days.
