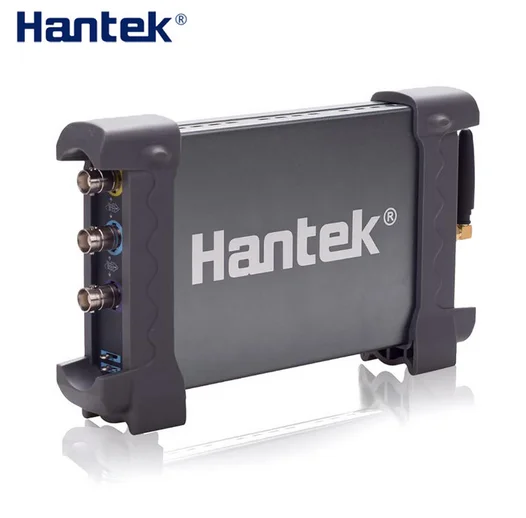

Hantek IDS1070A Oscilloscope Virtual Oscilloscope 2 Channel 70MHz 250MSa / s Wireless WIFI Connection

Hantek IDS1070A Oscilloscope Virtual Oscilloscope 2 Channel 70MHz250MSa / s Wireless WIFI Connection

Features:

• For i**Phone/i**Pad/Android/Windows Oscilloscope, Multi-touch Operation.
• WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
• Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.
• 70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
• Can be connected with tablet and Phone at the same time. When operating on tablet, it can also be observed on Phone.
• Good mechanical design. The outer case is made by the same material with tablet – Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
• Small size which is convenient for traveling.
• Software Support:IOS,Android(Unpublished),Win10,Win8, Win7, Windows NT ,VISTA, etc.
• More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

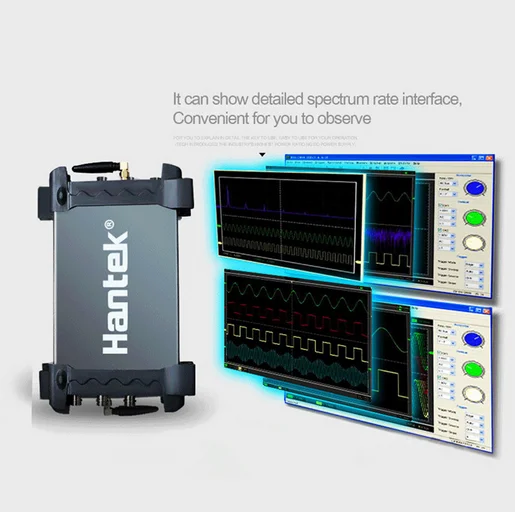

• FFT spectrum analyzer
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• The waveform data can be output as EXCEL, BMP, JPG according to time and voltage

Specifications:

Model                                     IDSO1070A

Bandwidth                               70MHZ

Channel                                  2 CH

Real-time Sampling Rate        250MSa/s(singal channel), 125MS/s(two channels)

Sampling Mode                       Sampling, Vmax, Vms

Average Sampling                   Average waveform, times 4,8,16,32,64,128

Memory Depth                         6k

Rise time                                 <=5ns

Time Base Precision                +/-50ppm

Time Base Range                   45s/div-500s/div(1-2-4 sequences)

Input Coupling                         DC,AC,GNO

Input Impendance                    Resistance:1Mohm,Capacitgance:25pF

Probe Attenuation                    1*,10*,100*,1000

Coefficient Setting

Max Input Voitage                     35Vpk(DC*peak)

Waveform Interpolation            Step, Linear, Sin(x)/x

Input Sensitivity                        10mV/div-5V/div

Vertical Resolution                   8bit

Vertical Displacement Range   10mV-5V/div@*1probe; 100mV-50V/div@*10 probe

                                                1V-500V/div@*100 probe; 10V-5KV/div@*1000 probe

Position Range                         +/-4 division

Low Frequency Response         <=10HZ(at input BVC)

DC Gain Accuracy                      +/-3%

Bandwidth Limit                           20MHz

Trigger Mode                               Auto,normal singal

Trigger Type                               Edge, Altermative

Trigger Precision                         +/-4 division

Trigger Range                             +/-4V

Trigger Sensitivity                        0.02 division

Trigger Source                             CH1, CH2, EXT

Wave form Signal Process           +,-,x,÷,FFT, invert

Temperature                               Operating:0C-40C;Non-operating:-20C-60C

Humidity                                      Below 30C,<=9%relative humidity:35C-40C,<=60% relative humidity

Cursors Measurement                  Cross, Trace, Honzontal, Vertical

Volume                                         190mm*100mm*35mm

Weght                                            0.7KG

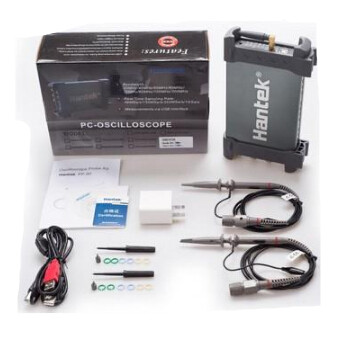

Accessory                                    2 passive probes.PP80
