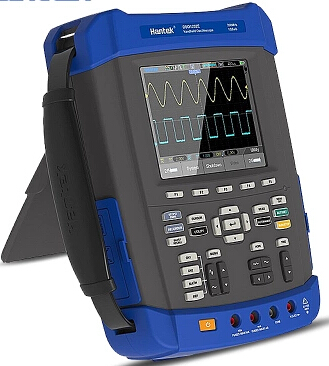

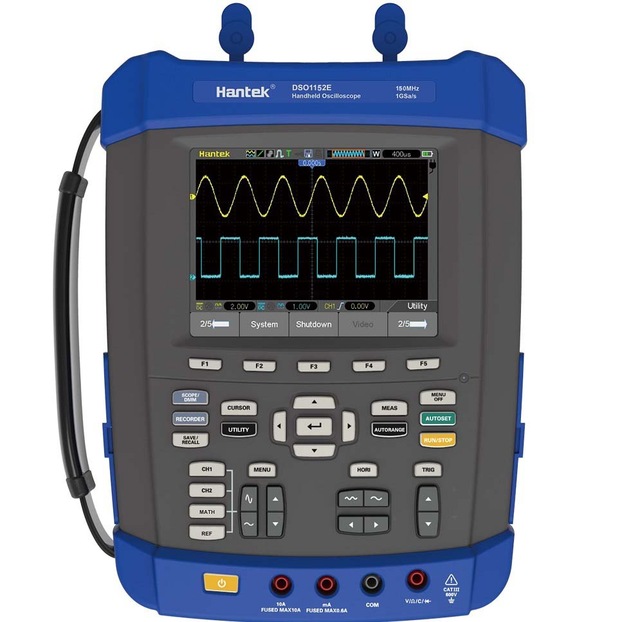

Hantek DSO1202E 5 in 1 6000 Counts DMM Digital FFT Spectrum Analyzer with Frequency Counter 200MHz 2 CH Handheld Oscilloscope
Features:
- High Bandwidth 200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
- 2M Memory Depth.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design –More clear, More Detailed
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
- Easy-to-use pop-up menu with built-in multi-language help system.
- 32 Automatic Measurements.
- Waveform Math: Add, Subtract, Multiply, and Divide.
- Store and recall over.
- Automatic cursor tracking measurements.
- XY Mode.
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
- Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
- Pass/Fail function compares a stored waveform to an unknown input.
- Average Mode for smoothing waveforms.
- Square Wave Output (2V, 1kHz) for probe adjustment.
- USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.
- Dimensions (mm): 260(L)x220(W)x75(H), be carried easily.
Specification :
| Model | DSO1202E | |||
| Acquisition | ||||
| Sample Modes | Real-Time Sample | |||
| Acquisition Modes | ||||
| Normal | Normal data only | |||
| Peak Detect | High-frequency and randon glith capture | |||
| Average | Wavefom Average, selectable 4,8,16,32,64,128 | |||
| Inputs | ||||
| Inputs Coupling | AC, DC, GND | |||
| Inputs Impendance | 1MΩ±2% 20pF±3pF | |||
| Probe Attenuation | 1X, 10X | |||
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |||
| Maximum Input Voltage | CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×) |
|||
| Horizontal System | ||||
| Sample Rate Range | 1GS/s | |||
| Waveform Interpolation | (sin x)/x | |||
| Record Length | 2M | |||
| SEC/DIV Range | 2ns/div~2000s/div, in a 2, 4, 8 sequence | |||
| Sample Rate and Delay Time Accuracy |
±50ppm over any ≥1ms time interval | |||
| Scanning Speed Range | 2ns/div to10ns/div; (-4div×s/div) to 20ms; | |||
| Delta Time Measurement Accuracy (Full Bandwidth) |
Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 |
|||
| Vertical System | ||||
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously | |||
| Volts Range | 2mV/div to 100V/div at input BNC | |||
| Bandwidth | 200MHz | |||
| Rise Time at BNC( typical) | 1.8ns | |||
| Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled |
±400V(100V/div-20V/div); ±50V(10V/div-5V/div) ±40V(2V/div-500mV/div); ±2V(200mV/div-50mV/div) ±400mV(20mV/div-2mV/div) |
|||
| Math | +, -, *, /, FFT | |||
| FFT | Windows:Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point | |||
| Bandwidth Limit | 20MHz | |||
| Low Frequency Response (-3db) | ≤10Hz at BNC | |||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 100V/div to 10mV/div. ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
|||
| DC Measurement Accuracy, Average Acquisition Mode |
Measurement Type: Average of ≥16 waveforms with vertical position at zero Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected. Measurement Type: Average of ≥16 waveforms with vertical position not at zero Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. |
|||
| Volts Measurement Repeatability, Average Acquisition Mode |
Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions | |||
| Trigger System | ||||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | |||
| Trigger Source | CH1, CH2, AC Line | |||
| Trigger Modes | Auto, Normal, Single | |||
| Coupling Type | DC, AC, HF Reject, LF Reject, Noise Reject | |||
| Trigger Sensitivity (Edge Trigger Type) |
DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; AC: Attenuates signals below 10Hz ; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz. |
|||
| Trigger Level Range | CH1/CH2: ±8 divisions from center of screen; | |||
| Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns | CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; | |||
| Set Level to 50%(typical) | Operates with input signals ≥50Hz | |||
| Video Trigger | ||||
| Video Trigger Type | CH1, CH2: Peak-to-peak amplitude of 2 divisions; | |||
| Signal Formats and Field Rates | Supports NTSC, PAL and SECAM broadcast systems for any field or any line | |||
| Holdoff Range | 100ns ~ 10s | |||
| Pulse Width Trigger | ||||
| Pulse Width Trigger Mode | Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse | |||
| Pulse Width Trigger Point | Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width |
|||
| Pulse Width Range | 20ns ~ 10s | |||
| Slope Trigger | ||||
| Slope Trigger Mode | Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope | |||
| Slope Trigger Point | Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. |
|||
| Time Range | 20ns ~ 10s | |||
| Overtime Trigger | ||||
| Over Time Modee | Rising edge or Falling edge | |||
| Time Range | 20ns ~ 10s | |||
| Alternative Trigger | ||||
| Trigger on CH1 | Internal Trigger: Edge, Pulse Width, Video, Slope | |||
| Trigger on CH2 | Internal Trigger: Edge, Pulse Width, Video, Slope | |||
| Trigger Frequency Counter | ||||
| Readout Resolution | 6 digits | |||
| Accuracy (typical) | ±30ppm (including all frequency reference errors and ±1 count errors) | |||
| Frequency Range | AC coupled, from 4Hz minimum to rated bandwidth | |||
| Signal Source | Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. |
|||
| Measure | ||||
| Cursor Measurement | Manual: Voltage difference between cursors: V Time difference between cursors: T Reciprocal of T in Hertz (1/T); Tracing: The valtage and time at a waveform point; |
|||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, | |||
| Scope Trendplot | 1.2M Point | |||
| General Specifications | ||||
| Display Resolution | 640 horizontal by 480 vertical pixels | |||
| Display Contrast | Adjustable (16 gears) with the progress bar | |||
| Probe Compensator Output | ||||
| Output Voltage( typical) | About 2Vpp into ≥1MΩ load | |||
| Frequency(typical) | 1kHz | |||
| Power Supply | ||||
| Supply Voltage | AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A | |||
| Power Consumption | <30W | |||
| Environmental | ||||
| Temperature | Operating: 32℉ to 122℉ (0℃ to 50℃); Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃) |
|||
| Cooling Method | Convection | |||
| Humidity | +104℉ or below (+40℃ or below): ≤90% relative humidity; 106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity |
|||
| Altitude | Operating: Below 3,000m (10,000 feet); Nonoperaring: Below 15,000m(50,000 feet) |
|||
| Mechanical | ||||
| Size | 260mmmm; 220mm; 75mm | |||
| Weight | 2.5KG(without Packing) | |||
| DMM Modes | |||
| Max. Resolution | 6000 Counts | ||
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC:600V, DC: 800V | ||
| Max. Input Current | AC: 10A, DC:10A | ||
| Input Impendance | 10MΩ | ||
| DMM TrendPlot | 1.2M Point | ||
| Range | Resolution | Accuracy | Resolution |
| DC Voltage | 60.00mV | ±1%±1 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| 800V | 1V | ||
| AC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| DC Current | 60.00mA | ±1.5%±1 digit | 10uA |
| 600.0mA | ±1.5%±1 digit | 100uA | |
| 6.000A | ±2%±3 digit | 1mA | |
| 10.00A | 10mA | ||
| AC Current | 60.00mA | ±1.5%±3 digit | 10uA |
| 600.0mA | ±1%±1 digit | 100uA | |
| 6.000A | ±1.5%±3 digit | 1mA | |
| 10.00A | 10mA | ||
| Resistance | 600 | ±1%±3 digit | 0.1Ω |
| 6.000K | ±1%±1 digit | 1Ω | |
| 60.00K | 10Ω | ||
| 600.0K | 1KΩ | ||
| 6.000M | 10KΩ | ||
| 60.00M | ±1.5%±3 digit | 100KΩ | |
| Capacitance | 40.00nF | ±1%±1 digit | 10pF |
| 400.0nF | 100pF | ||
| 4.000uF | 1nF | ||
| 40.00uF | 10nF | ||
| 400.0uF | 100nF | ||
| Attention: the smallest capacitance value that can be measured in 5nF | |||
| Diode | 0V~2.0V | ||
| ON-OFF test | <10Ω | ||
