Hantek Digital LCR Meter Hantek1833C Handheld Portable Inductance Capacitance and Resistance Measuring Tester Tools

ر.س1,333.29

Clear
Qty:
Compare

Request quotation for: Hantek Digital LCR Meter Hantek1833C Handheld Portable Inductance Capacitance and Resistance Measuring Tester Tools

Product Description



Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.

  • 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 typical test frequency (Hantek1832C) 7 typical test frequency

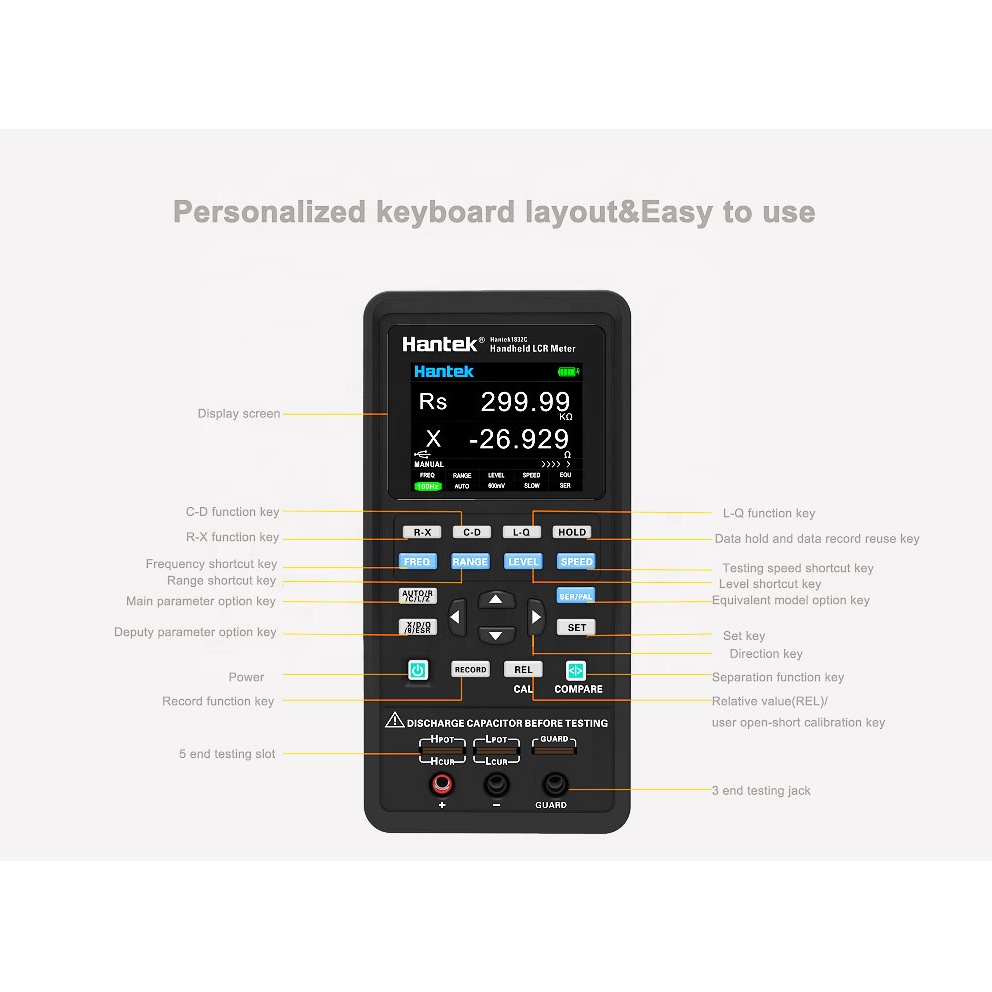

  • 2.8 inch TFT LCD, Switch between Chinese and English
  • HD display, dual display of measurement data, the result is clear
  • Support data record analysis
  • Support PC upper computer, easy to control and measure remotely
  • Test lead: 3 terminal/5 terminal switch
  • Measuring speed: high speed/intermediate speed/low speed switch
  • Range: support manual/auto switch, easy to do quick measurement
  • LCR adopted rechargeable design, Large capacity lithium battery, super standby
  • Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect
  • the machine from damage, longer use time, more comfortable measurement

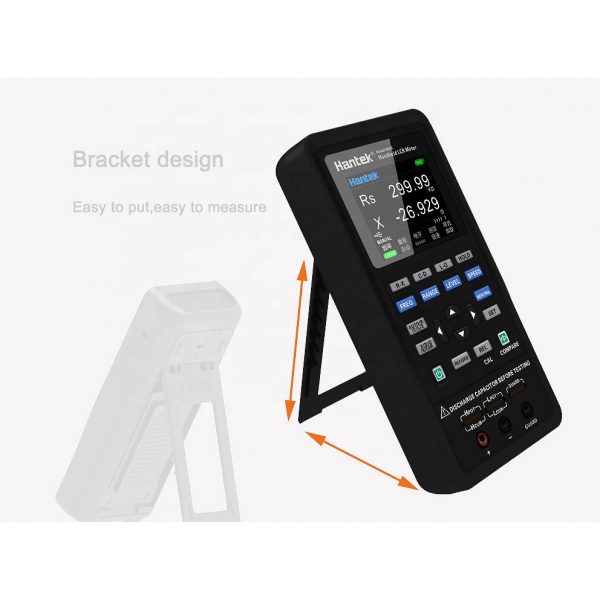

  • Bracket design, easy to put and measure

 LCR high precision  test instrument:

Model Hantek1832C Hantek1833C
Test frequency

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

40kHz

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

40kHz, 50kHz, 75kHz, 100kHz

Accuracy 0.30%
Equivalent Circuit series, parallel
Test level 0.6Vrms 0.6Vrms, 0.3Vrms
Measurement way manual, auto
Display screen 2.8 inch TFT LCD
Measurement parameters principle parameter: L/C/R/Z   deputy parameter: X/D/Q/θ/ESR
Principle parameter L/C/R/Z
Deputy parameter X/D/Q/θ/ESR
Inductance Measurement range (L) 0-2000H
Capacitance Measurement range (C) 0-20mF
Resistance  Measurement range (R) 0-20MΩ
Measurement speed high speed(4 times/s)intermediate speed(twice/s)low speed(once/s)
Reset function open circuit calibration, short-circuit calibration
Test terminal configuration 3 termianl, 5 terminal

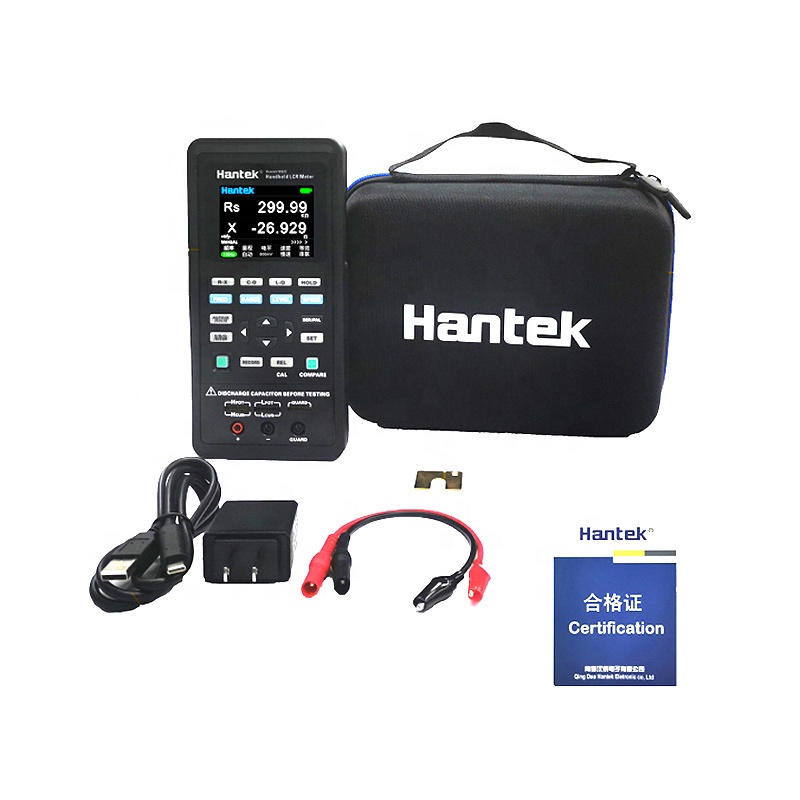

General feature standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery


Packaging & Shipping

Package: Normally we use the standard exporting packaging. We also can according to clients’ request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.

3. By Sea: Delivery from the shenzhen sea port







Our Services

1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing





Company Information

Shenzhen Yuanqi Trading Company Adhering to the exquisite product design and manufacturing process of European industrialized countries, we provide you with a complete range of products with complete specifications and reliable equipment matching combination. Our company has always regard quality as the paramount goal.We are make efforts in order to create a high-level environment, the introduction and absorption of advanced domestic technology and production equipment, the establishment of a scientific and standardized modern enterprise management system and quality system. We equipped with large-scale spot warehouses, sales and service network throughout the country.If you have any questions about the products and services, please feel free to contact us.










FAQ


Q1:What’s the MOQ?

A: MOQ: 1 pc



Q2:How to place the order?

A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.



Q3:What’s the payment term?

A: We can accept T/T, Western Union and PayPal etc.



Q4:What’s the lead time?

A: Standard within 7 working days. Customized need 15-20 working days.
