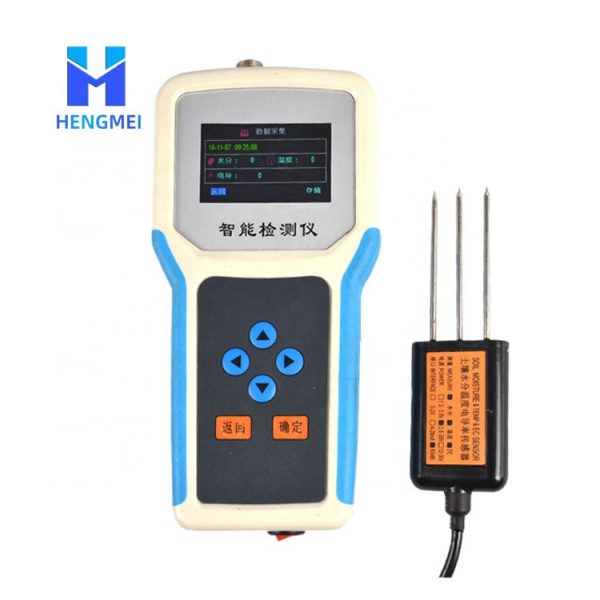

Handheld soil temperature, moisture and salinity detector 3-in-1 multi-function detector HM-WSY
Shandong Hengmei Electronic Technology Co., Ltd. has a software product design and development team, focusing on software products with independent core technology and intellectual property. Since its inception, the company has established a comprehensive agricultural information system for agriculture, agro-meteorology, plant physiology, plant protection, animal husbandry and other agro-ecological agriculture and food fields, and has become a cover for agriculture, forestry, meteorology and agricultural products testing. “One-stop provider of information technology instrument solutions.
| Soil Moisture(Soil volumetric water content) | Unit | % (m3 / m3) |
| Test sensitivity | ± 0.01% (m3 / m3) | |
| Range | 0-100% (m3 / m3) | |
| Measurement accuracy | 0-50% (m3 / m3) range) ± 2% (m3 / m3); 50-100% (m3 / m3) range) ± 3% (m3 / m3); |
|
| Resolution | 0.1% | |
| Interchange accuracy | <3% | |
| Retest error | <1% | |
| Response time | <1 second | |
| Measurement stability time | 1 second | |
| Measuring area | cylinder with a diameter of 10cm and a height of 10cm | |
| Soil temperature | Range | -40-120 ℃ |
| Measurement accuracy | ± 0.2 ℃ | |
| Resolution | ± 0.1 ℃ | |
| Exchange error | <0.2 ℃ | |
| Response time | <100mS | |
| Stabilization time | <1 second | |
| Soil salinity | Range | 0-20ms |
| Measurement accuracy | ± 2% | |
| Resolution | ± 0..1ms | |
| Moisture temperature Material characteristics: stainless steel (anti-electrolysis, can withstand long-term electrolysis, can withstand acid and alkali corrosion in the soil) | ||
| Cable: Moisture national standard shielded wire 2 meters, temperature PTFE high temperature resistant wire 2 meters. | ||
| Configurable GPS module, GPRS module, SMS module, MAX485 | ||
Outstanding performance:
.This machine is small and exquisite in size, beautiful in appearance, simple and convenient to operate, reliable in performance, and extremely convenient to carry in the field. After the host is connected to the sensor, the record can be stored manually or the sampling interval can be arbitrarily set by the host to automatically store the recorded data.
.Large-screen Chinese LCD display, track and record the value, group number, and low voltage warning of each measured environmental factor throughout. The host has a built-in large-capacity memory, which can store 100,000 pieces of data, and has automatic storage protection for power-off data.
After each sensor is inserted into the host, the host has an automatic recognition function, the sensor consistency is good, and the sensor can be combined as required. The sensor interfaces of different parameters can be converted between each other, which has no effect on the measurement accuracy.
.The instrument has multi-channel automatic detection extension function, which can realize the simultaneous detection of multiple sensors connected at the same time.
. The software of the host computer is powerful, and the data in the record can be exported to the computer through the USB interface at any time, and can be stored as an EXCE table file to generate a data curve for further analysis software for further data processing. Can be used as a basis for environmental assessment. At the same time, you can also print and upload data through the printer.
4. Scope of application:
Widely used in soil moisture detection, dry farming and water-saving irrigation, precision agriculture, forestry, geological exploration, plant cultivation, water conservancy, environmental protection and other fields.
1, aluminum alloy box packaging
2, carton packaging
3, wooden box or packaging as required
Delivery Time: Within1-35 working days after payment
Q1: How is your company?
A1.We are a leading manufacturer and supplier of soil temperature, moisture, salinity pH meter.
Q2: What is the delivery time?
A2: Pay after 1-35 working days.
Q4: What about packaging?
A4: Standard export packaging
Q5: Can I paste my brand name on your machine instead of your brand name?
A5: Yes.
Q6: What are the payment terms?
A6: Wire transfer. We can also accept other payment terms.
