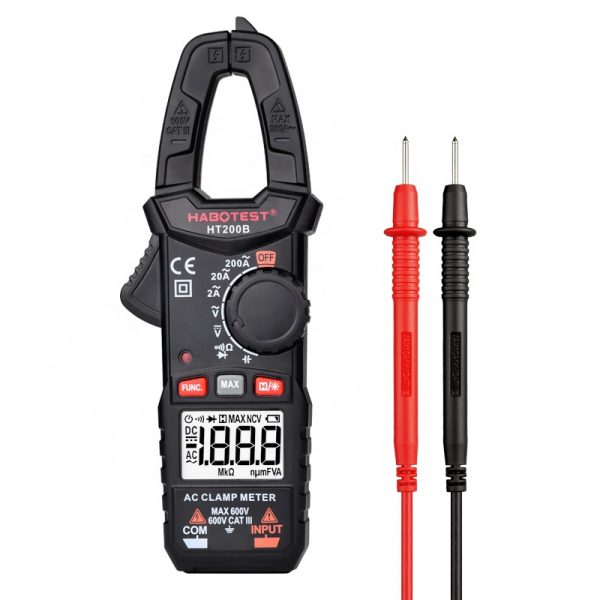

Habotest HT200B 600V 200A 2000 Counts Mini AC Clamp Meter OHMS Capacitance with Continuity Backlight
Product Description
Counts:2000 Counts
DC Voltage 2V/20V200V/600V (0.5%+5)
AC Voltage:0.00V~600V
AC Current:2A/20A/200A
Capacitance:20nF/200nF/2μF/20μF/200μF/2000μF
Resistance:200/2K/20K/200K/2M/20Mohm (1.0%+3)
Diode
Continuity
Datahold
Auto Power off
Low battery indication
Max
Backlight
| Function | HT200A | HT200B | Accuracy |
| DC Voltage | 0-600V | 0-600V | (0.5%+3) |
| AC Voltage | 0-600V | 0-600V | (0.8%+5) |
| AC Current | 2A/20A/200A | 2A/20A/200A | (2.5%+5) |
| Resistance | 2k/20k ohms | 200/2K/20K/200K/2M/20Mohm | (0.8%+3) |
| Capacitance | 20nF/200nF/2μF/20μF/200μF/2000μF | (4.0%+3) | |
| Counts | 2000 Counts | 2000 Counts | |
| Conituity | Yes | Yes | |
| Data hold | Yes | Yes | |
| Diode | Yes | Yes | |
| Double Backlight | Yes | Yes | |
| Low battery indication | Yes | Yes | |
| Auto Power off | Yes | Yes | |
| Max | Yes | Yes | |
| Power | 2*1.5V AAA | 2*1.5V AAA | |
| Weight | Aprrox.150g | Aprrox.150g | |
| Size | 164*61*30mm | 164*61*30mm | |
| Jaw Size | 25mm | 25mm | |
| Safety Rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V |
