HABOTEST HT118D True RMS Digital Multimeter Voltmeter Ammeter Manual Range NCV Non-contact Voltage Detection

ر.س339.53

Clear
Qty:
Compare

Request quotation for: HABOTEST HT118D True RMS Digital Multimeter Voltmeter Ammeter Manual Range NCV Non-contact Voltage Detection

Product Description

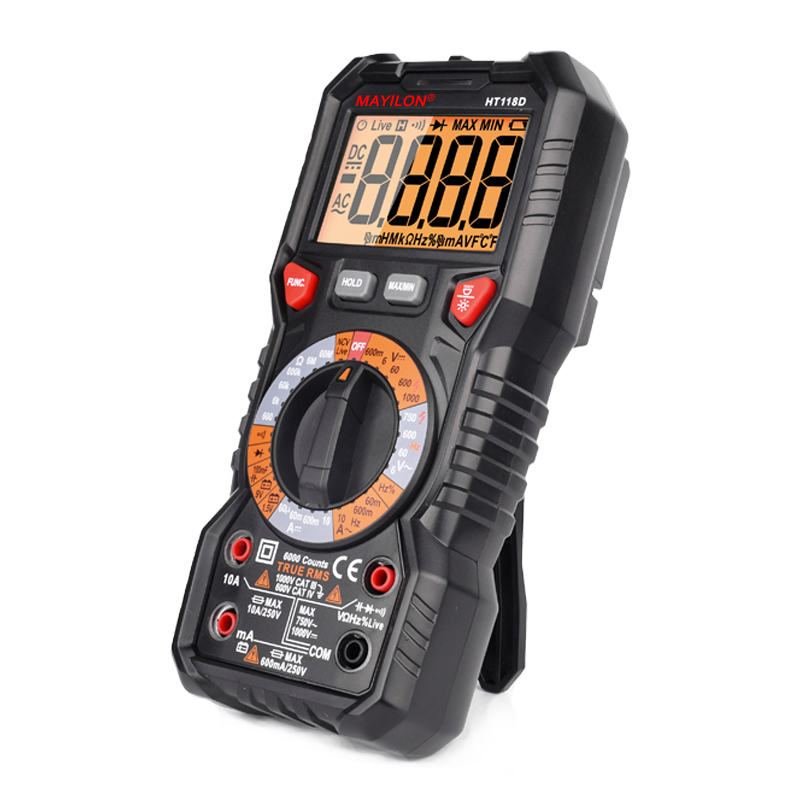

HABOTEST HT118 Digital Multimeter with True RMS

HT118D_7

HT118D_10

Specifications

Range

Accuracy

DC Voltage

600mV/6V/60V/600V/1000V

±(0.5%+3)

AC Voltage

6V/60V/600V/750V

±(1.0%+5)

DC Current



60uA/60mA/600mA

±(0.8%+3)

10A

±(1.2%+3)

AC Current



60mA/600mA

±(1.0%+3)

10A

±(1.5%+3)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.8%+3)

Capacitance



10nF/100nF/1μF/10μF/100μF/1mF/10mF

±(4.0%+3)

100mF

±(5.0%+5)

Frequency

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

Duty

1%~99%

±(1.0%+2)

Counts

6000 Counts

Auto/Manual Range

Manual

Display

LCD

Live Test (Sound and Light Alarm)

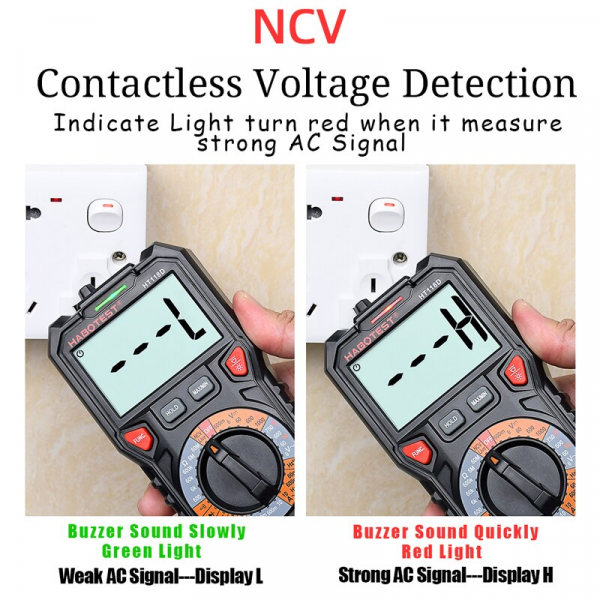

NCV (Sound and Light Alarm)

Diode Test

Continuity (Sound and Light Alarm)

MAX/MIN Hold

Data Hold

True RMS

Bandwidth

1kHz

Battery Test (1.5V/9V)

Low Battery Indication

Auto Power Off

Double Color Backlight

Input Jack LED Indicate

Flashlight

Power:                                                2X1.5V AA batteries

Weight:                                              Approx.350g

 Size:                                                   188mmX88mmX58mm

HT118D_5

HT118D_4

HT118D_3

118D  1000-8

118D  1000-9

HT118D_5

HT118D_2





Packaging & Shipping

Our Services

Company Information

Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.



We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other testing insturments for the worldwide customers to meet the global market demand, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.



Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.



For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.

Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.



Now our Daily Production is over 10,000 pcs, We are one of the pioneer domestic enterprises who sucessfully in Research, Development and production.



Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
