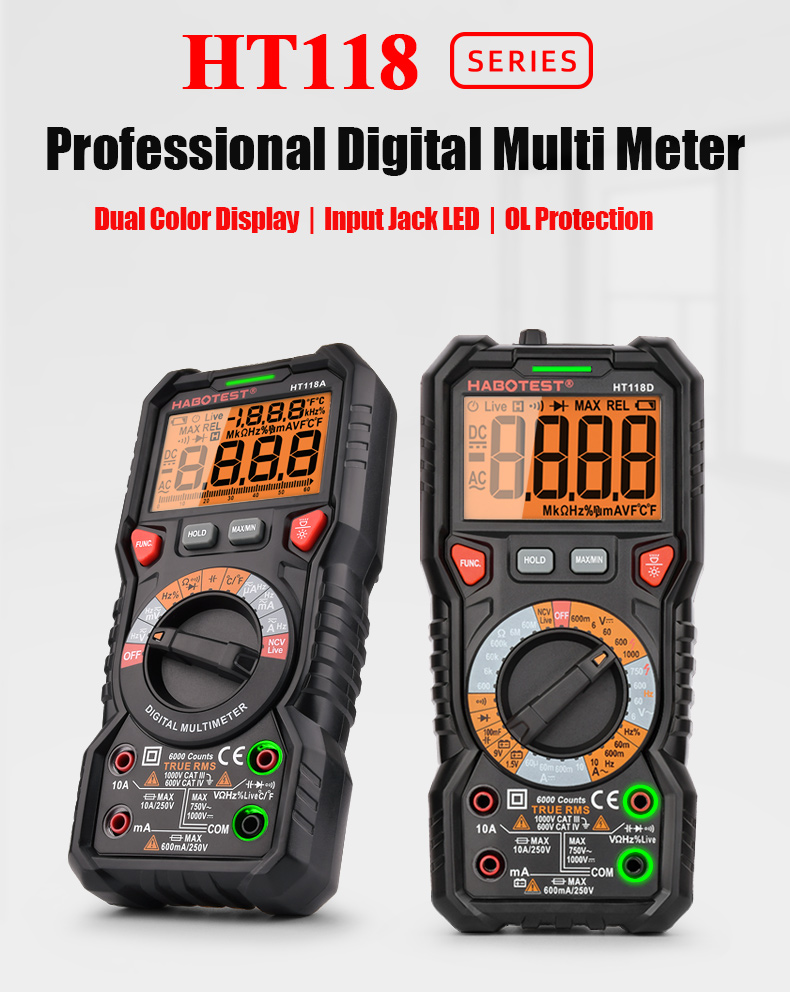

Habotest HT118D Manual Range 1000V/10A 6000 Counts TRMS Multimeter with Backlight Battery Test NCV Flashlight Capacitance and Hz
6000 Counts
AC/DC Votlage
AC/DC Current
Resitance:600Ω/6KΩ/600kΩ/6MΩ/60MΩ
Capacitance:10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
Frequency:10Hz/100Hz/1kHz/10KHz/100kHz/1MHz/10MHz
Duty
Live Test
NCV Detection
True RMS
Continuity
Max/Min Hold
Bandwidth
Low battery indication
Battery Test
Double Color backlight

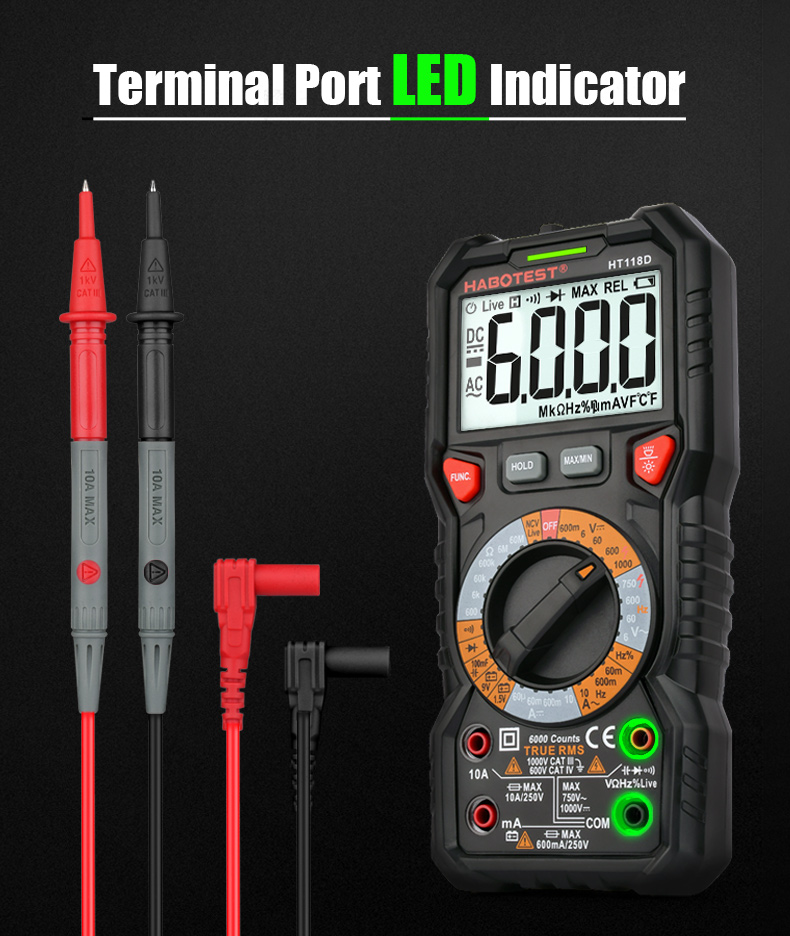

Input jack LED indicate
|
Specifications |
Range |
Accuracy |
||
|
HT118A |
HT118C |
HT118D |
||
|
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
||
|
AC Voltage |
600mV |
±(1.0%+5) |
|
|
|
6V/60V/600V/1000V |
±(1.0%+5) |
|||
|
DC Current
|
60uA/600mA/600mA |
|
±(0.8%+3) |
|
|
600uA/6000uA/60mA/600mA |
±(0.8%+3) |
|
|
|
|
6A/10A |
±(1.2%+3) |
|||
|
AC Current |
600uA/6000uA/60mA/600mA |
±(1.0%+3) |
|
|
|
60mA/600mA |
|
±(1.0%+3) |
||
|
6A/10A |
±(1.0%+3) |
|||
|
Resistance |
600Ω/6KΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
||
|
Capacitance |
10nF/100nF/1μF/10μF/100μF/1mF/10mF |
±(4.0%+3) |
||
|
100mF |
±(5.0%+5) |
|||
|
Frequency |
10Hz/100Hz/1kHz/10KHz/100kHz/1MHz/10MHz |
±(1.0%+3) |
||
|
Duty |
1%-99% |
±(1.0%+2) |
||
|
Temperature (℃/℉) |
-40℃~1000℃,-40℉~1832℉ |
±(1.0%+3) |
NO |
|
|
Counts |
6000 Counts |
|||
|
Auto/Manual Range |
Auto |
Manual |
||
|
Display |
LCD Dual |
LCD |
||
|
Bargraph |
Yes |
No |
||
|
Live Test |
Sound and LED alarm |
|||
|
NCV |
Sound and LED alarm |
|||
|
Diode Test |
Yes |
|||
|
Continuity |
Yes |
|||
|
Max/Min Hold |
Yes |
|||
|
Data hold |
Yes |
|||
|
True RMS |
Yes |
|||
|
Bandwidth |
1kHz |
|||
|
Battery Test(1.5V/9V) |
No |
Yes |
||
|
Low Battery Indication |
Yes |
|||
|
Auto Power off |
Yes |
|||
|
Double Color backlight |
Yes |
|||
|
Input Jack LED Indicate |
Yes |
|||
|
Work light |
Yes |
|||
|
Power |
2 x 1.5V AA Battery |
|||
|
Weight |
Approx.350g |
|||
|
Size |
188mmX88mmX58mm |
|||
|
Safety Rating |
EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CATIV 600V |
|||
