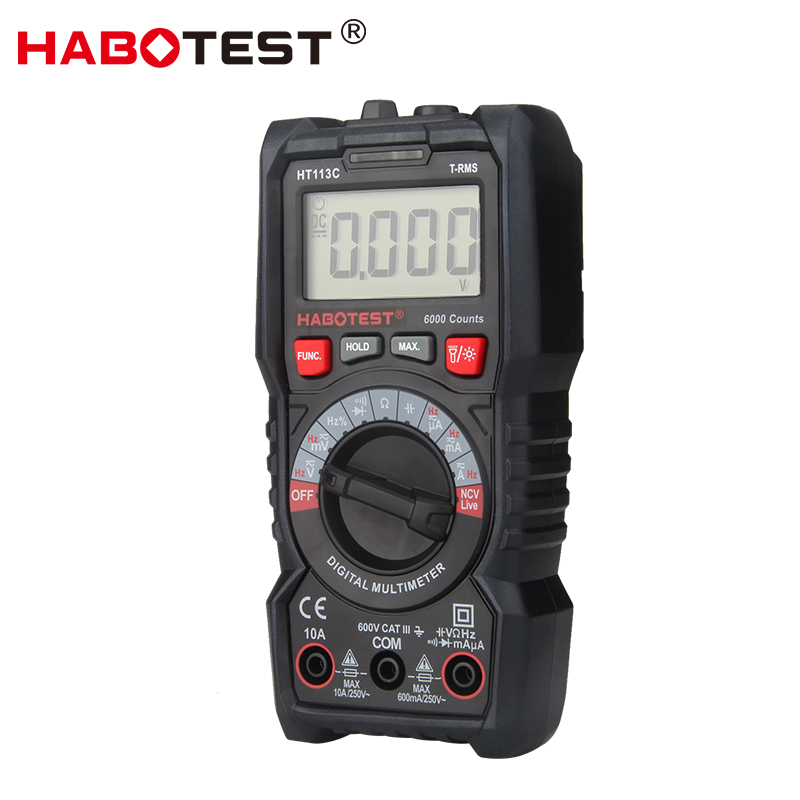

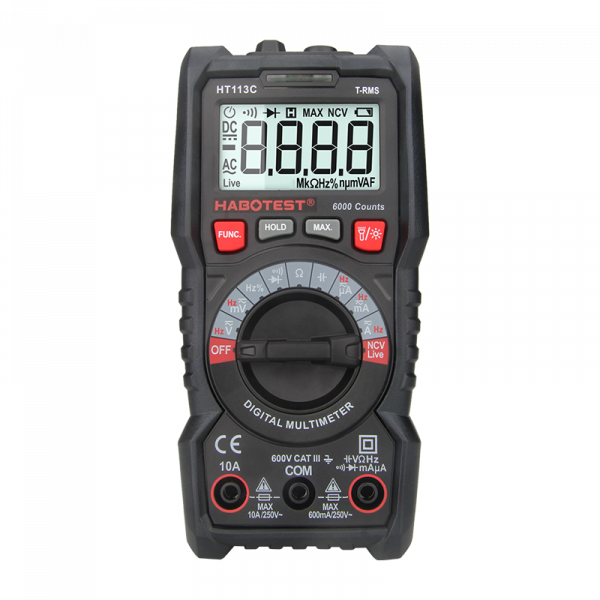

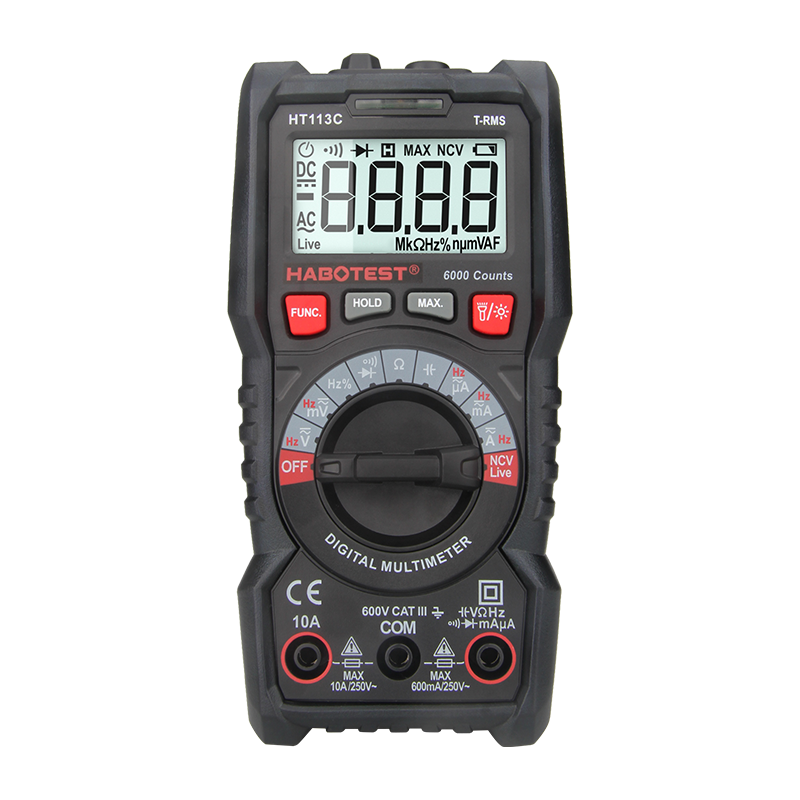

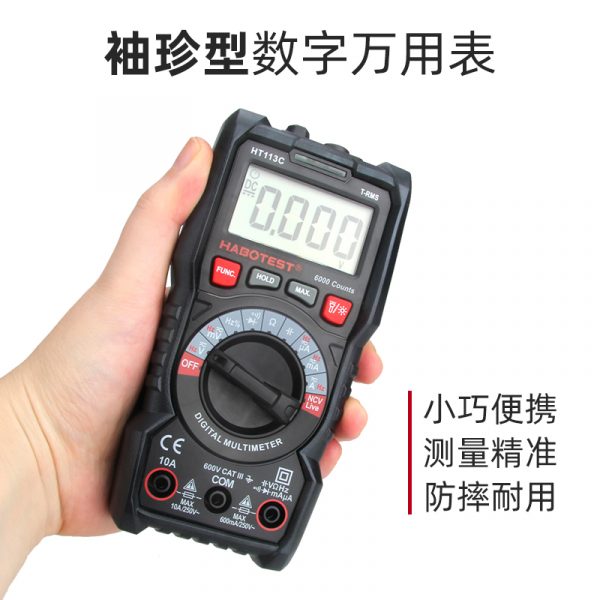

Habotest HT113C 6000 Counts True RMS Digital Multieter wtih Autorange 600V 10A Currenet Multi meter with Temperature Capacitance
|

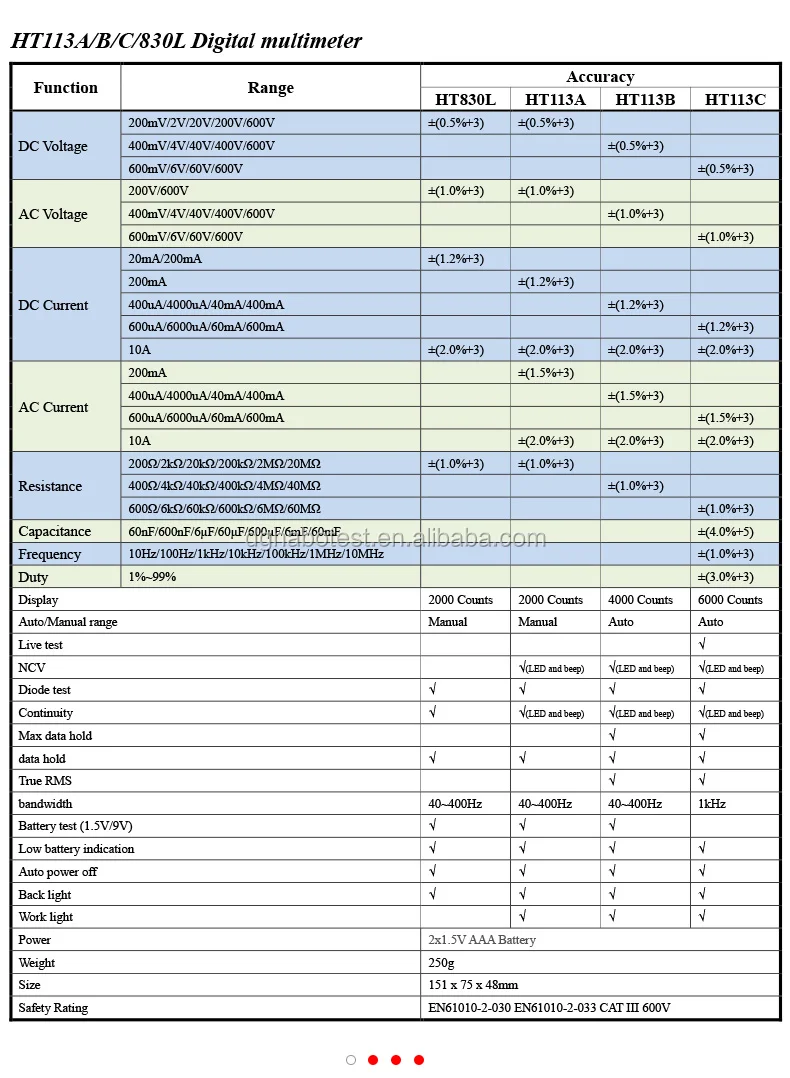

Specifications |
Range |
Accuracy |
|
|
|
HT113C |
|
DC Voltage |
200mV/2V/20V/200V/600V |
|
|
|
400mV/4V/40V/400V/600V |
|
|
|
600mV/6V/60V/600V |
(0.5%+3) |
|

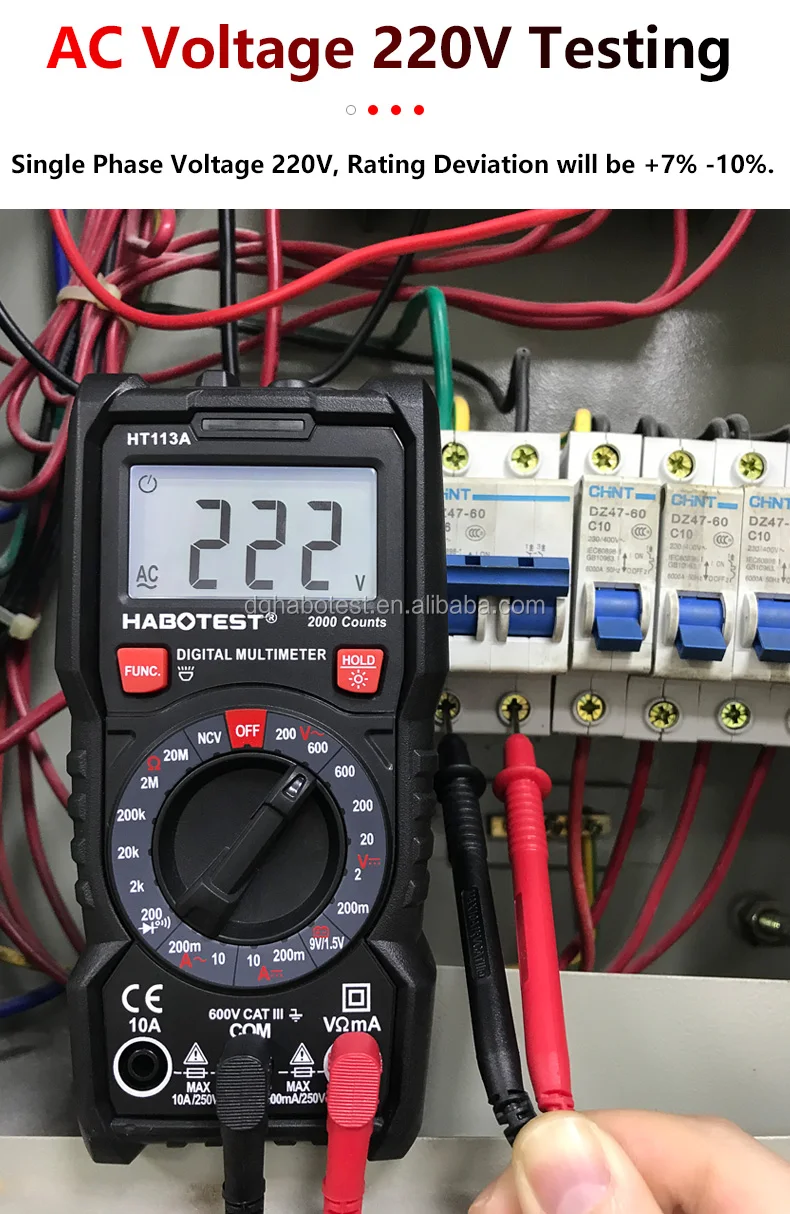

AC Voltage |
200V/600V |
|
|
|
400mV/4V/40V/400V/600V |
|
|
|
600mV/6V/60V/600V |
(1.0%+3) |
|
DC Current |
20mA/200mA |
|
|
|
200mA |
|
|
|
400uA/4000uA/40mA/400mA |
|
|
|
600uA/6000uA/60mA/600mA |
(1.2%+3) |
|
|
10A |
(2.0%+3) |
|
AC Current |
200mA |
|
|
|
400uA/4000uA/40mA/400mA |
|
|
|
600uA/6000uA/60mA/600mA |
(1.5%+3) |
|
|
10A |
(2.0%+3) |
|
Resistance |
200/2K/20K/200k/2M/20MΩ |
|
|
|
400/4K/40K/400k/4M/40MΩ |
|
|
|
600/6K/60K/600k/6M/60MΩ |
(1.0%+3) |
|

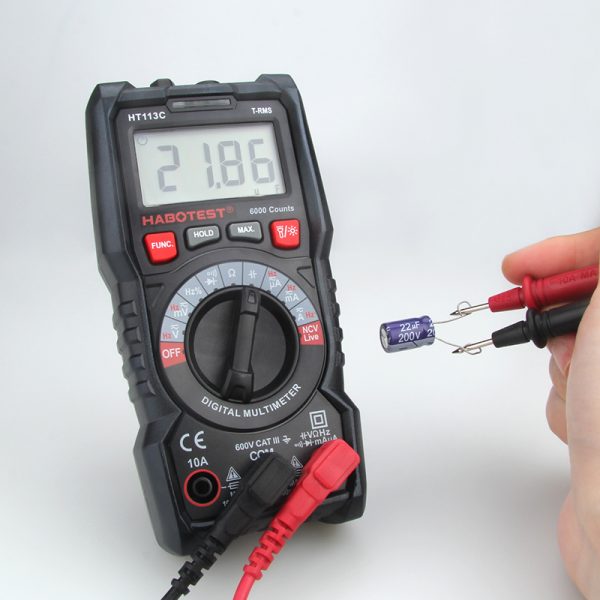

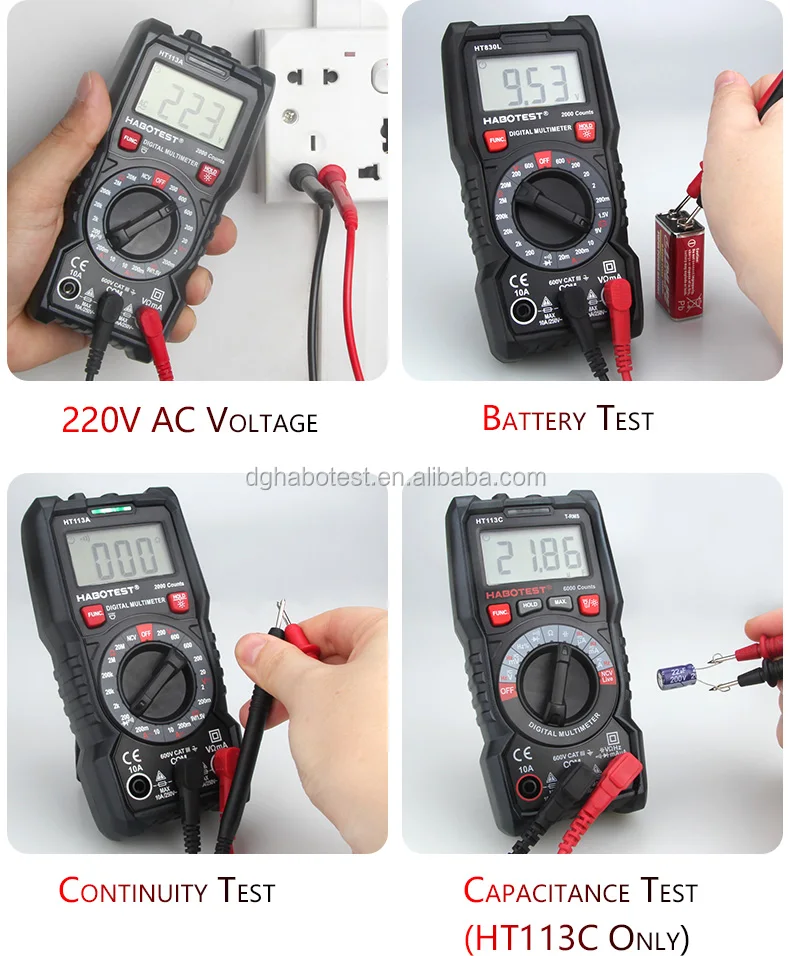

Capacitance |
10nF/100nF/1μF/10μF/100μF/1mF/10mF |
(4.0%+5) |
|
|
100mF |
(5.0%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10KHz/100kHz/1MHz/10MHz |
(1.0%+3) |
|
Duty |
1%~99% |
(3.0%+3) |
|
Display |
6000 Counts |
|
|
Auto/Manual Range |
Auto |
|
|

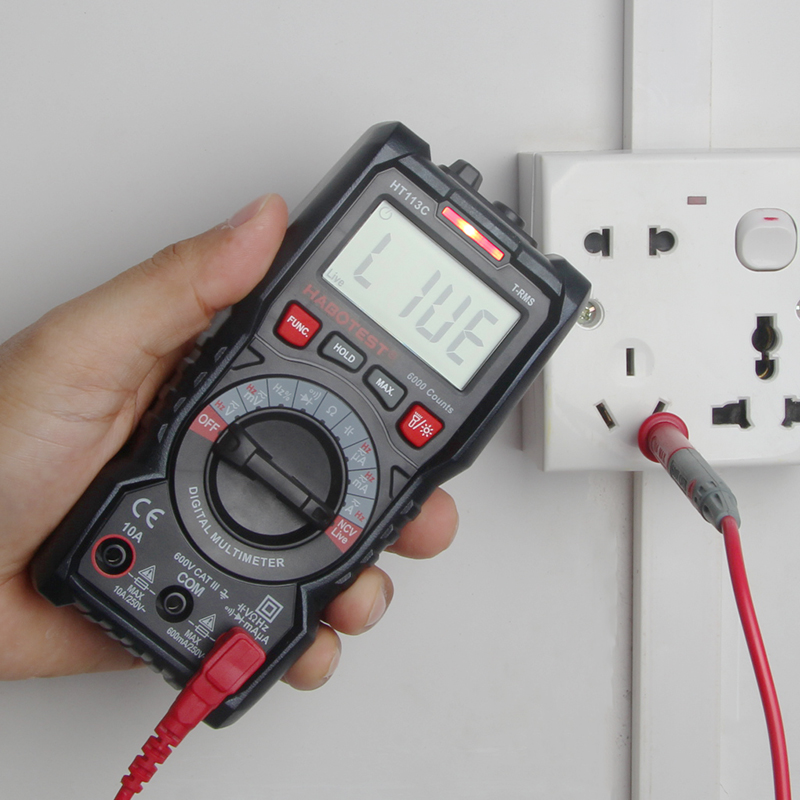

Live Test |
Yes |
|
|

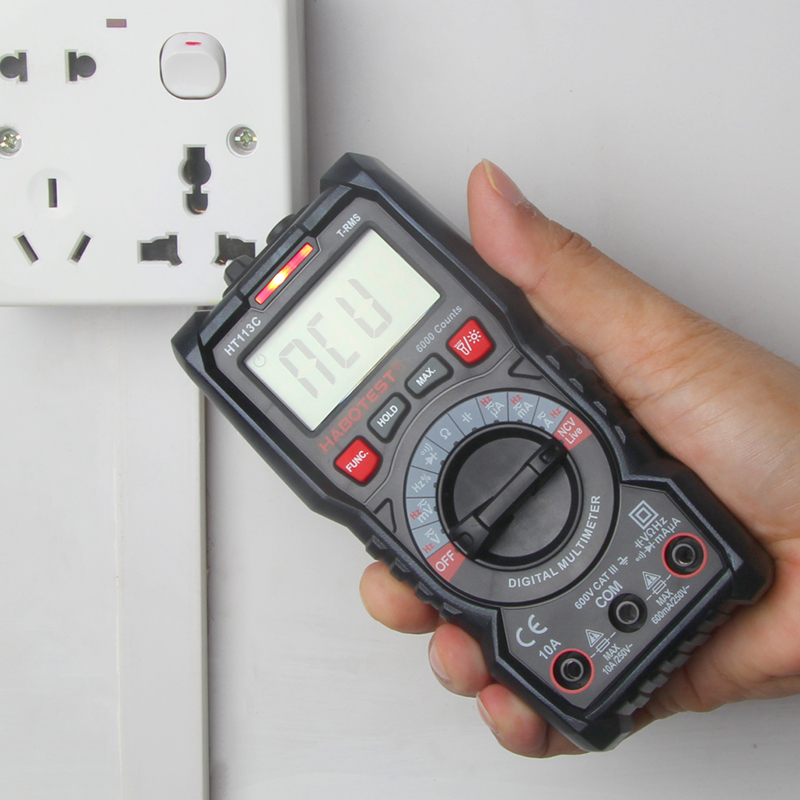

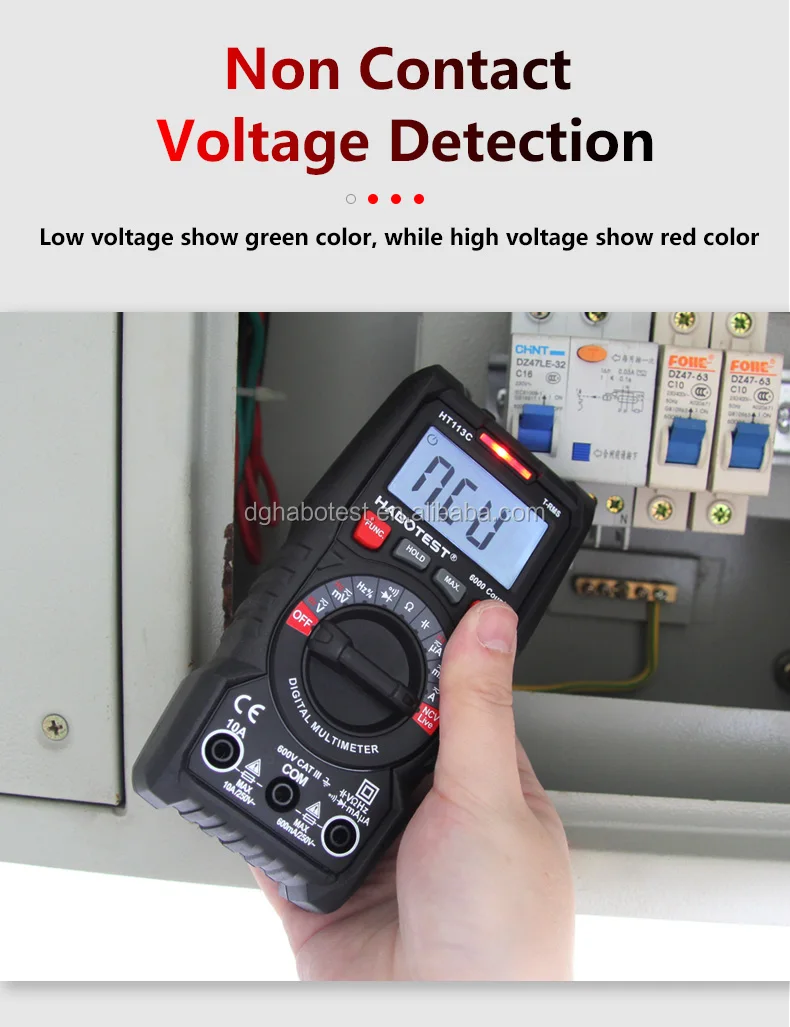

NCV |
Yes(LED and Buzz) |
|
|

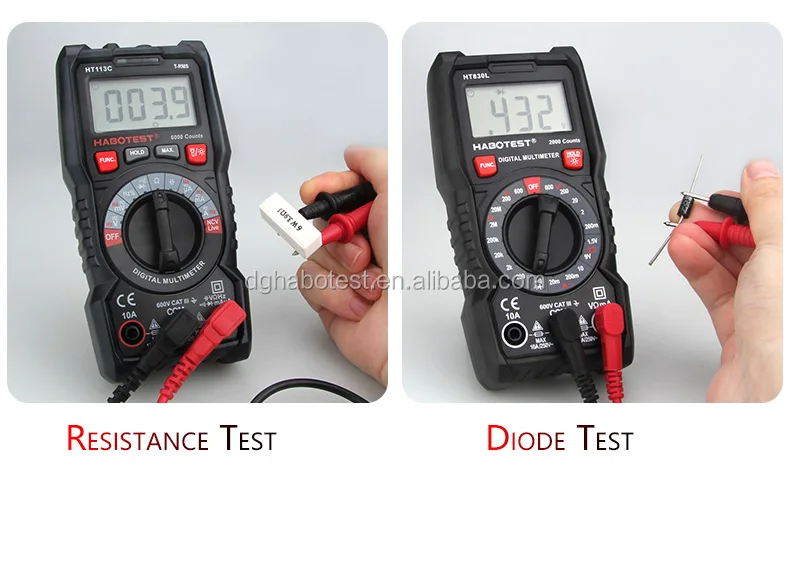

Diode Test |
Yes |
|
|

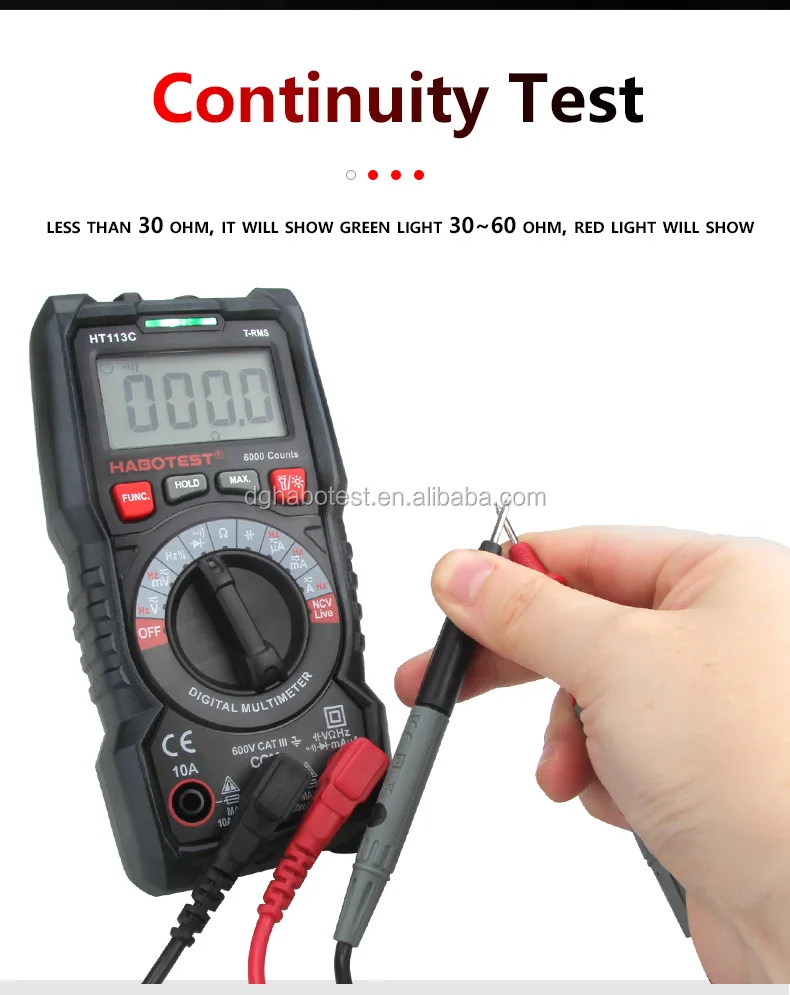

Continuity |
Yes(LED and Buzz) |
|
|
Max data hold |
Yes |
|
|
Data hold |
Yes |
|
|
True RMS |
Yes |
|
|
Bandwidth |
1kHz |
|
|

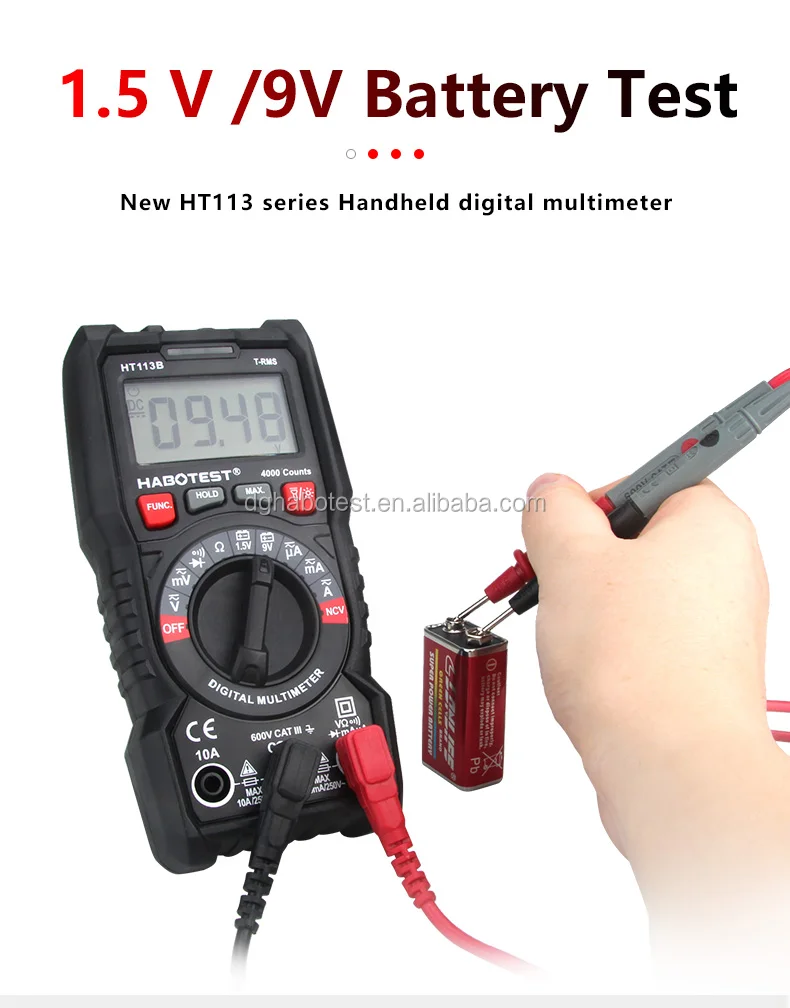

Battery Test(1.5v/9v) |
No |
|
|
Low battery indication |
Yes |
|
|
Auto Power off |
Yes |
|
|
Back light |
Yes |
|
|

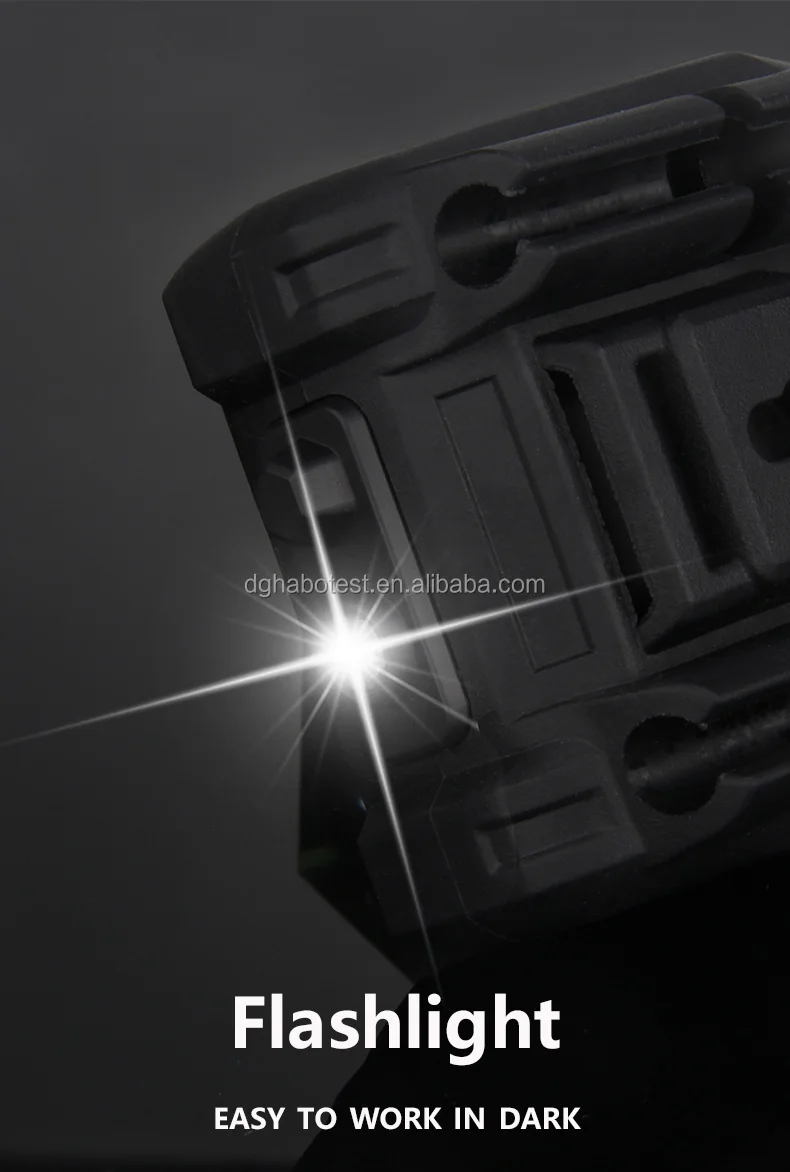

Work Light |
Yes |
|
|
Power |

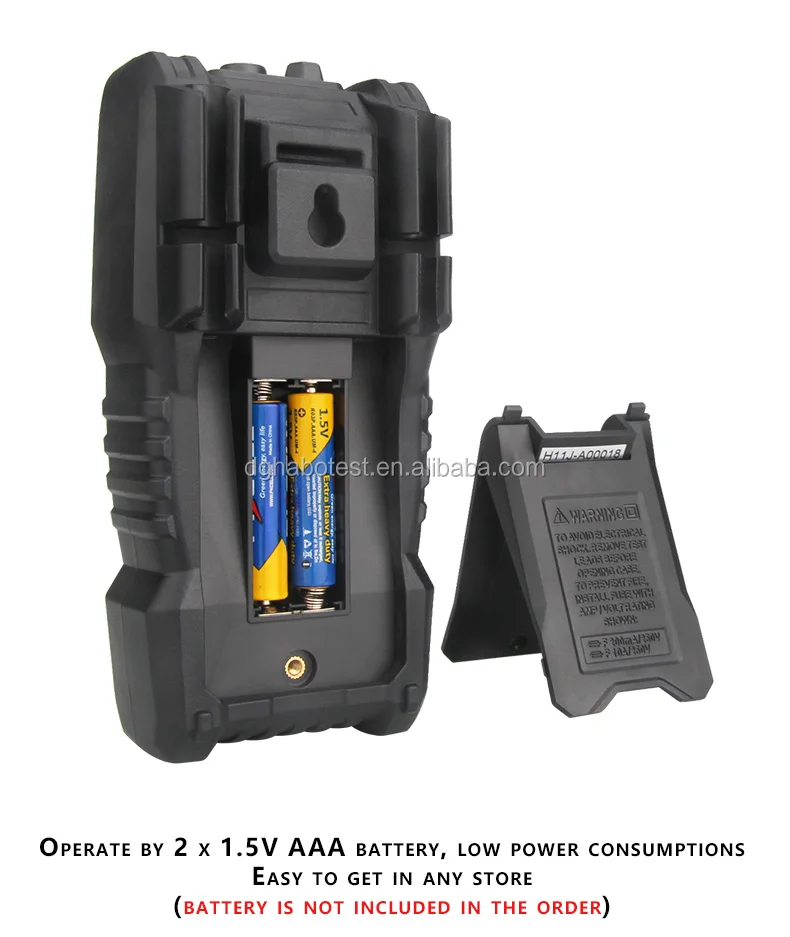

2*1.5V AAA batteries |
|
|
Weight |
Approx.220g |
|
|
Size |
151mm*75mm*48mm |
|
|
Safety Rating |
EN61010-1,-2-030 EN61010-2-033 CATIII 600V |
|
