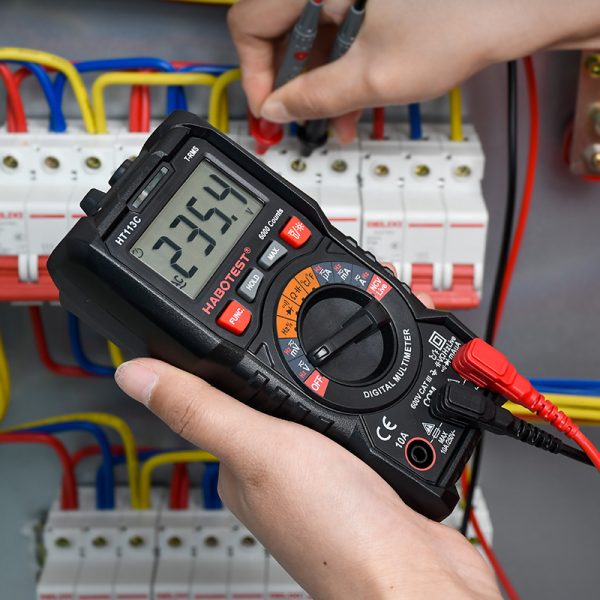

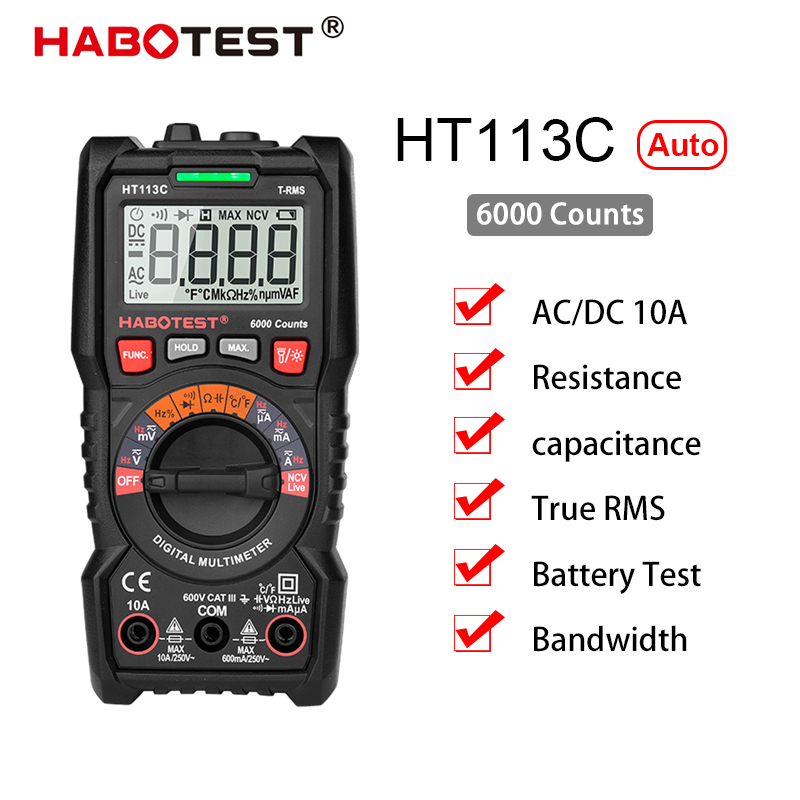

HABOTEST HT113C 6000 Counts Handheld Digital Multimeter Auto Range Automatic Meter Capacitance Frequency Temperature Testing

This product is currently out of stock and unavailable.

Compare

Request quotation for: HABOTEST HT113C 6000 Counts Handheld Digital Multimeter Auto Range Automatic Meter Capacitance Frequency Temperature Testing

Product Description

6000 Counts Portable Digital Multimeter True RMS Measurement

Specifications  Range Accuracy
HT113B HT113C
DC Voltage 400mV/4V/40V/400V/600V ±(0.5%+3)
600mV/6V/60V/600V   ±(0.5%+3)
AC Voltage 400mV/4V/40V/400V/600V ±(0.8%+3)
600mV/6V/60V/600V   ±(0.8%+3)
DC Current 400uA/4000uA/40mA/400mA ±(1.2%+3)
600uA/6000uA/60mA/600mA   ±(1.2%+3)
10A ±(2.0%+3) ±(2.0%+3)
AC Current 400uA/4000uA/40mA/400mA ±(1.5%+3)
600uA/6000uA/60mA/600mA   ±(1.5%+3)
10A ±(2.0%+3) ±(2.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+3)
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ   ±(1.0%+3)
Capacitance

10nF/100nF/1μF/10μF/100μF

1mF/10mF/100mF

±(4.0%+5) ±(4.0%+5)
4nF/40nF/400nF/4μF/40μF/400μF/4m
Frequency

10Hz/100Hz/1kHz/10kHz

100kHz/1MHz/10MHz

  ±(1.0%+3)
Duty 1%~99%   ±(3.0%+3)
Temperature -20℃~1000℃/-4℉~1832℉   ±(2.0%+3)

Display   4000 Counts 6000 Counts
Auto/Manual Range   Auto Auto
Live Test
NCV (LED and Buzz)
Diode Test
Continuity (LED and Buzz)
MAX Data Hold
Data Hold
True RMS
Bandwidth   40~400Hz 40~400Hz
Battery Test (1.5V/9V)
Low Battery Indication
Auto Power Off
Back Light
Work Light
Power 2X1.5V AAA Batteries
Weight Approx.220g
Size 151mm*75mm*48mm
Safety Rating EN61010-2-030 EN61010-2-033 CAT Ⅲ 600V

113C SKU.jpg

Packaging & Shipping



Our Services



Company Information



Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.



We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other testing insturments for the worldwide customers to meet the global market demand, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.



Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.



For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.



Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.



Now our Daily Production is over 10,000 pcs, We are one of the pioneer domestic enterprises who sucessfully in Research, Development and production.



Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
