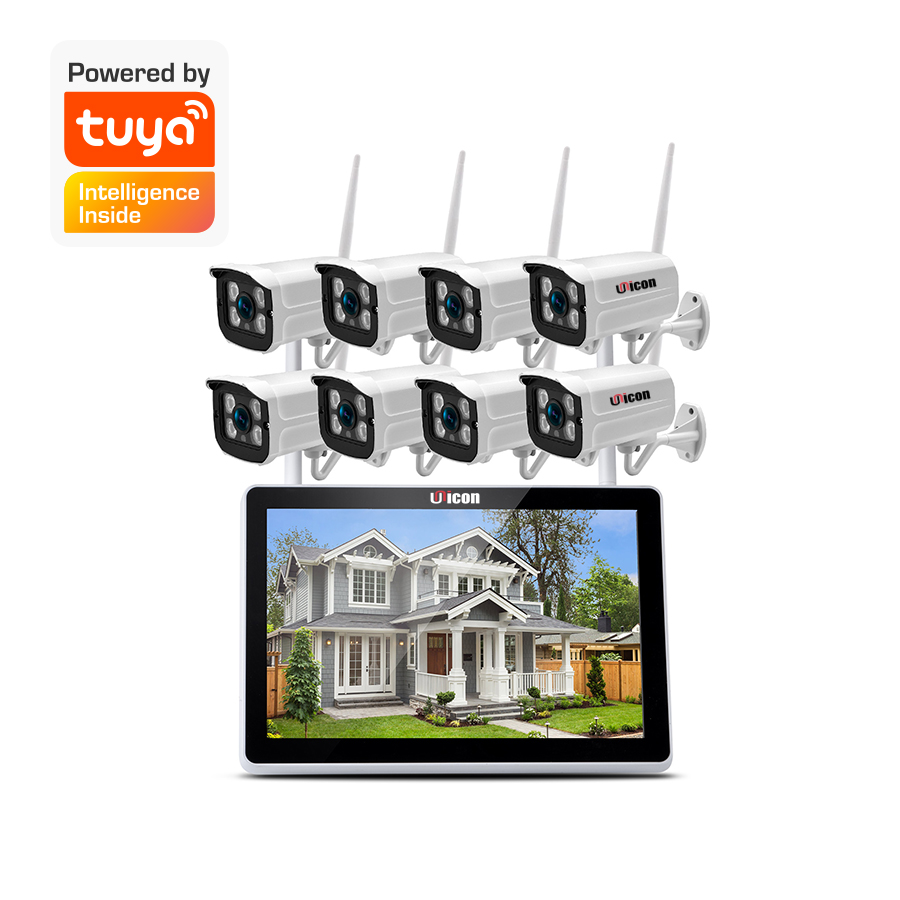

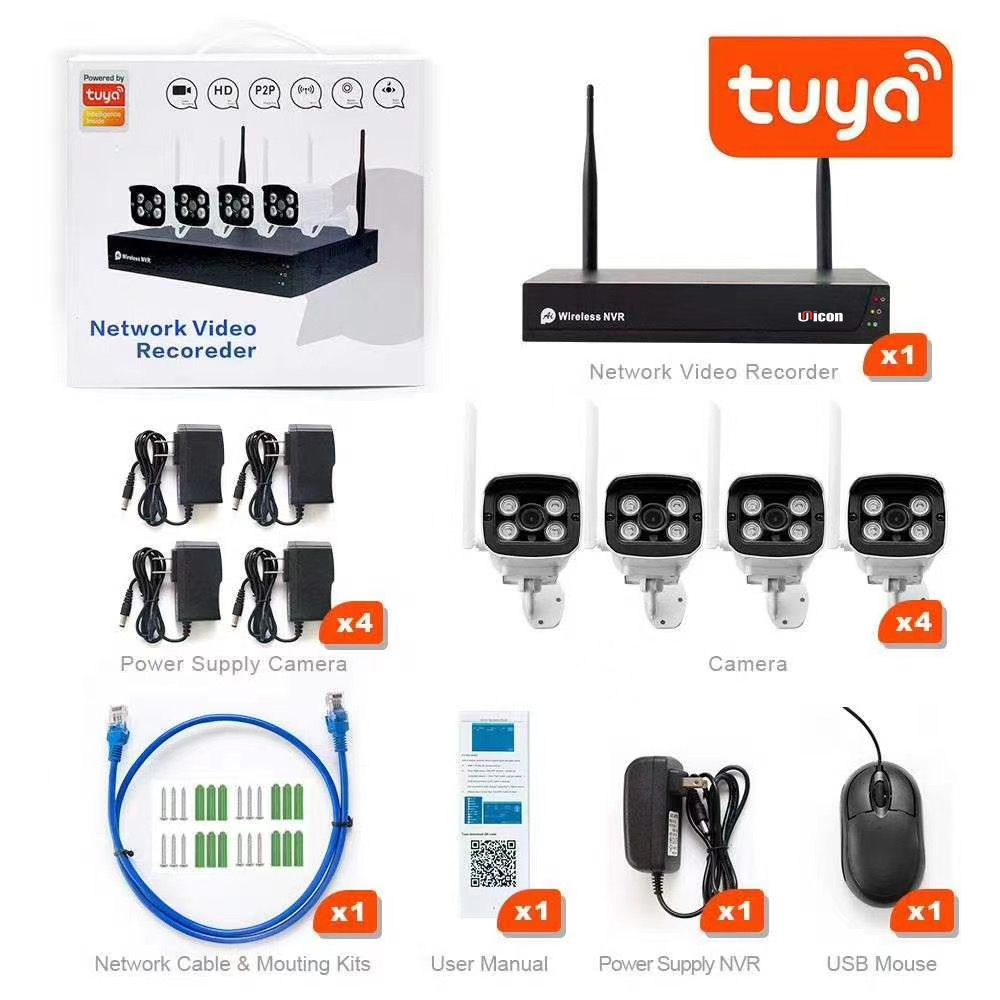

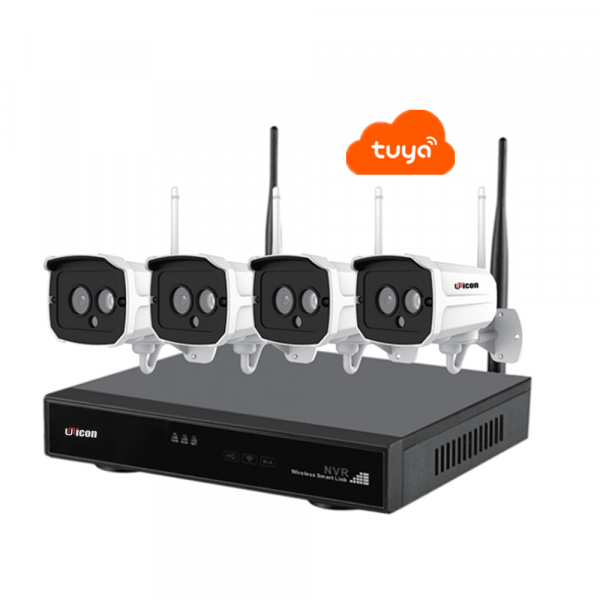

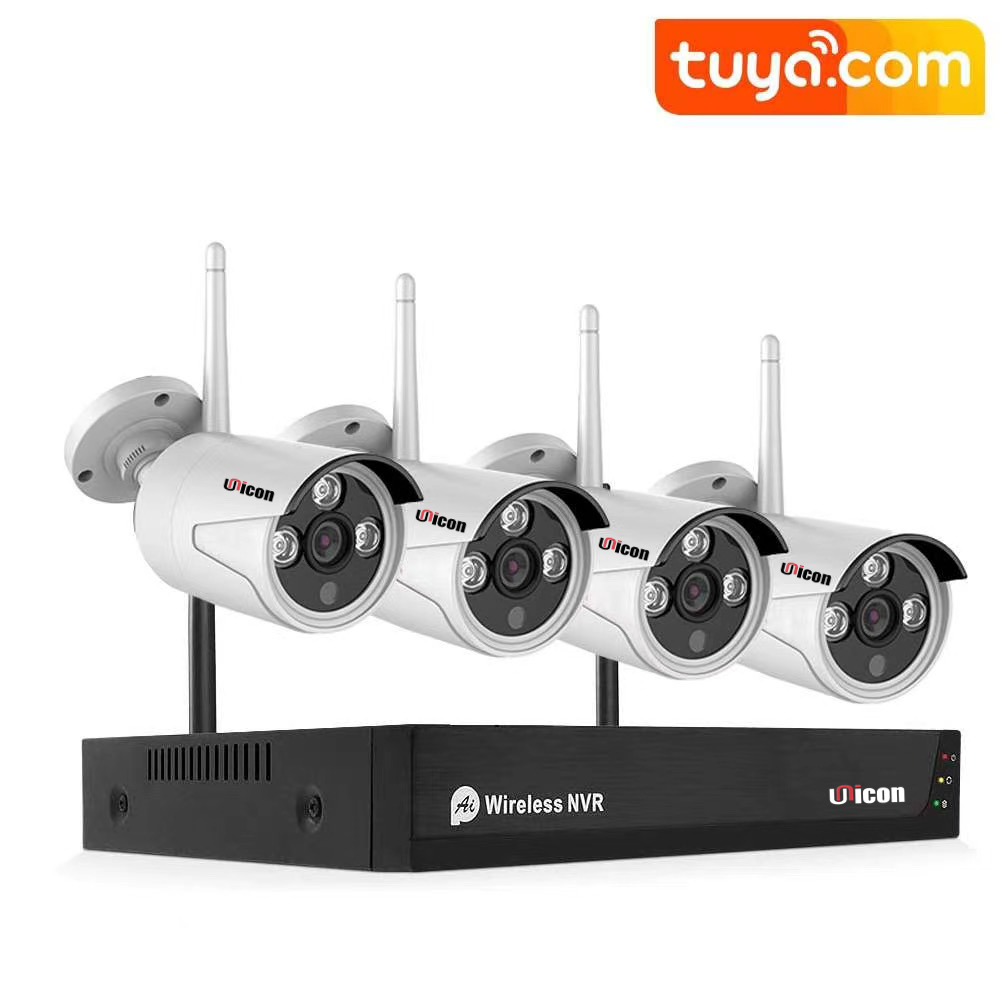

H.265 4CH 8CH Tuya CCTV Camera System Waterproof Wifi Camera NVR Kit with 12 inch Monitor
Specification :
Model |
Wifi NVR |
Operating System |
Embedded Linux OS |
AV(video)input |
|
Network Video |
4CH |
Network video input broad bank |
10Mbps |
AV (video) output |
|
HDMI input |
1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
VGA output |
1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
AV CODEC Specification |
|
Video Resolution |
1080P |
synch-playback |
4CH |
Video Control |
|
Video/Capture mode |
Manual,Time,Motion,Alarm |
Playback mode |
Real time,Routine,Event |
Backup |
USB backup |
Alarm |
|
Alarm Input |
4ch (optional) |
Alarm Output |
1ch (optional) |
Hard Disk |
|
Type |
1*SATA interface |
Max Capacity |
4 TB at most for each |
External Interface |
|
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
USB Interface |
2 USB 2.0 |
Network Control |
|
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
Others |
|
Power Supply |
DC12V3A |
Power Consumption (W) |
≤5W(Without HDD) |
Operate Temperature (°C) |
-10℃~+55℃ |
Working Humidity (%) RH |
10%~90% |
Size |
257mm(W)×210mm(V)×45mm(H) |
Weight(excluding HDD) |
≤1Kg |
Model |
Wifi Camera |
Technical Parameters |
|
Sensor |
1/4” Progressive Scan Sensor |
Signal System |
PAL/NTSC |
Resolution |
1080P; 1920 x 1080 16 : 9 High Defination |
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
Shutter |
1/25s to 1/25,000s |
Lens |
3.6/4/6mm (optional) |
OSD |
Date Time & Title |
White Balance |
Auto |
Day&Night |
Auto / Color / BW |
3D-DNR |
Auto |
Mirror/Flip |
On / Off |
Frame Specification |
Three Streaming at the Same Time: |
S/N |
> 39.1 Db |
Interface |
RJ45 / WIFI 802.11b/g/n |
General Specification |
|
Anti-thunder Level |
Standard IEC61000-4-5 |
Ambient Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
Payment terms :
Unicon Vision Technology Co.,Ltd. is a professional HD security products provider. Experienced team devote all of our energy to developing better security products for society and customers.
Unicon Vision specialized in Multi-sensor Stitching Panoramic IP Camera, 4 lens 180 degree, 5/8 lens 360 degree Panoramic in high resolution 10MP, 15MP, 24MP and 100MP.
The latest technology we combined 8 lens Panoramic camera with 30X optical zoom PTZ camera to build the world first Vehicle Pano & PTZ System.
OEM Services: Customized (Silk print/metal) LOGO, Label, Packing box, Manual printing for customers.
Technical Support: With an outstanding CCTV professional team, we offer 24 hours / 7 working days ONLINE technical support before & after sales.
Fast Delivery: Sample Order delivery within 3-5 days; Mass production with raw material in stock.
Quick Response: Your any question & inquiry will be responsed promptly within 12 hours.
Warranty: Three years warranty for all products. Moreover, we are pleased to repair products out of warranty with less charges.
