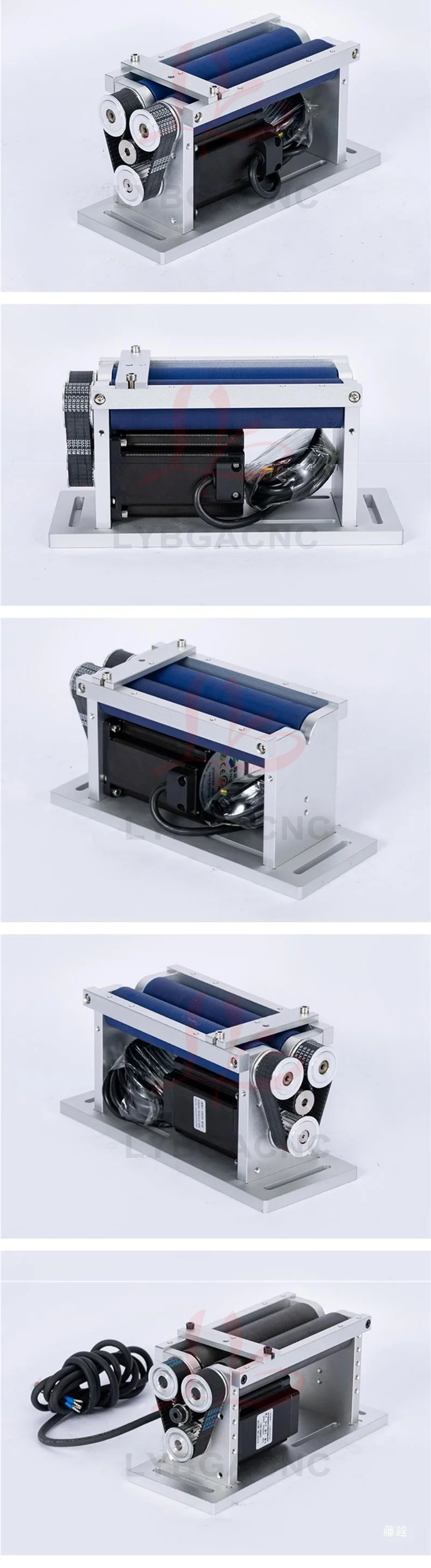

GZ230 Rolling Roller Type Axis Rotary Fixture Clamp for Fiber Laser Marking Machine Optional Knurling & Rubber-coated Gap 3mm

Name:Small roller(GZ-230)

1.Calculate the reduction ratio: product circumference(MM)

divided by 100≈reduction ratio

2.Adjust the ratio: play single tine→turn 360 degrees→play

single line→reverse 360 degrees→play single line)

The better the three lines coincide, the more accurate the speed reduction ratio.

3. Normal rotation marking: fill in the correct reduction ratio will be able to work like a direct-connected rotary table.

Motor: 60*88mm (Snowit) line length 2 meters

Power supply:24V

Shaft length: 148mm

Shaft distance: 3mm

Overall Dimension: 230*90*107 (LWH)

Applicable range: Diameter 5 to 150mm.

Load capacity: within 20kg

Advantages: fast clamping can be close to the marking diameter, length and weight of a wide range of applications.

Disadvantages: light products easy to lose step, too fast speed easy to lose step, 360 degrees full circle splicing difficulty is not suitable for taper product marking.

Options:

GZ230-3 Knurling        Shaft pitch 3mm

GZ230-3 Rubber-coated   Shaft pitch 3mm

Weight: 5KG
