Product Usage and Features

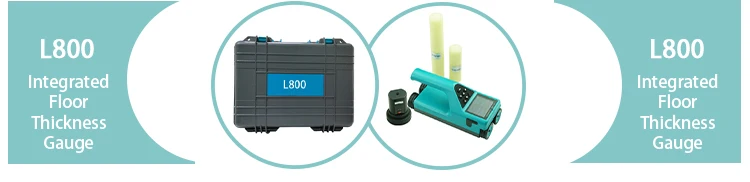

GTJ-L800 Integrated Floor Thickness gauge
PRODUCT OVERVIEW
GTJ-L800 Integrated floor thickness gauge is a portable and non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative testing surfaces of the concrete, respectively, to transmit and receive electromagnetic signals, and the instrument is connected according to the connection. The received signal strength is used to measure the concrete thickness.
PRODUCT FEATURES
1.Host integrated design, simple operation, easy to carry. Upgraded wireless cloud transmission function;
2.Real-time positioning function, arrow direction indicating the position of the emitter probe, the testing process issimple;
3.The thickness measurement range is wide and the accuracy is high.Stored components can continue to be detected.
4.TF card storage makes storage and transmission is more convenient and fast.
5.Instrument calibration can correct the deviation caused by temperature or environment.
6.Special computer software for data analysis can quickly generate test reports.
Technical Parameters
|
Model
|
GTJ-L800
|
|
Rebar dia. setting range
|
6mm~50mm
|
|
Test accuracy
|
20~350mm (±1mm)
|
|
351~600mm (±2mm)
|
|
|
601~800mm (±4mm)
|
|
|
Storage capacity
|
950 Components *1000 Measuring points
|
|
Data transmission mode
|
TF card; wireless cloud transmission (potional)
|
|
Host Parameters
|
Screen size: 2.8 inch
LCD resolution: 240*320
Volume: 220*93*110mm
Weight: 0.6KGs
|
|
Power suppy
|
Both host and transmitter probes are built-in lithium battery
|
|
Working environment requirements
|
Temperature: -10℃ ~ +40℃
Humidity： ＜90%RH
Non-strong alternating electromagnetic field
No long direct sunshine
|

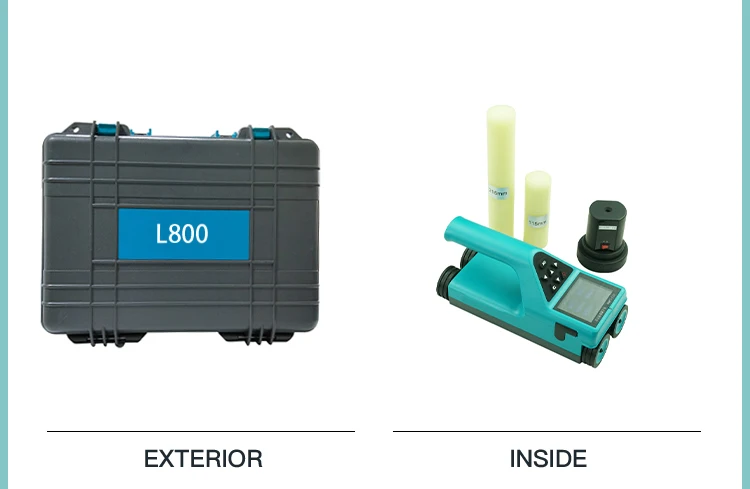

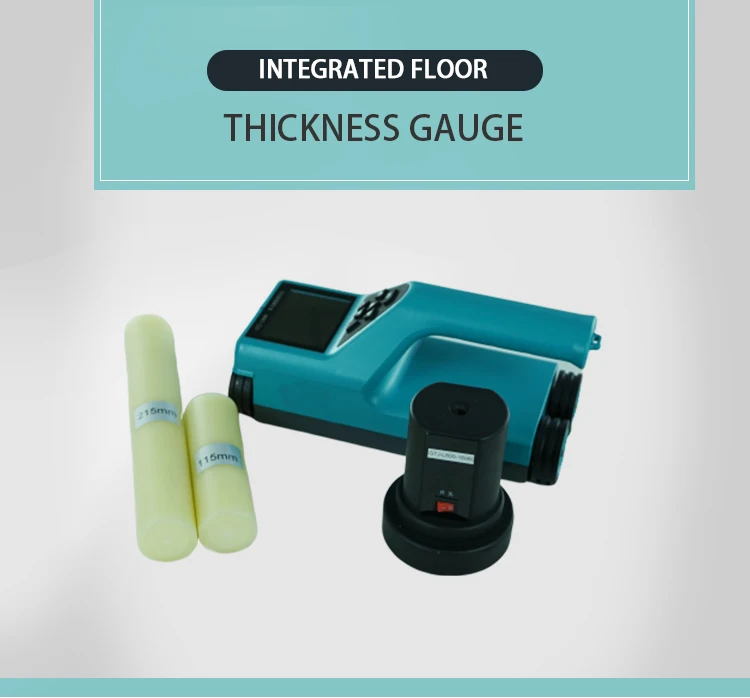

Detailed Images
