| Overview |

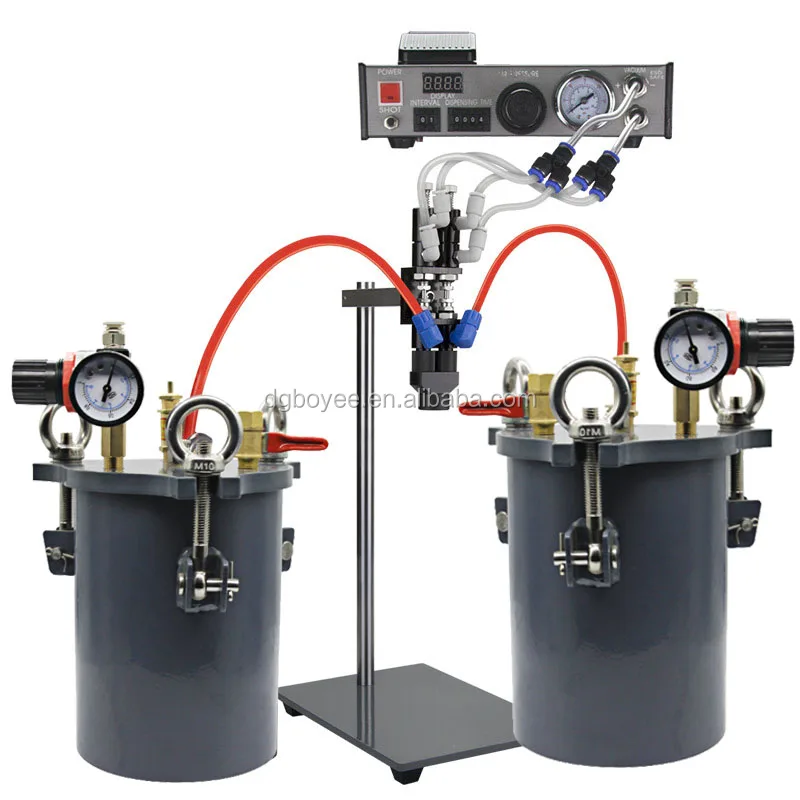

| AB double liquid dispensing machine 1, AB double liquid dispensing machine, also known as AB glue coating machine, two-component dispensing machine, two-liquid glue filling machine, AB glue glue machine, etc., is specially designed to solve AB glue, A dispensing machine developed for the two-component glue, multi-component fluid automatic mixing and quantitative dispensing. The AB two-liquid dispenser is one of the branches of the dispenser and is juxtaposed with a single-component dispenser. |
| Scope of application |
| AB two-liquid dispenser is suitable for all kinds of AB glue, two-component or multi-component liquid, including AB glue, two-component glue, AB epoxy potting. Of course, for the ordinary pneumatic AB two-liquid dispenser, the consistency of A glue and B glue can not be too different, generally not more than 1:5, otherwise the glue is more difficult to mix evenly. |

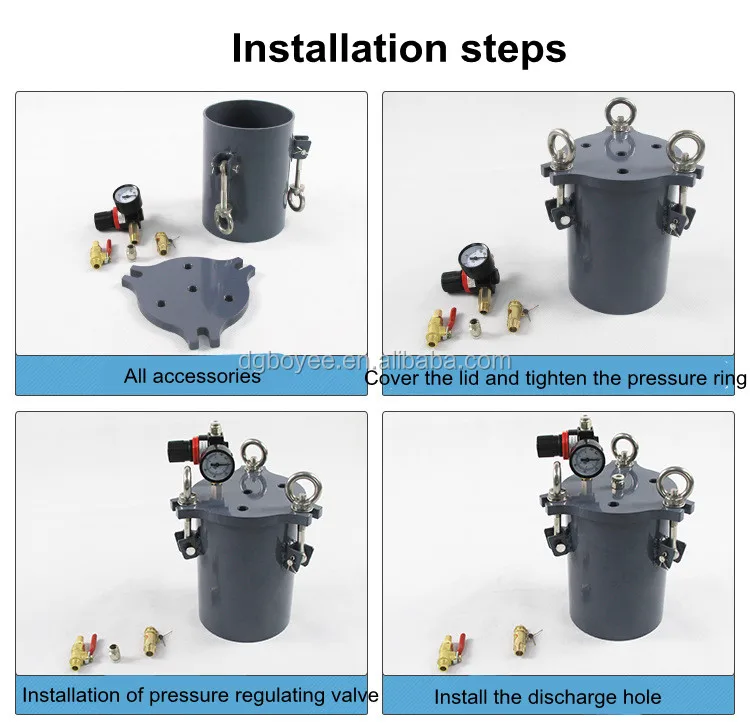

| Packing list :1*glue dispenser 1*glue value 2* Carbon steel barrel press tank 2*Stainless steel liner (2L-10L) |
| Dispensing valve: suckback type dispensing valve | Weight: 240G |
| Model: BY-23AB | Form: suckback |
| Cylinder: double acting double cylinder | Main material: aluminum alloy anodized |
| Operating viscosity: 1-1.000.000cps | Minimum discharge: 0.01ml |
| Feeding pressure: <30KG | Inlet size: 1/8″npt(f) |
| Operating rate: 600/min | Use air source: 4-7kgf/cm |
| Size: 40*184 | Mounting fixed: M7 internal thread |
