| TPR-1325 automatic loading and unloading engraving machine |

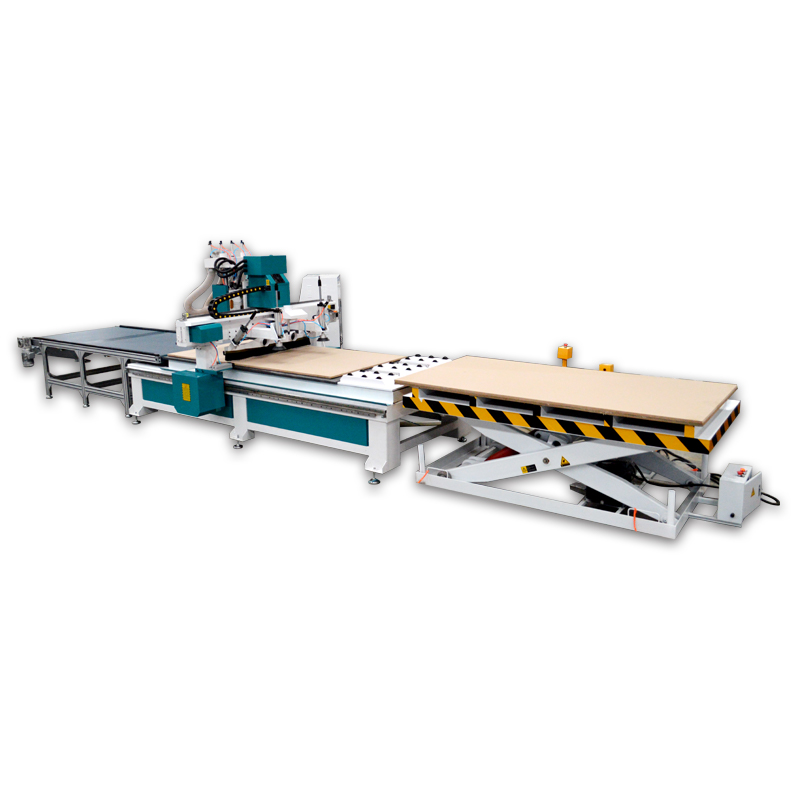

| This TPR-1325 automatic loading and unloading engraving Machine Processing: 1. cnc machining center automatically loads a 4×8 sheet from a pallet by way of a scissor lift located at the rear of the CNC machine. 2. A movable gantry system equipped with suction cups using retractable guide rails and stops on the table safely and accurately guides the material sheet onto the CNC platform. 3. Once the sheet is placed, the vacuum hold down automatically and operator starts the cut cycle for the CNC to execute. 4. After the sheet is fully processed, it is then pushed off to a conveyor table at the front end while another sheet is simultaneously loaded from the rear of the machine again. 5. During this whole process the residual dust or chips that are not picked up from the dust collector are swept off the table and conveyor into various chutes keeping the work cell clear of dust and debris. 6. Upon completion, the individual parts are labeled by the operator through an integrated bar code system. This facilitates clear identification of the finished parts for quick and easy assembly later on. |
| automatic loading and unloading CNC machine Product details |

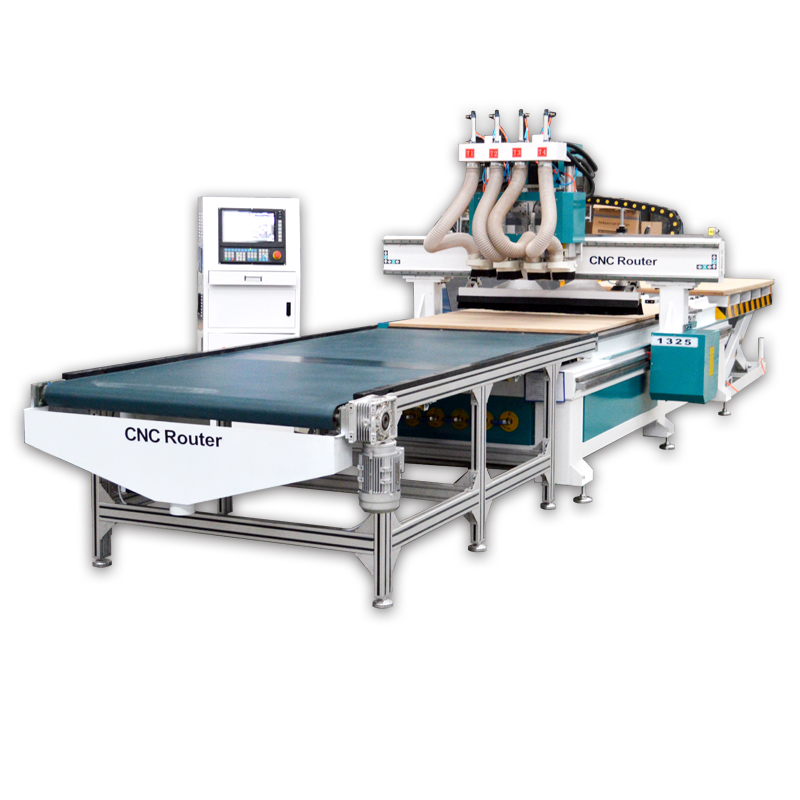

1325 Nesting CNC Machine is a Wooden Furniture production line,including loading equipment, Nesting CNC Router with auto tool changer, unloading equipment. it finish automatic the whole process of MDF Wood prepare, feeding, fixing, cutting, carving and unloading.
| 1. Solid gantry,well structure of lathe bed,stable and high speed,high accuracy. |
| 2. Highspeed air cooling spindle and high performance subdivision driver ensure work stably for long time. |
| 3. With easily-learned sofware,conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor. |
| 4. Vacuum table with great absorption strengt,high efficient for mass production, cutting speed over 20m/min. Low vibration and smooth motion ensure higher work piece quality. |
| automatic loading and unloading CNC machine Main parameters |
| automatic loading and unloading CNC machine Main feature |
|
1) Automatic Loading & Unloading machine, be equipped with ATC, L9 drilling bits, Be widely applied for processing closet, cabinet and so on. 2) Appearance: New design gantry cover, whole machine body cover. 3) Pre-position Setting: three vacuum cups to adjust the panel before loading. 4) Back & Side Pusher: Adjust the panel to the right position before processing it 5) Vacuum Detector: Automatically detect if the vacuum power is OK before processing 6) Vacuum Release: Release the vacuum and detect if there is still vacuum working on the panel, if not, then the automatic pusher can push the panel off the vacuum table. 7) Conveyor: Connect to the PLC system, can detect if there is another panel on the waiting table, if not ,then can push the panel to waiting table. 8) Vacuum table: Double PVC layer, 5 vacuum zones for different panel size. 9) Independent electric cabinet & control panel
|
| automatic loading and unloading CNC machine Sample disply |
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors,sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertisingmaterials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
| automatic loading and unloading CNC machine Machine shipping |
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
| automatic loading and unloading CNC machine Our service |
|
Guarantee: 1. The machines are all brand new genuine parts, and the warranty period is 2 years. Within 24 months of normal use and maintenance, if the machine fails, you will get spare parts for free. 2. Provide 24-hour online after-sales service and provide permanent technical support. 3. Provide machine manuals and simple troubleshooting manuals, and engineers can be sent to the country for on-site maintenance. |
| automatic loading and unloading CNC machine Company information |
| Shenzhen Tip-Top Manufacture & Trading Co., Ltd is a branch company with engineers and research and development for 16 years. It is a professional manufacturer engaged in the research, development, production, and service of fiber laser marking machine. Fiber cutting machine, fiber marking machine, CNC router, laser engraving machine, laser welding machine, and plasma cutting machine. |
