Products Description
|
Machine description
|
||
|
This machine is driven by a four-wheel stepper motor, mainly for 2 core/3 core/4 core soft sheathed wire, hard sheathed wire,Teflon sheathed wire copper sheathed wire, cable sheathed wire
|
||
|
Machine parameters
|
||
|
Product name/model
|

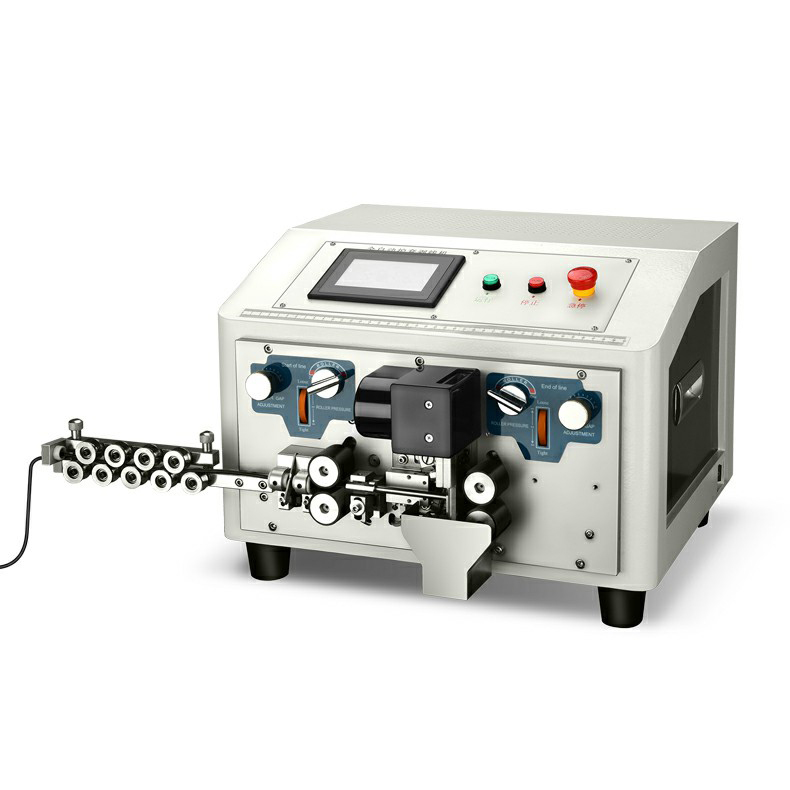

Automatic computer sheath wire stripping machine JL-600-6H
|
|
|
size
|
470mm*450mm*350mm
|
|
|
weight
|
36.5KG
|
|
|
power
|
AC220V 50/60HZ 700W
|
|
|
Stripping range
|
Diameter 1mm-6mm
|
|
|

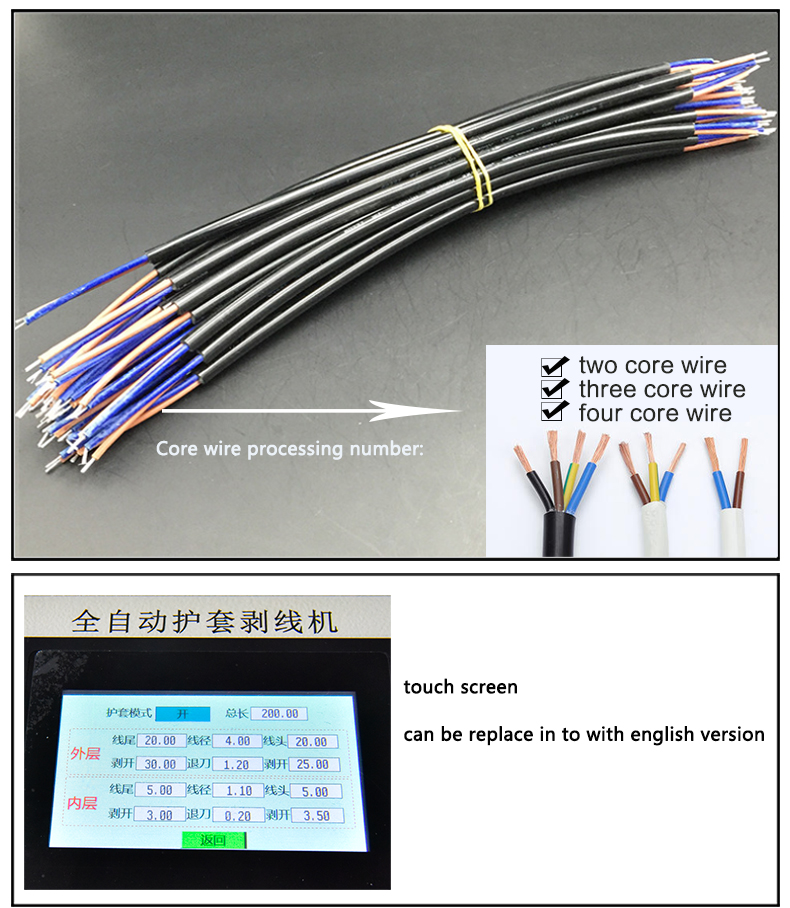

Core wire processing range
|
Two core/three core/four core
|
|
|
Cutting length
|
0.1-99999.9
|
|
|
Length of outer stripped wire
|
Stripping head 0.1-70mm, stripping tail 0.1-70mm
|
|
|
Core wire stripping length
|
Stripping head 0.1-20mm, stripping tail 3-20mm
|
|
|
Stripping accuracy
|
Silent hybrid stepping motor 0.01mm
|
|
|
Blade material
|
Imports of tungsten steel / high speed steel
|
|
|
Operation interface
|
Full touch 4.3 inch LCD display
|
|
|
Control system
|
SCM self-developed motion control board
|
|
|
Drive method
|
Four-wheel stepper motor drive
|
|
|
Program
|
100 memory programs
|
|
|
Production capacity
|
100/500/1000mm (1300/1100/900pieces/hour)
|
|
Product Details
Packaging & Shipping
|
Packaging
|
||
|
Size
|
470mm(L) * 450mm(W) * 350mm（H)
|
|
|
Weight
|
80KG
|
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request. |
|
Contact us
Certifications
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
