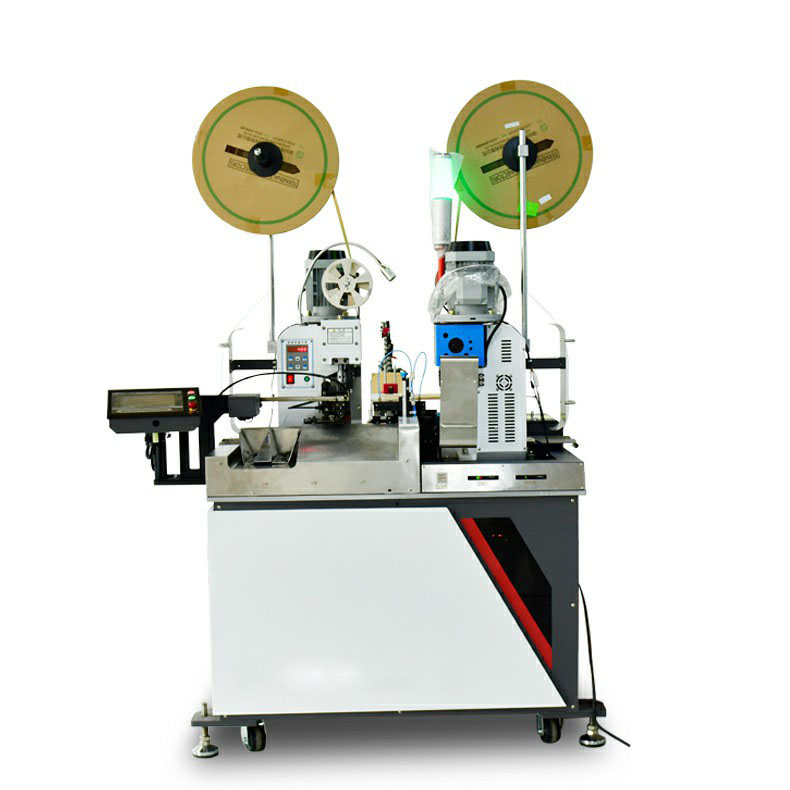

Products Description
1. Fully automatic double-head terminal machine is specially tailored for ultra-fine wires and high-precision wires, cutting,
stripping, and finishing with more precise and stable.

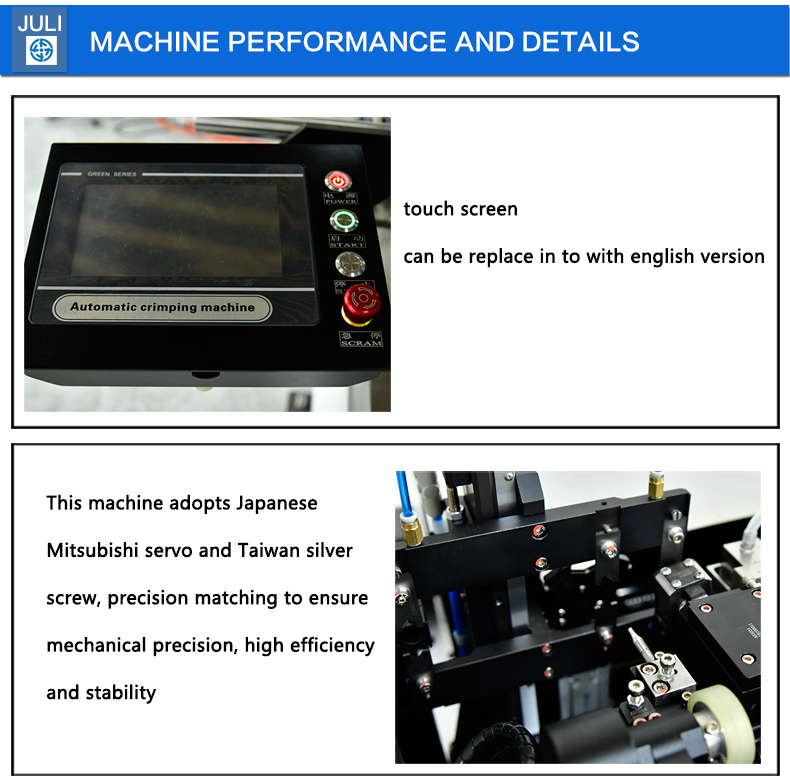

2. The double-head terminal machine adopts Japanese Mitsubishi servo and Taiwan silver screw, precision matching to ensure mechanical precision, efficiency and stability.
3. Full computer touch screen operation, input of cutting length, stripping, half-stripping and twisting and other parameters can be completed at one time, reducing adjustment time, no need for professional operation, and adjustment is simpler and more convenient.
4. The computer automatically detects mechanical failures and displays the cause of the failure, which facilitates rapid
troubleshooting and greatly improves production efficiency.
stripping, and finishing with more precise and stable.
2. The double-head terminal machine adopts Japanese Mitsubishi servo and Taiwan silver screw, precision matching to ensure mechanical precision, efficiency and stability.
3. Full computer touch screen operation, input of cutting length, stripping, half-stripping and twisting and other parameters can be completed at one time, reducing adjustment time, no need for professional operation, and adjustment is simpler and more convenient.
4. The computer automatically detects mechanical failures and displays the cause of the failure, which facilitates rapid
troubleshooting and greatly improves production efficiency.
|
Model
|
BG-01G
|
|
Power
|
50/60HZ 220V single-phase
|
|
Function
|
cut full strip half-strip two sides sides crimping
|
|
Applicable wire
|
AWG#20~AWG#32
|
|
Production rate
|
3400-3800pcs/h (according to the wire)
|
|
Cut length
|
12mm~9999mm
|
|
Stripping length
|
A 0~-6mm B 0~10mm
|
|
Air supply
|
0.5-0.7MPa
|
|
Size
|
1400*800*1500mm
|
|
Weight
|
400KG
|
Picture details
Contact us
Certifications
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
