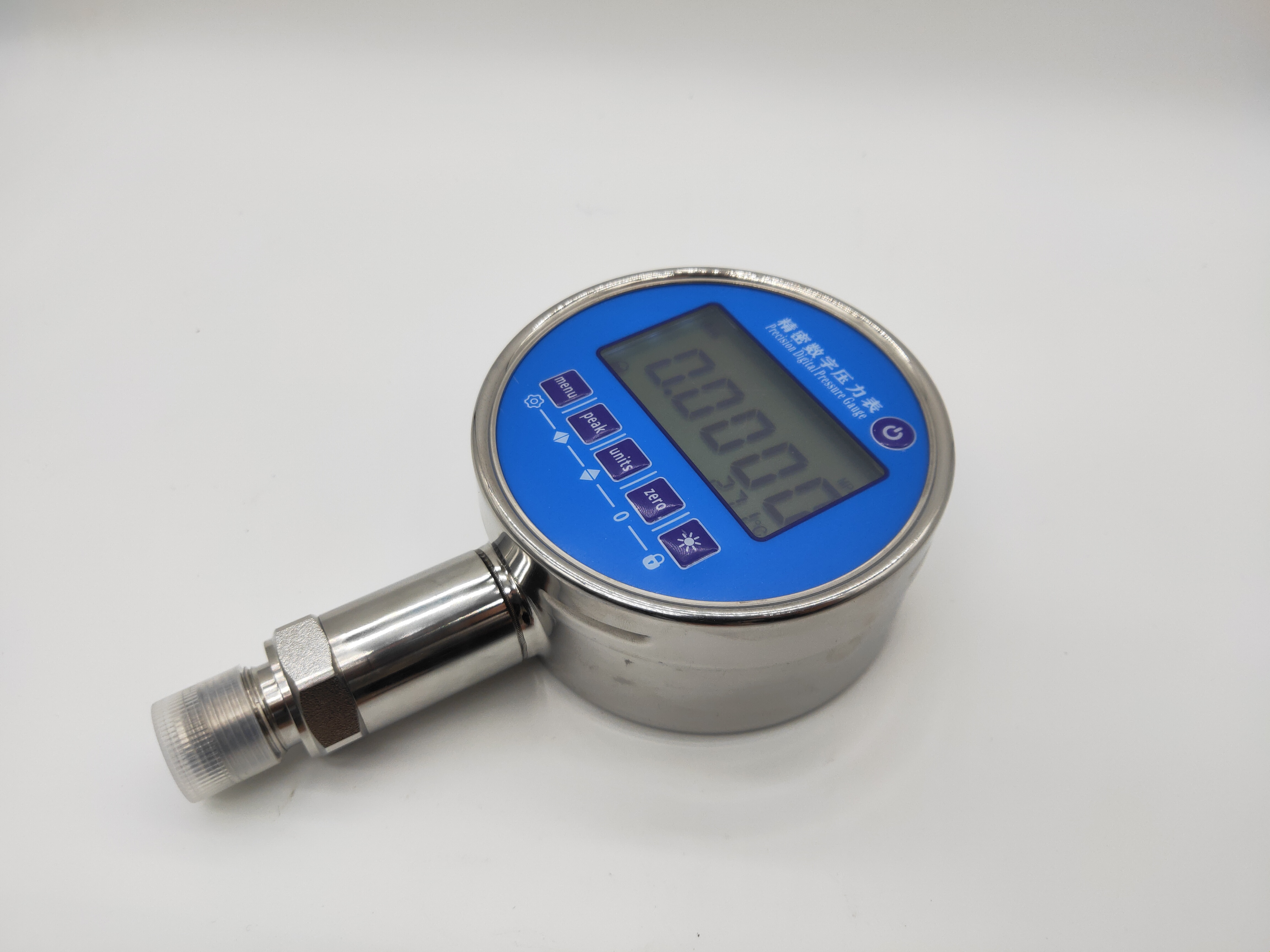

Product Description
The precision digital pressure gauge produced by our company uses high-precision low-power large-scale integrated circuits as the core device, which is mainly composed of high-precision measurement chips, sensors and signal processing circuits.
Feature
1.High and low voltage peaks can be viewed, one key can be cleared
2.Support multiple pressure units, one-button switchable to meet different needs
3.Software for temperature compensation, high accuracy, wide operating temperature
4.Dedicated wide temperature LCD display (- 25℃～75 ℃)
5.Real-time measurement of ambient temperature, environmental factors under pressure measurement and control
6.Vertical installation or axial installation, providing a variety of pressure interfaces and interface materials
7.Special function pressure gauge can be customized according to user requirements
Technical Parameters
|
Pressure parameter
|
||
|
Power supply
|
DC3.6V（Built-in lithium battery）
|
|
|
Measured variable
|
Pressure
|
|
|
Measuring range
|
(-0.1-0)MPa,(0-60)MPa,(0-100)Mpa,(0-250)MPa
|
|
|
Comprehensive accuracy
|
0.4%FS.2%FS.1%FS.05%FS
|
|
|
Compensation temperature
|
(-10-70)℃
|
|
|
Vibration effect
|
<±0.05％/g，500Hz in all directions (according to IEC68-2-64)
|
|
|
Ambient temperature
|
(-25-85℃)
|
|
|
Storage temperature
|
(-40-85℃)
|
|
|
Protection level
|
IP67 according to EN60529
|
|
|
Display and control
|
||
|
The meter shows
|
SFTN LCD, white backlight, 5-digit display
|
|
|
Parameter settings
|
6 button settings
|
|
|
Pressure unit
|
MPa,kPa,Pa,Psi,Bar,mbar,mmH2O,mmHg,kg/cm2
|
|
|
Product weight
|
1KG
|
|
|
Process connection
|
M20*1.5External thread (other threads are optional), 304 stainless steel
|
|
|
Measurement period
|
≤ 100ms
|
|
Application Scenario
Precision digital pressure gauges are used to indicate and monitor pressure changes at the installation site, and are mainly used in the following process control industries:
Urban water supply
Chemical industry energy
Experimental measurement
Food Machinery
Sewage treatment
Long-distance heating
Product size chart

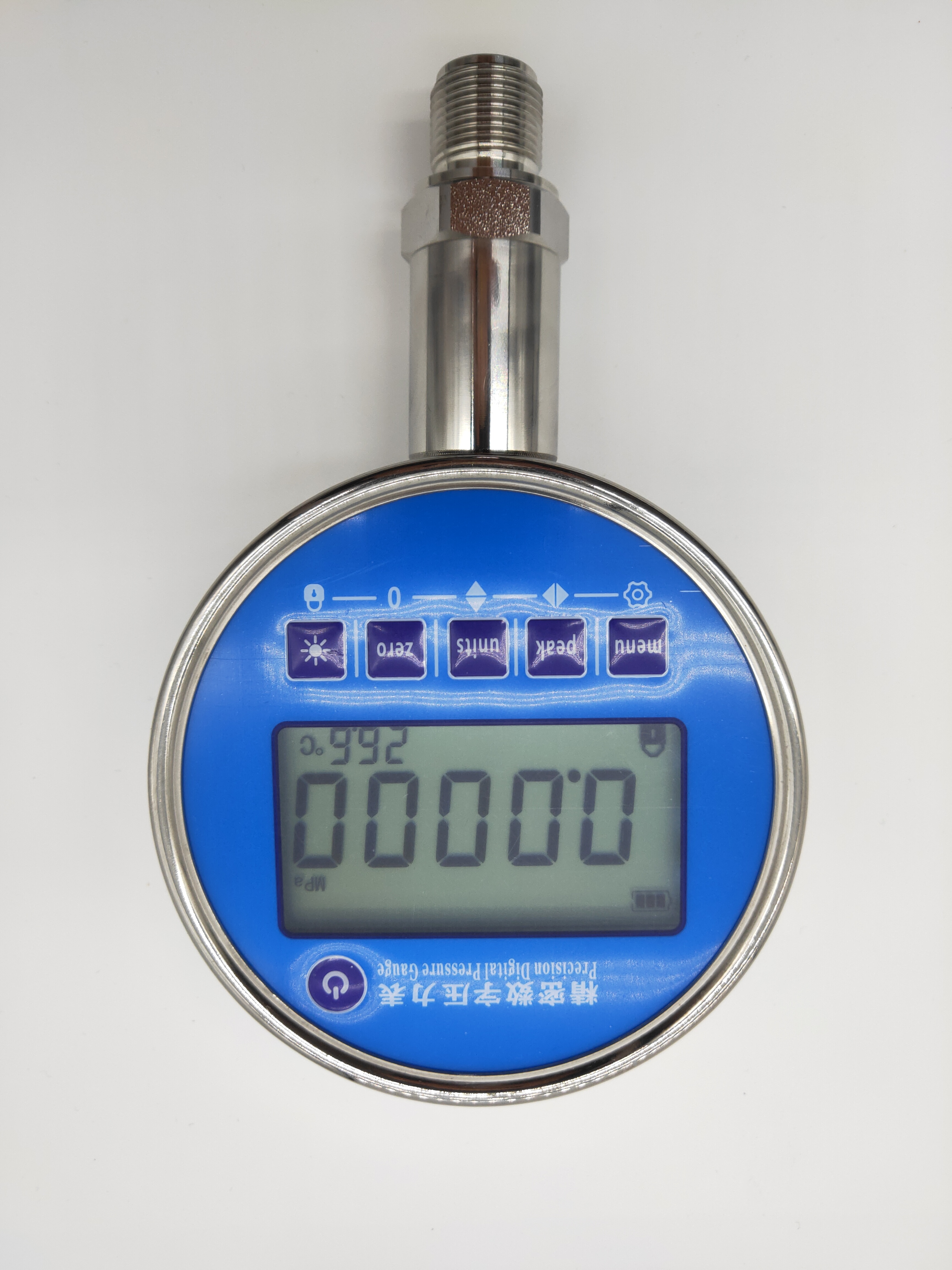

Key Description
① Open key: Used to open and close precision digital pressure gauge
② Menu key: Enter the function setting menu; exit the setting interface
③ Peak key: Enter the peak query interface; Peak hold interface switch;
④ Unit key: Unit switching key, used for unit switching
⑤ Clear key: Used for zero clear
⑥ Backlight key: Used to turn on the backlight; turn on or off the lock key.
Related Products

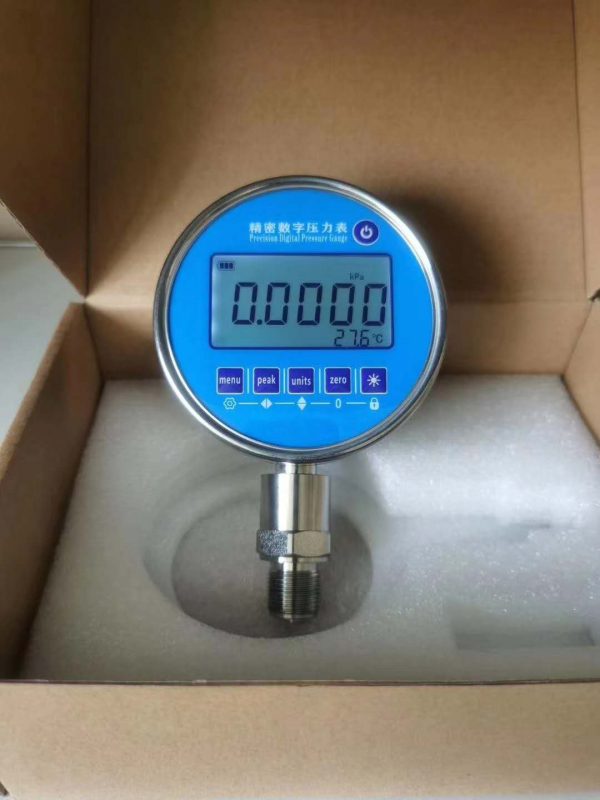

Packing&Shipping
