NDJ-1 Rotational Viscometer
| NDJ-1 Viscometer |  |
| Measure range | 1 ~100,000 mpa.s |
| Rotor types |
1#, 2#, 3#, 4# rotors |
| Rotor velocity | 6, 12, 30, 60 rpm |
| Measure Accuracy | ±5% (Newton liquid) |
| Power supply | AC (220-240V 50HZ / 110-120V 60HZ) |
| Dimension | 400×370×150mm |
| N.W. | 7.5kg |

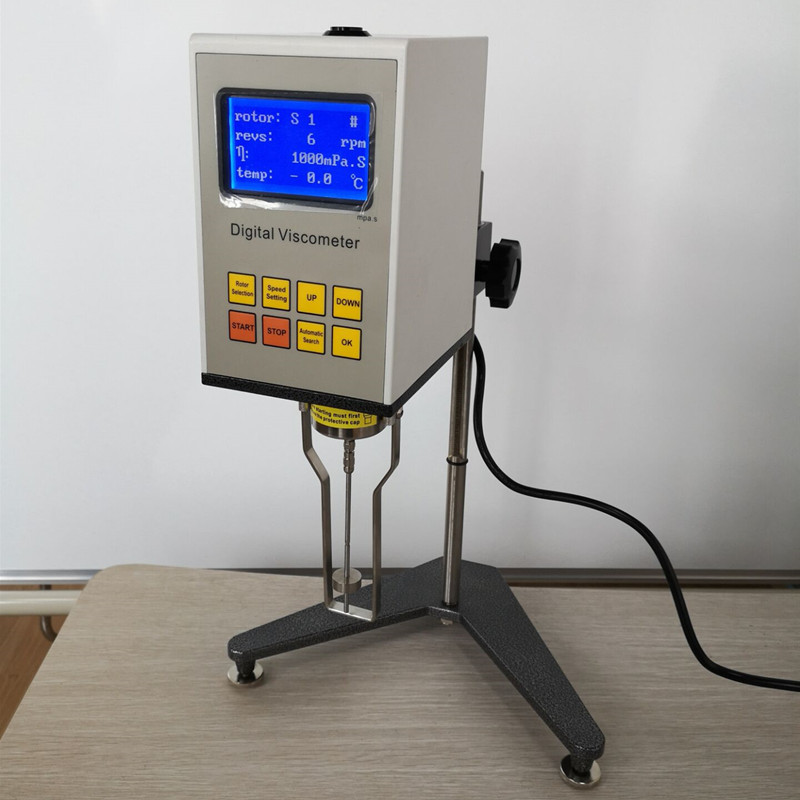

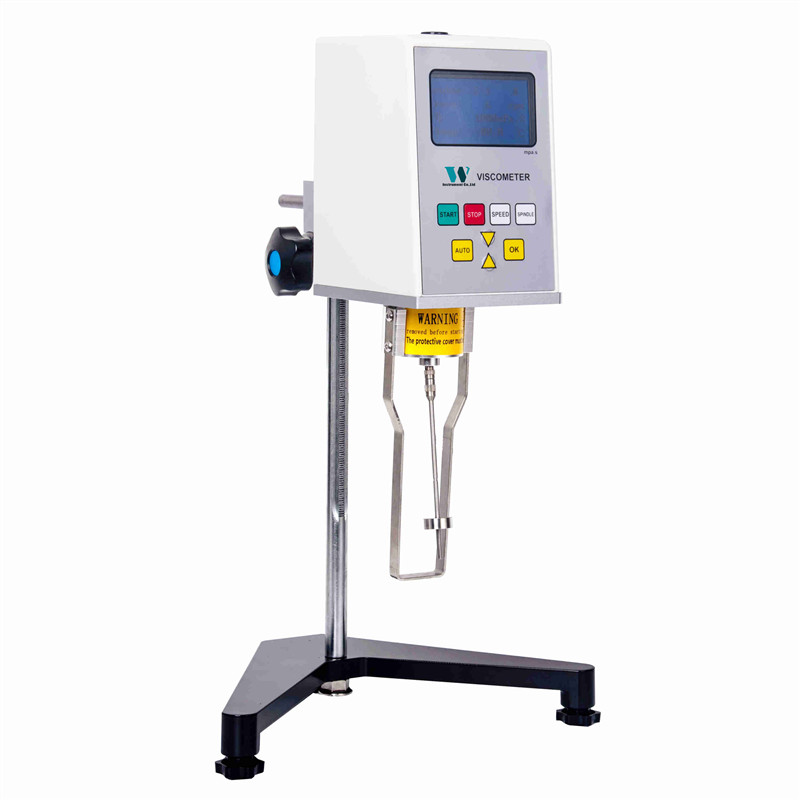

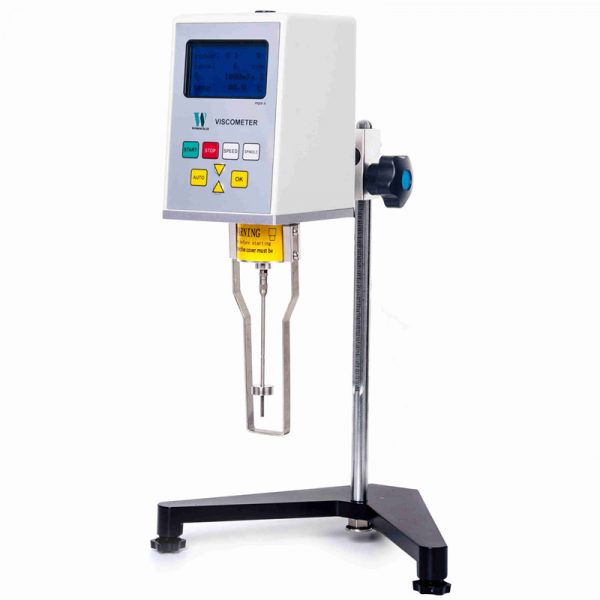

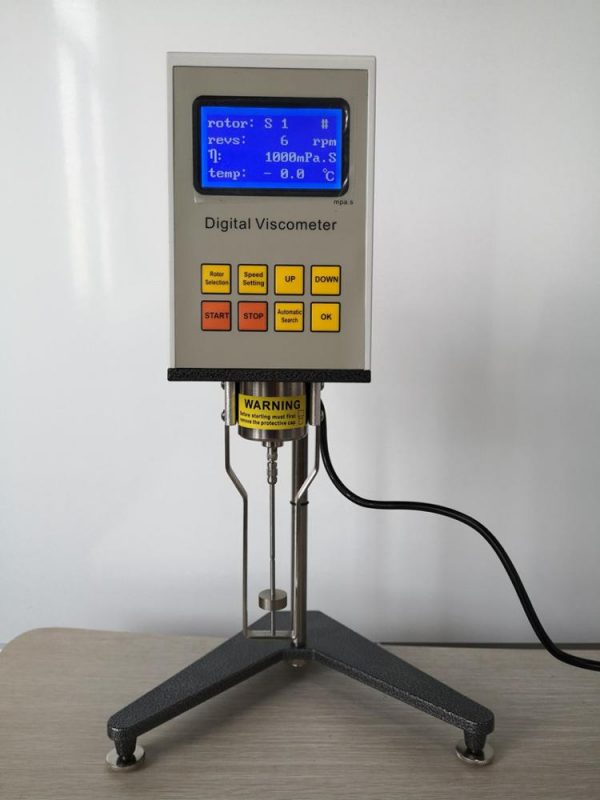

Rotational viscosity meter digital rotational viscometer
|
RV-1S |
RV-1T |
RV-2M |
RV-2T |
|
|
Measure Range |
10 – 100,000 mpa.s/cps |
10 – 2,000,000 mpa.s/cps |
||
|
Display |
LCD |
|||
|
Spindles Specification |
No. 0, 1, 2, 3, 4 ( Note: No. 0 is optional, test: 0.1-100 mpa.s) |
|||
|
Speed of Spindles |
6 / 12 / 30 / 60 rpm/min. |
0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min. |
||
|
Optional |
RS232 |
(1). RS232 Interface (2). Edit Software (3). Temperature probe (0-100 degree) |
RS232 |
(1). RS232 Interface (2). Edit Software (3). Temperature probe (0-100 degree) |
|
Automatic Switch |
free selection of proper rotating speed or spindles number. |
|||
|
Stable Cursor |
Strip-type cursor fully charged displayed when reading basically stable |
|||
|
Measure Tolerance |
<= ± 2% |
<= ± 2% |
||
|
Measure Repeatability |
<= ± 1% |
<= ± 1% |
||
|
Power |
AC 100-240V/50-60 HZ |
|||
|
Working Condition |
Temperature 5-40 degree; Relative humidity no more than 80% |
|||
|
Outline Dimension |
370×325×280 mm |
|||
|
Packing |
400×360×310 mm |
|||
|
Net / Gross Weight |
6.8 kg / 9kg |
|||
|
H.S. Code |
90278099 |
|||
Rotational Lab Viscometer

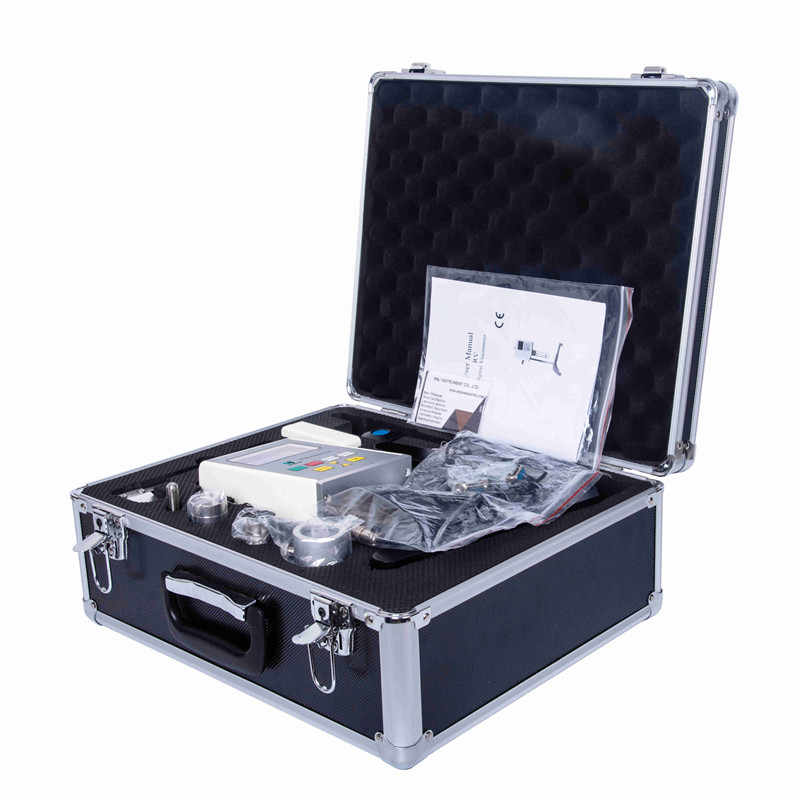

Packing of Digital Rotational Viscometer
 |
 |
