Product Description
Specification
|

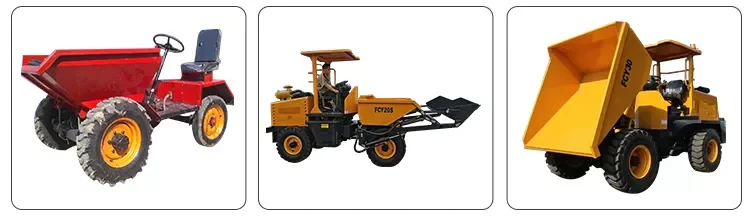

Model
|
FCY-10
|
FCY-20
|
FCY-30
|
|||
|
Performance
|
||||||
|
Rated Loading Weight
|
1000KG
|
2000KG
|
3000KG
|
|||
|
Bucket capacity
|
0.50m3
|
1. 2m3
|
1.50m3
|
|||
|
Wheel base
|
1700mm
|
1280mm
|
1360mm
|
|||
|
Thread
|
1300mm
|
1500mm
|
1960mm
|
|||
|
Gradeability
|
21
|
21
|
21
|
|||
|
Overall dimensions
|
2600*1450*2050mm
|
3017x1900x2465mm
|
3650x1800x2550mm
|
|||
|
Mini turning radicus
|
3500mm
|
4000mm
|
4000mm
|
|||
|
Walking speed
|
||||||
|
Forward gear 1
|
6.5km/h
|
6.5km/h
|
6.5km/h
|
|||
|
Forward gear II
|
11km/h
|
11km/h
|
11km/h
|
|||
|
Forward gear III
|
24km/h
|
24km/h
|
24km/h
|
|||
|
Backward gear
|
4.5km/h
|
4.5km/h
|
4.5km/h
|
|||
|
Engine
|
||||||
|
Engine model
|
ZS1100
|
CHANGCHAI390
|
Quanchai490
|
|||
|
Engine type
|
3 cylinders
|
3 cylinders
|
4 cylinders
|
|||
|
Cooler type
|
Water
|
Water
|
Water
|
|||
|
Rated power
|
12.1KW
|
20KW
|
38KW
|
|||
|
Tire size
|
Front tire 750-16
Rear tire 550-16
|
825-16
|
20.5/70-16
|
|||
|

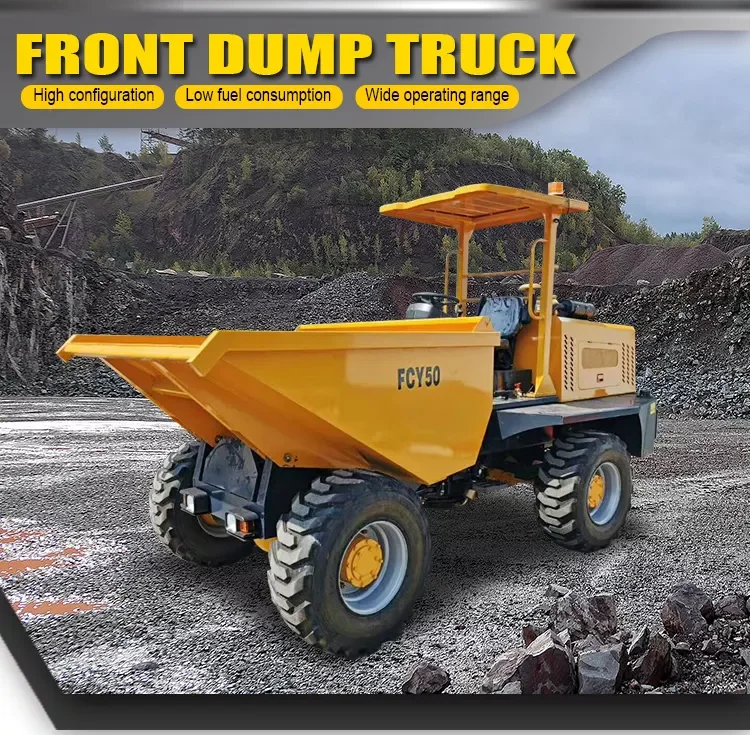

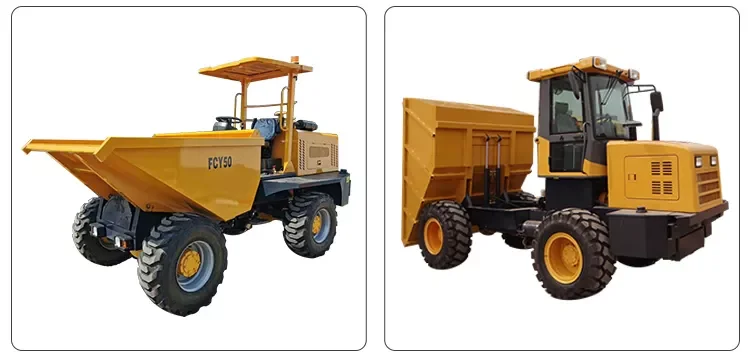

Model
|
FCY-50
|
FCY-70
|
||
|
Performance
|
||||
|
Rated Loading Weight
|
5000kg
|
7000kg
|
||
|
Bucket capacity
|
2.5 m3
|
3.5 m3
|
||
|
Wheel base
|
2000mm
|
2200 mm
|
||
|
Thread
|
1580mm
|
1580 mm
|
||
|
Gradeability
|
21
|
21
|
||
|
Overall dimensions
|
4300*1920*2650 mm
|
5250*2250*2700 mm
|
||
|
Mini turning radicus
|
4000mm
|
4000mm
|
||
|
Walking speed
|
||||
|
Forward gear 1
|
6.5km/h
|
6.5km/h
|
||
|
Forward gear II
|
11km/h
|
11km/h
|
||
|
Forward gear III
|
24km/h
|
24km/h
|
||
|
Backward gear
|
4.5km/h
|
4.5km/h
|
||
|
Engine
|
||||
|
Engine model
|
Weichaihuafeng 4102
|
Yuchai 60kw engine
|
||
|
Engine type
|
4 cylinders
|
4 cylinders
|
||
|
Cooler type
|
Water cooler
|
Water cooler
|
||
|
Rated power
|
47kw
|
60kw
|
||
|
Tire size
|
14-17.5
|
16/70-20
|
||
|

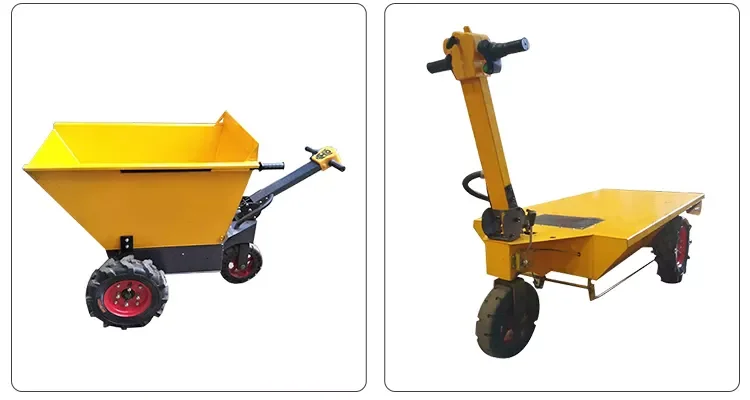

Dimensions
|
1250*700*1100mm
|
1450*780*1100mm
|
|
Product weight
|
130kg
|
75kg
|
|
Safe load
|
600-700kg
|
600-700kg
|
|
Gradeability
|
35°
|
45°
|
|
Operating hours
|
8-10h
|
8-10h
|
|
Charging time
|
8h
|
7-8h
|
|
Battery
|
48V20AH*4
|
48V20AH*4
|
|
Motor
|
800W
|
800W
|
Details Images
Product Application

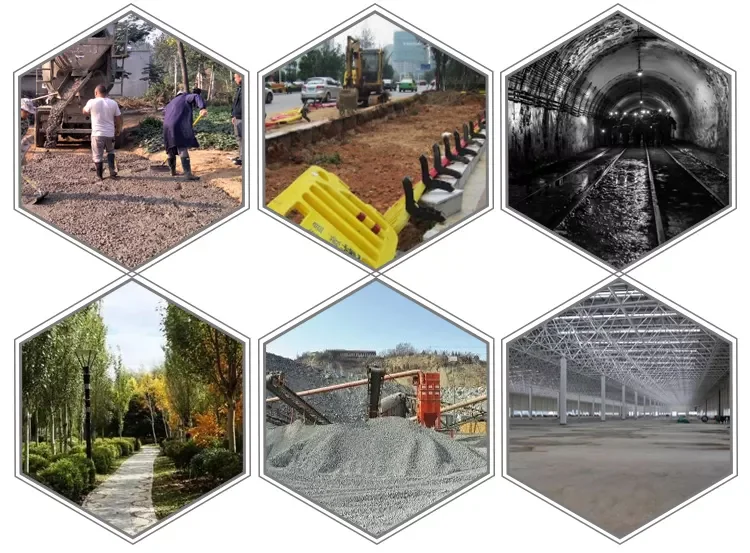

As a low-volume, short-distance transport of bulk materials for small site dumpers. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.
