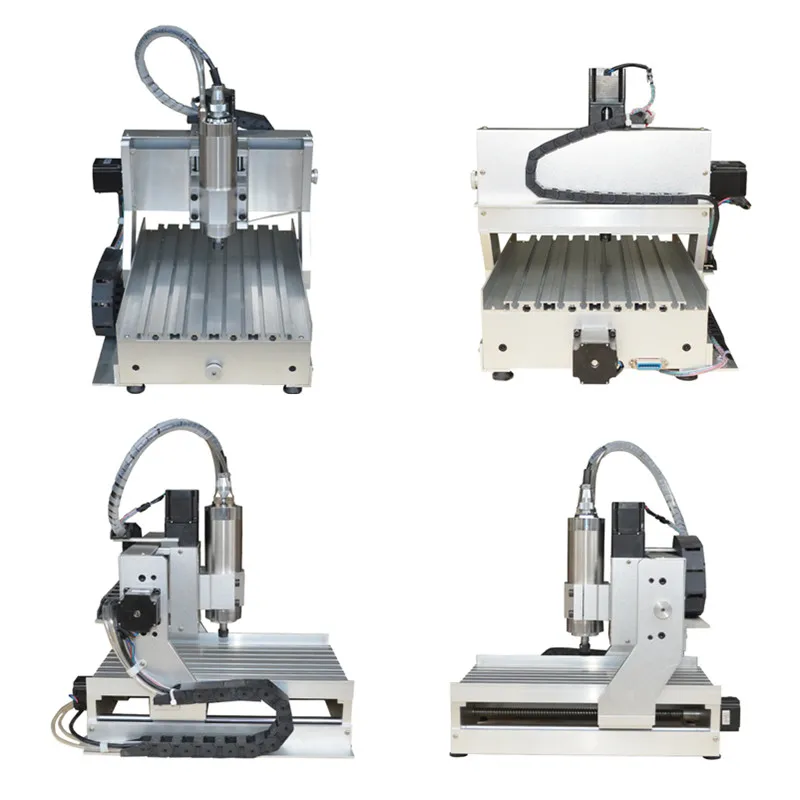

LY 3020Z Mini CNC Router Machine with 1500W VFD Spindle Motor USB Port Engraving Machine for Wood Metal Working



Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL

3020Z-VFD1.5KW

Attribute

3axis-LPT

3axis-USB

4axis-LPT

4axis-USB

Axis

3axis

3axis

4axis

4axis

Interface

LPT port

USB port

LPT port

USB port

Limit switch

Yes

yes

Yes

Yes

Tool auto-checking

Yes

yes

Yes

Yes

Spindle Motor:

1500W

1500W

1500W

1500W

Type of screw

Ball screw

Ball screw

Ball screw

Ball screw

Weigh

38

38

44

44

Machine Dimensions:

490X420X425mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

Spindle motor:

1.5KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °
