for USB Port and Water Tank CNC 3040 L-2.2KW 3Axis Mini CNC Lathe Machine Engraving Router Parallel Port

MODEL

With water tank 3040L-2.2KW 3axis

Machine Dimensions:

550 *660 * 600mm

Rack material:

45# steel (14mm and 12mm)

Table size

18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm.

Engraving area:

260 *380mm

Z-Axis Stroke:

120mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

140mm

Rail type:

Linear guide rail TRH20(more precise moving)

Type of screw:

Taiwan TBI Ball screw 1605

Spindle motor:

2.2KW VFD water cooling spindle ,0-24000r/min

Collet type:

ER20,1/8″(3.175mm) and 6mm Collet

Stepper motor and drive:

two-phase 57/3A

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Communication interface:

Parallel port or USB port

Toolauto-checking

Yes

Software Compatability:

Mach3 (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

105kg

Rotation Axis (4^th Axis)

Can add 4^th axis

—-

Attribute

3axis

4axis

Parallel port

Parallel port

USB port

USB port

Axis

3axis

4axis

4axis

3axis

Interface

Parallel port

Parallel port

USB port

USB port

Weigh

105kg

110kg

110kg

105kg

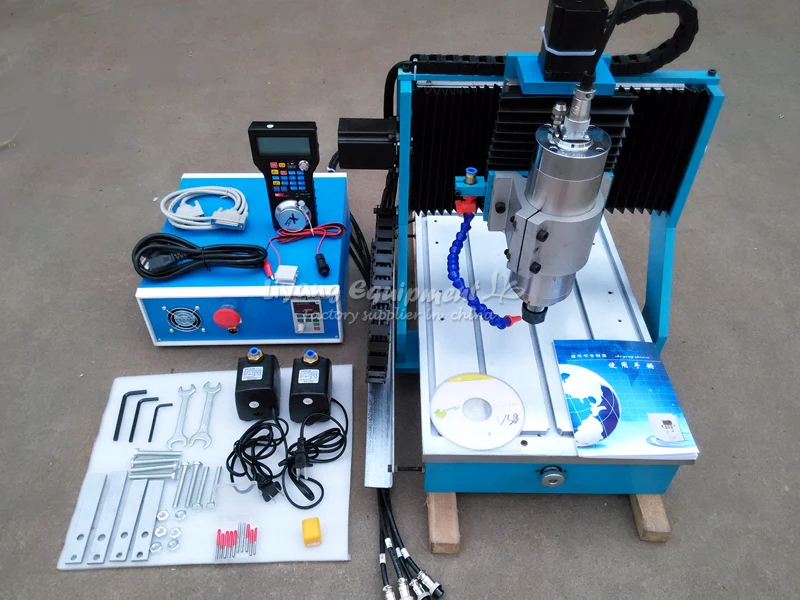

Packing list

1× Engraving machine

√

√

√

√

1× Control box

√

√

√

√

1× Power cable

√

√

√

√

1× Parallel port cable

√

√

1× USB port cable

√

√

1× Tool package
(tools 8 pcs, wrench 2pcs, clamp 4pcs)

√

√

√

√

1× Rotation axis

√

√

1×tool auto-checking instrument

√

√

√

√

1x water pump

√

√

√

√

1× CD (if not get, may be lost in customs, please contact us)

√

√

√

√
