Name: for 1.5KW 3 Axis Wood Aluminum Copper Metal Working LY CNC Router 3040 USB Ball Screw Milling Machine
SKU: 211603117019181
Availability: InStock

for 1.5KW 3 Axis Wood Aluminum Copper Metal Working LY CNC Router 3040 USB Ball Screw Milling Machine

ر.س4,738.22

Product Description

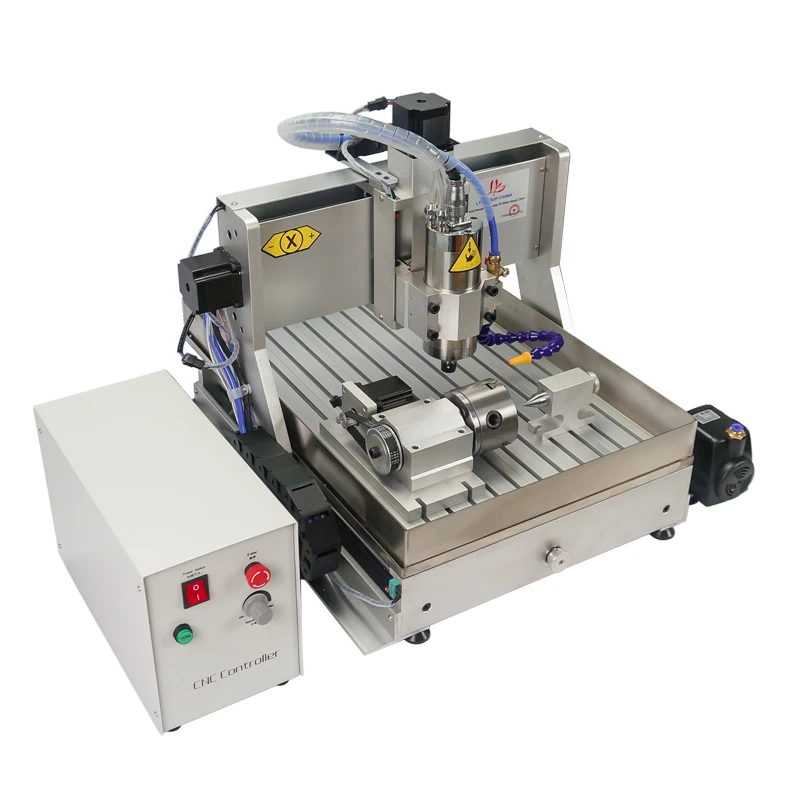

LY CNC Router 3040 1.5KW 3 Axis USB Ball Screw Milling Machine for Wood Aluminum Copper Metal Working

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL	3040Z-VFD1.5KW

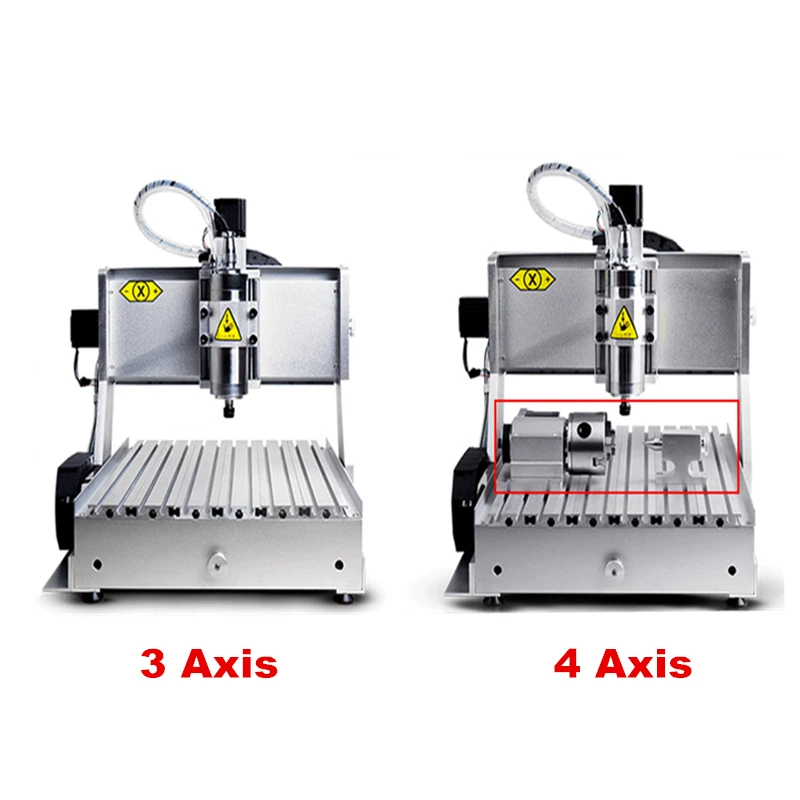

Attribute	3axis-LPT	3axis-USB	4axis-LPT	4axis-USB
Axis	3axis	3axis	4axis	4axis

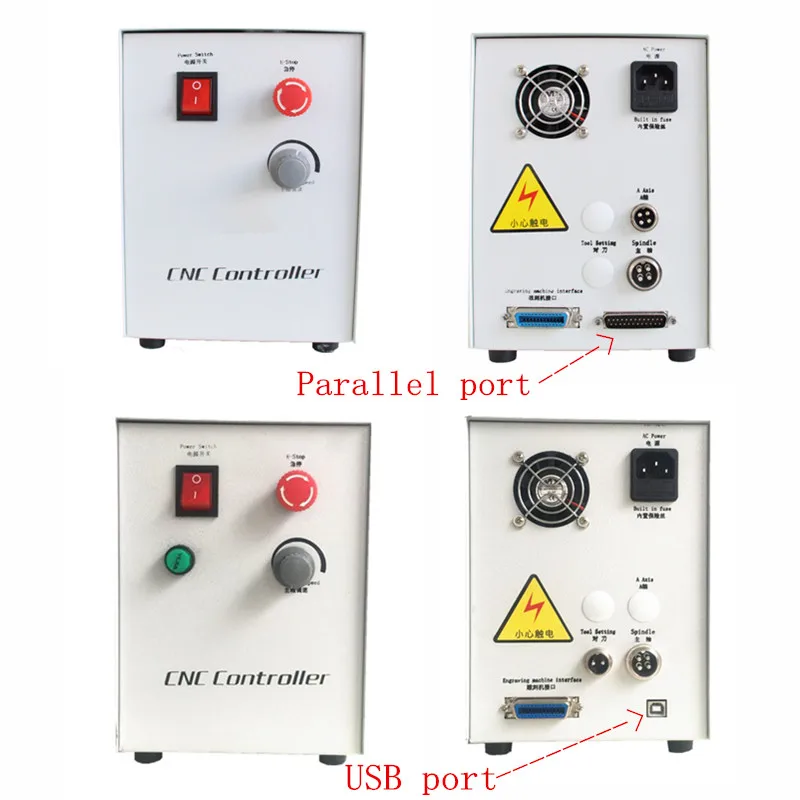

Interface	LPT port	USB port	LPT port	USB port
Limit switch	Yes	yes	Yes	Yes
Tool auto-checking	Yes	yes	Yes	Yes
Spindle Motor:	1.5KW	1.5KW	1.5KW	1.5KW
Type of screw	Ball screw	Ball screw	Ball screw	Ball screw
Weigh	46	46	52	52
Machine Dimensions:	600X510X480mm

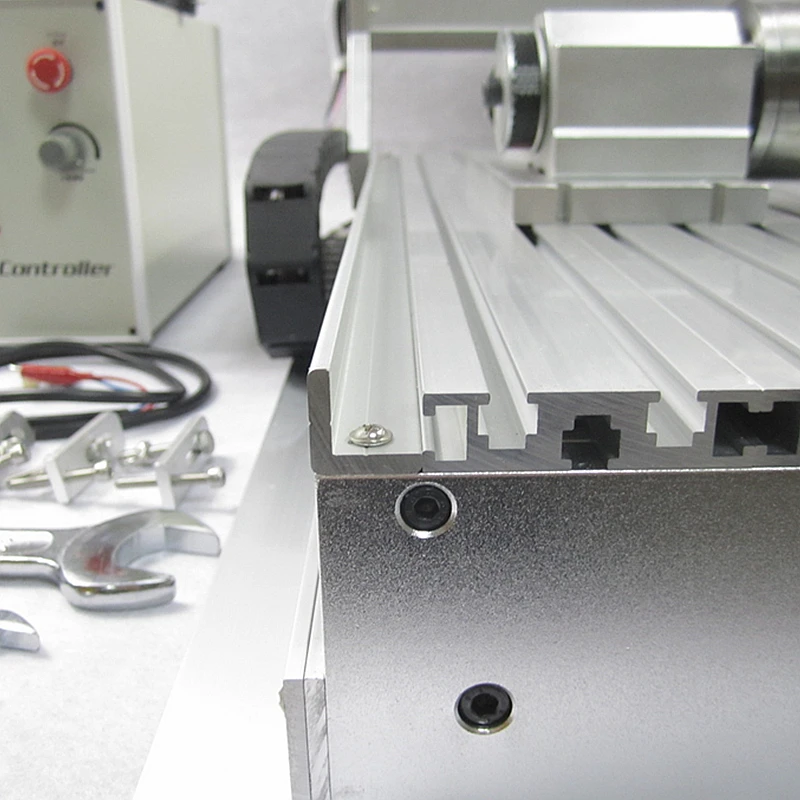

Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	400X300mm

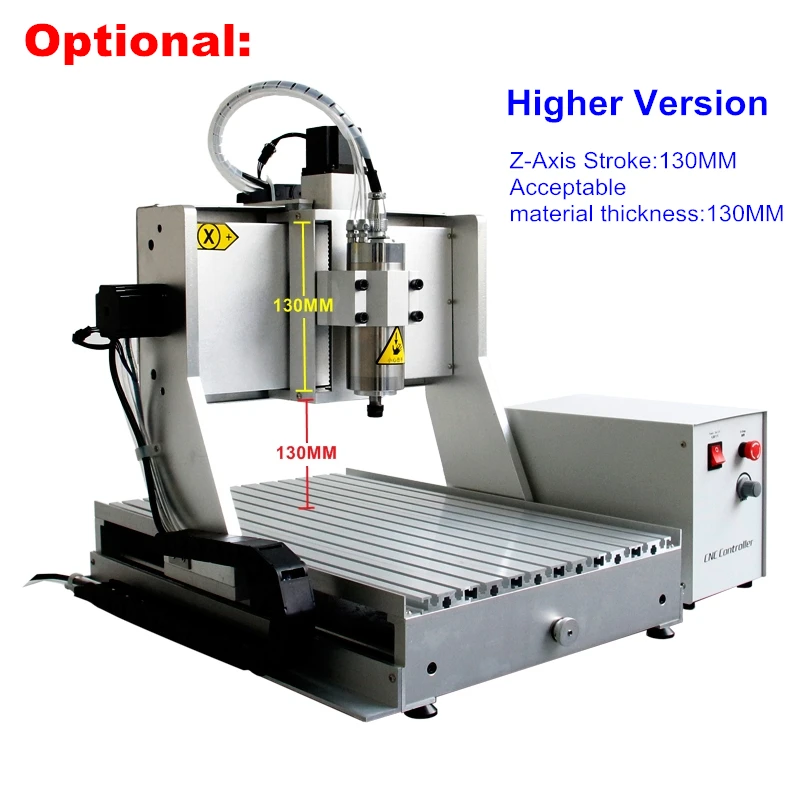

Z-Axis Stroke:	80mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤100mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw:	Ball screw 1605, Pitch 4mm

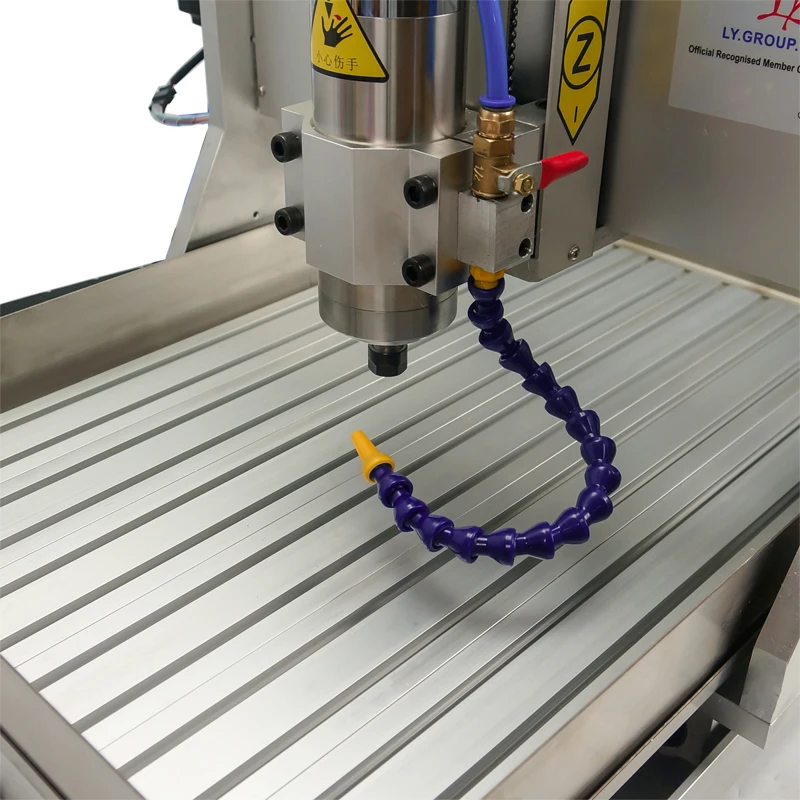

Spindle motor:	1.5KW VFD water cooling spindle , 0-24000r/min
Collet type:	ER11,1/8″(3.175mm) Collet
Stepper motor and drive:	two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Rotation Axis (4^th Axis) Description:	Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 °
