Product Description

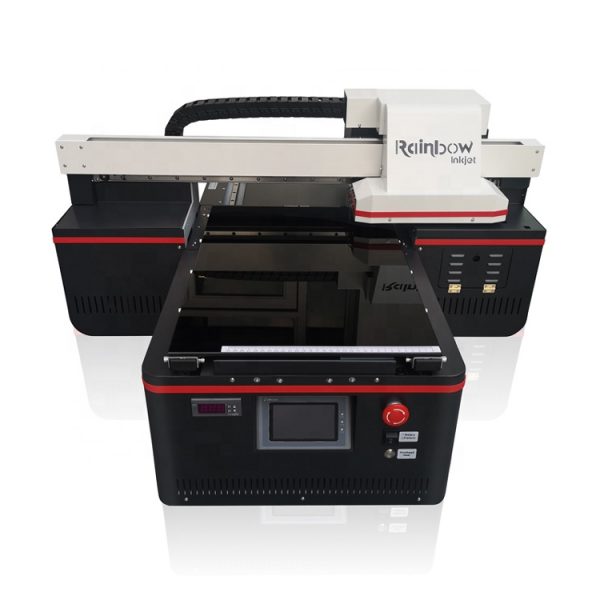

RB-4060 Plus UV mobile case printer
RB-4060 Plus UV flatbed printer can print on rotary and flat material like mugs with all color, CMYKW, White and Varnish at the same time. The strong frame and smart design is the highlight of this A2 UV machine. Please find the details as follows:
|
Model
|
RB-4060 Plus UV Flatbed Printer
|
|
Printhead number
|
Double DX8/4720 Print Heads
|
|
Max printing height
|
40*60cm
|
|
Optional printing color
|
Color+ White+Varnish
|
|
High quality speed
|
60 sec/page
|
|
Printing material
|
Glass, Tile, Acrylic, PP, Metal, Wood, Stone, Rotary material and so on.
|
|
Printing software
|
Maintop/ Photoprint
|
|
Picture Mode
|
PSD/ TIFF/ BMP/ EPS/ JPG
|
|
Environment
|
10-30℃, 50% humidity, clean
|
|
Computer system
|
Windows XP/ Windows 7/ Windows 10
|
|
Machine size
|
970mm*1010mm*560mm
|
|
Package size
|
1140mm*1090mm*760mm
|
|
Machine weight
|
Net.90kg / Gross.130kg
|
Ink alarm system
Rainbow newest version updated with 500 ml big tank for cyan, magenta, yellow,black,white and varnish; The white ink circulation system work constantly keep white ink from sediment and last the lifespan of print head. Besides, it has ink-alarming system which will mention you to add ink if the ink is in shortage
Smart waste ink switch in UV printer
Waste ink switch which is prevent waste ink from flowing back when the machine is not in use.
Water-cooled circulation system
The system ensures that the LED lamp maintains a constant temperature,
extending the LED lamp to 50,000 hours,avoiding high temperature hurt
Two big air-cooled fans
Two air-cooled fans maintain the temperature of the main board and the motor to ensure uninterrupted working of the machine and extend the lifespan of printer at the same time.
HI-WIN guide rail on X-axis
Rainbow new update A2 UV printer uses HI-WIN 3.5 cm straight square rail on X axis which very silence and firm
HI-WIN guide rail on Y-axis
Rainbow 4060 Plus new update with 2 pieces 4 cm HI-WIN straight square rail on Y-axis which makes printing smoother and machine lifespan longer
Double HI-WIN guide rail and screw guide on Z-axis
Rainbow 4060 Plus new version equipped with two pieces 4 cm HI-WIN straight square rail and one piece screw guide on Z-axis which makes sure the up and down has good load bearing after many years using
Add four pieces openable windows
Four openable windows at cap station, ink pump, mainboard and motors for trouble shooting, problem judgement without open the complete machine cover, that is important part when we consider a machine because maintenance in future is important
Ink heat function
Rainbow newest update UV printer has also ink heat system which helps to keep the ink temperature stable while on Winter, this is important for maintain the head, besides, flat and rotary printig is one button adjustable
Rotary printing device
Rainbow A2 uv printer with rotary printing device for mug and bottles is made from full aluminum rather than metal, it 's heavy and firm, Also, it's not platform driver but motor drive which makes the printing resolution on rotary is highest with no deviation
Two layers metal sheet
This is the newest design, not only prevent the grating sensor from dust and influence printing resolution , but also avoid the high-transfer cost by heavy cover
Double DX8 head
Double DX8 heads for all color printing with quick speed and 2880 dpi resolution
Samples
Customer Feedback
Our Company
Product Packaging
|
Model
|
RB-4060 Plus A2 UV Flatebed Printer
|
|
Printer size
|
97*101*56cm
|
|
Shipping size
|
114*109*76cm
|
|
Net weight
|
90kg
|
|
Gross weight
|
130kg
|
|
Packing
|
International Wooden Case
|
|
Shipping Methods
|
Express,Sea,Air,Land shipping
|
Related Products
RB-4030 Pro A3 UV Printer
95.6% Alibaba sales ranking
RB-6090 A1 UV Printer
97.2% Alibaba sales ranking
RB-10075 A1 UV Printer
96.6% Alibaba sales ranking
FAQ
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet.
If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet.
If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
