Product Description
Flygoo Touch Screen Ozone Meter Gas Ozone Analyzer Ozone Detector
FGUV-300 is high-precision ozone analyzer, It efficiently measures ozone, and we can offer it at a lower price because of its compacted size.
It has variety of measurement range options:0-300g/Nm3 (0-200g/Nm3，0-100g/Nm3, 0-50g/Nm3), high accuracy, stable data, good repeatability, suitable for ozone generator company, medical ozone concentration analyzer, laboratories, ozone online detection.
24/7 Working
Accuracy
Low Price
Signal Output
Data Storage
Compacted
Specification
|
Detection Range
|
0-300mg/L ; 0-200mg/L ; 0-100mg/L ; 0-50mg/L
|
|
Measurement method
|
UV light double optical receiver with high precision measurement
|
|
Ozone Concentration Unit
|
mg/L , g/Nm3, %wt, PPM
|
|
Resolution
|
0.01 mg/L
|
|
Precision
|
0.5%
|
|
Input gas flow
|
0.5L±0.2L/min
|
|
Input pressure
|
<0.1Mpa
|
|
Concentration Error
|
Max. 0.5％
|
|
Line Deviation
|
Max. 0.2％
|
|
Zero Shift
|
<±0.3%.FS
|
|
Voltage
|
110V-240V / 50Hz,60Hz
|
|
Response Time
|
signal 0.03s, display 0.3s
|
|
Gas Input and Output Diameter
|
Φ6 (6mm*4mm)
|
|
Dimension
|
160mm(height）×260mm(width)×300mm(depth)
|
|
Net Weight
|
8.0kgs
|
|
Warranty
|
12 months
|
|
Communication mode
|
RS485
|
|
Output Signal
|
4-20mA (double way alarm of low and high concentration)；printer interface;
|
|
Relay Signal
|
High alarm point relay signal; Low alarm point relay signal
|
|
Remarks
|
1mg/L=1g/Nm3=467PPM
|
|
Packing List
|
01* ozone analyzer
01* ozone destructor
01* gas filter
|
Touch Screen Display
Multiple Output Wiring
Feature
DISPLAY AND TOUCH SCREEN
● Fast response speed
● Import German long-life ultraviolet lamp (253.7 nm wavelength)
● High measurement accuracy
● Simple operation
● UV light double optical receiver with high precision measurement
● Compacted Design
● Online ozone concentration detection
● Intelligent Compensation：built in temperature and pressure compensation and display
● Provide customized Logo service
● English version
MULTIPLE OUTPUT WIRING
● 1) 4-20MA+ Current signal output
● 2) 4-20MA- Current signal output
● 3) RS485+communication interface
● 4) RS485-communication interface
● 5) ALARM HIGH: NO
● 6) ALARM HIGH: COM
● 7) ALARM HIGH: NC
● 8) ALARM LOW : NO
● 9) ALARM LOW: COM
● 10) ALARM LOW: NC
● 11) + FLOW SIGNAL+
● 12) – FLOW SIGNAL-
● 13) + FUNCTION +
● 14) – FUNCTION –
● 2) 4-20MA- Current signal output
● 3) RS485+communication interface
● 4) RS485-communication interface
● 5) ALARM HIGH: NO
● 6) ALARM HIGH: COM
● 7) ALARM HIGH: NC
● 8) ALARM LOW : NO
● 9) ALARM LOW: COM
● 10) ALARM LOW: NC
● 11) + FLOW SIGNAL+
● 12) – FLOW SIGNAL-
● 13) + FUNCTION +
● 14) – FUNCTION –

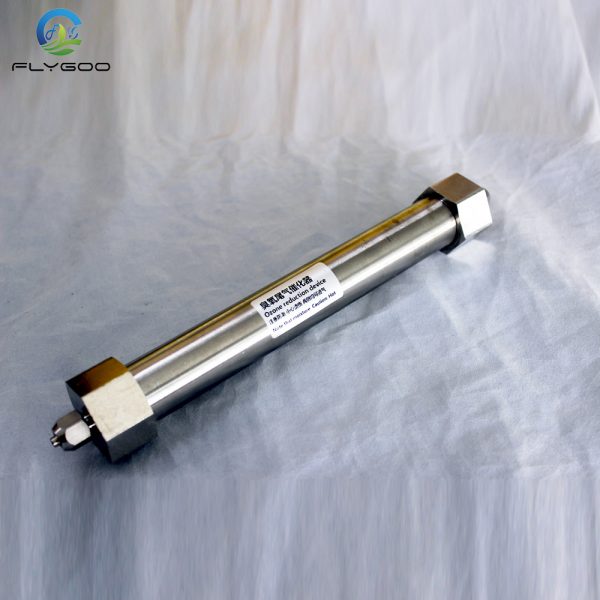

QUALITY OZONE DESTRUCTOR
● The ozone catalytic is imported from Russia, which is super good quality and reliable.
● External case: Stainless steel 316L
● It coverts ozone into oxygen rapidly without emitting any toxic gas.
● Lifespan: 3-5 years (Testing in our factory)
