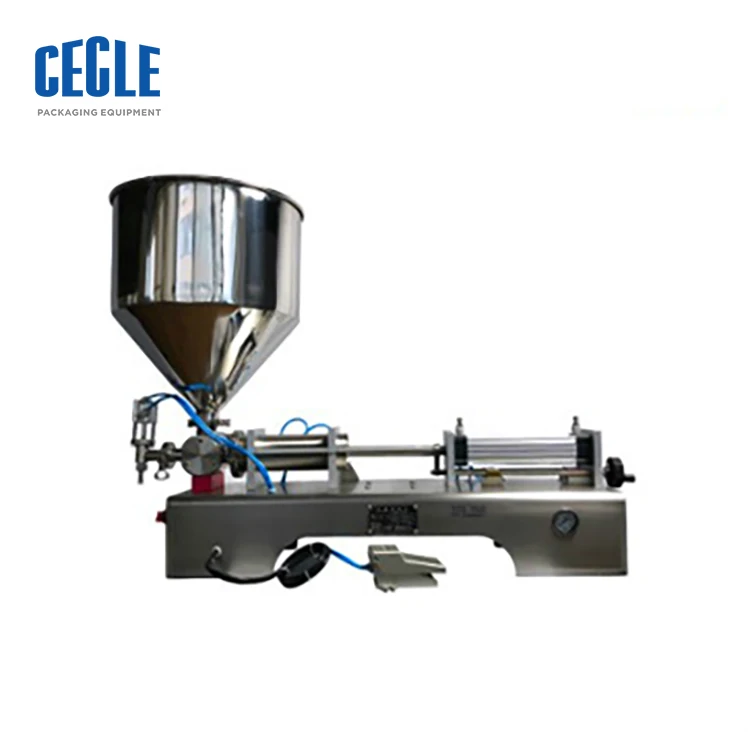

Name: FF2 Semi-automatic Bottle Filling Machine for Water, Oil, Cream, Cosmetic and Paste Products
SKU: 212356940019181
Availability: InStock

Product Description

Features:

Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations; The diameter of the filling nozzle optional within 3mm-28mm;

Piston type filling, can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;

Use silica gel O-ring(cam bear 200 Celsius degree), comply with the food safety; Can optional silica gel ring or rubber sealing ring, rubber sealing ring used for anti-corrosion produce;

One head with one cylinders, filling head can optional single head, two head;

Can optional the machine model: 10-100ml 30-300ml 50-500ml 100-1000ml 250-2500ml 500-5000ml;

Application:

Use for filling liquid and paste material, such as water, cooking oil, juice, milk, yoghourt, sauce, cream, shampoo, chili paste, tomato paste, paste, liquid of detergent etc;

Adopt Airtac pneumatic components, full pneumatic drive does not need electrical power, need to contact to the air compressor; safety explosion-proof type, simple operation, high filling accuracy;

Parameters:

Model:

FF2-50

FF2-100

FF2-300

FF2-500

FF2-1000

FF2-2500

FF2-5000

Filling range:

5-50ml (0.17-1.7oz)

10-100ml (0.34-3.38oz)

30-30ml (1-10oz)

50-500ml (1.69-16.9oz)

100-1000ml (3.38-33.8oz)

250-2500ml (8.45-84.54oz)

500-5000ml (16.9-169oz)

Filling nozzle:

one nozzle

Filling speed:

10-40 times/min

Filling accuracy:

within 1%

Air pressure:

0.4-0.6mpa

Control mode:

Electric and Pneumatic

Packaging dimension:

101*33*35+41*41*50cm

122*40*39+54*54*54cm

Weight:

48/35kg(105/77lb)

60/47kg（132/103lb）

Model:	Automatic powder filling line
Composition	Including bottle distributing machine, powder filling machine, capping machine and labeling machine.
Suitable Products	Vial powder, auger powder, spices powder and many powder products.
Filling Container	Including bottles, vial bottle, jar and so on.
Filling Speed	20-60 times/min.
Automaitc Grade	It’s full automatic filling line.

Model:	Automatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water, many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It’s full automatic liquid filling machine.

Model:	Automatic paste filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It’s full automatic paste and liquid filling machine.

Model:	Pneumatic paste and liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It’s semi automatic paste and filling machine.

Model:	Pneumatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It’s semi automatic filling machine.
