FAQ
Q1: Do you have own factory ?
We have establishes factory since 2011. We are located in Guangzhou ,China.
Q2: Could you help me to operate the machine ?
Sure ,we will send you an operation file and some videos how to operate it.ou also can contact our salesman to teach you face to face on Whatsapp.this Somrt X2 is touch screen type ,if you can use your mobile phone,you also can use our machine .
We have establishes factory since 2011. We are located in Guangzhou ,China.
Q2: Could you help me to operate the machine ?
Sure ,we will send you an operation file and some videos how to operate it.ou also can contact our salesman to teach you face to face on Whatsapp.this Somrt X2 is touch screen type ,if you can use your mobile phone,you also can use our machine .
Q3: How long the cartridge can be used ?
We use hp45 ink cartridge,45ml, it can print about 10 thousands time for date code,it depend on the size and ink quantity of characters.after run out of ink ,you need to change a new cartridge.every machine with one black cartridge.
Q4: Do you support OEM/ODM?
Yes, we can develop the styles base on customer's requirement and put your logo on the editing interface or the machine .
Q5:How to ensure that I received the machine undamaged?
Firstly, our package is a protector for shipment, we must confirm machines are undamaged before delivery, and we've bought insurance for you, we will take the responsibility if machines damaged.
Q6:what is your after-sale service for that machine?
My friend,we will offer professional stuff for after-sale service ,you can give our a call or video call to express your problem
so that we can help you,and we set up one year warranty for the machine
|

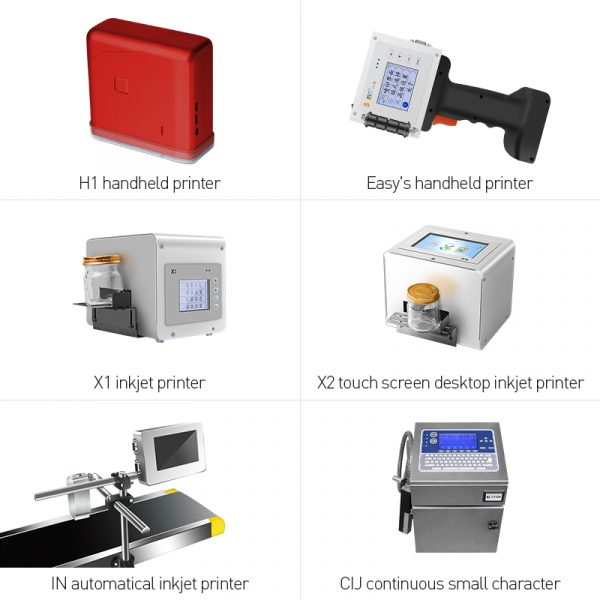

SPECIFICATIONS OF SOMRT
|
|||||||
|
Brand Name
|
Somrt (OEM)
|
||||||
|
Model
|
|||||||
|
Spacial function
|
table type(print one by one by hand)
Suitable for Small objects
Variety shape of products Convenient to operate Save your time and energy Offer products shelf to hold the products choose pedal or sensor to trigger to print
Printing head can be adjust out or inside 3mm Can print on the top of bottle/neck of bottle/side of bottle/bottom of bottle |
fully automatic type Printing on conveyor
suitable for mostly products
the most fast way
Can print on the top of bottle/neck of bottle/side of bottle/
|
handheld type
printing one by one by hand
suitable for flat and big products
—————————–
handheld onliine
printing on conveyor
|
||||
|
Language
|
Simplified Chinese, Traditional Chinese, English, Korean (other languages can be customized)
|
||||||
|
Input Method
|
Pinyin, Five-stroke, Handwriting (Other Country Input Method can be installed)
|
||||||
|
Dimension
|
130*180*140mm
|
180 *144 *155mm
|
180*30*130mm
+120*30*115mm
|
130*60*260 mm
|
|||
|
Net Weight
|
2.5KG
|
3kg
|
1.2kg
|
0.886kg
|
|||
|
Screen size
|
2.8 inch display screen
|
5inches touch screen
|
5 inch
|
2.8 inch display screen
|
|||
|
Data Editing
|
Bluetooth, Android mobile app,USB data line, U disk import (WIFI can be customized)
|
Touch Screen System Input
|
Touch Screen System Input
|
Bluetooth, Android mobile app,USB data line, U disk import (WIFI can be customized)
|
|||
|
External Interface
|
android mobile app interface, Sensor/pedal interface, USB transfer interface, USB flash disk interface
|
touch screen Interface, Sensor/pedal interface, USB transfer interface, USB flash disk interface
communication protocol is support customize
|
touch screen interface, Sensor interface, USB transfer interface, USB flash disk Interface, encoders, warning lights,
communication protocol is support customize
|
android mobile app interface, Sensor/pedal interface, USB transfer interface, USB flash disk interface
|
|||
|
Operating Voltage
|
220V
|
||||||
|
Effective print width
|
60mm
|
60mm
|
1meter
|
1meter
|
|||
|
Effective printing height
|
12.7mm
|
12.7mm
|
Single head：12.7mm(1-4heads)
|
12.7mm
|
|||
|
Speed of printing
|
40pieces/min
|
40pieces/min
|
80m/min
|
60pieces/min
|
|||
|
Resolution
|
300-600 DPI
|
||||||
|
Printing Lines
|
Arbitrary Lines in 12.7mm Height Range
|
||||||
|
Minimum characters
|
0.8mm (English numerals, Chinese 2 mm or more)
|
||||||
|
Sprinkler expansion
|
±3mm
|
±3mm |
0mm
|
0mm
|
|||
|
The number of files stored
|
1. Ordinary documents: 100+
2. Number of segments: 1-15 3. Variable database: (not yet available) |
||||||
|
basic function
|
Text, graphics, production date, valid date, two-dimensional code, bar code, serial number
|
||||||
|
Font
|
default font style, Arial,Italics,Blackbody,Bold,dot matrix, and dot matrix font generation function, self-adjustable point radius, pitch, slope, etc.(you also can download other font from computer)
|
||||||
|
Automatic Spray Printing
|
Production Date, Valid Date, Sequence Number, Count, Batch Number,Graphics,Text
|
||||||
|
Sequence number
|
1-8 bits (increment, decrement, number of steps)
|
||||||
|
Variable data
|
barcode, two-dimensional code, text, pattern (support customize)
|
||||||
|
Variable data production
|
TXT, Excel, word, graphics converted into data and imported into equipment by U disk printing (support customize)
|
||||||
|
Printing material
|
pipe ,plastic parts ,metal,aluminum, ceramics,bag,bottle ,can,glass
|
||||||
|
ink cartridge
|
HP 45 black fast dry ink cartridge/water base ink cartridge
|
||||||
|
Ink volume
|
45ml
|
||||||
|
Ink color
|
black ,green, blue ,yellow,white,red.invisible
|
||||||
