Factory direct supply High Quality Valve Large Tonnage Hydraulic Jacks
Mono jack Description:

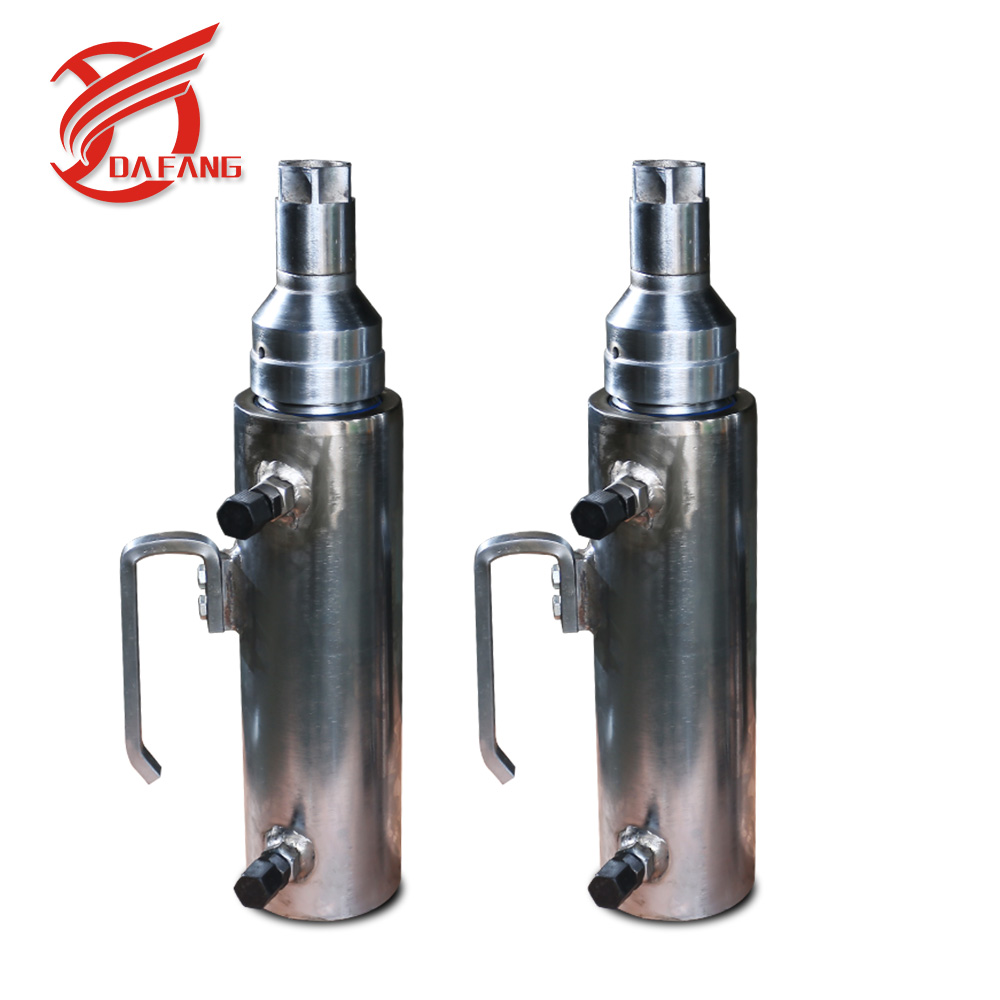

Mono stressing cable prestressing construction mini hydraulic jack are a multipurpose prestressed tensioning device, easy to operate. Mainly used for single hole tension. also used for,porous preloaded , tensioning and troubleshooting,and can be applied to a variety of sizes of high strength steel wire and steel strand. Especially for high-altitude operations, easy to carry.Steel stranded wire reserve length is 200 mm can be tensioned , can save prestressed tendon material.
| Type | Nom. Oil Pump(MPa) | Nom. Force(KN) | Stroke(mm) | Weight(Kg) | Over Size(mm) | Dia. of the Center Hole(mm) |
| QYC140 | 50 | 140 | 180 | 13 | 93*400 | – |
| QYC230 | 63 | 230 | 200 | 20 | 105*561 | 18 |
| QYC270 | 63 | 270 | 200 | 22 | 108*566 | 18 |
