Product Description
Product Application

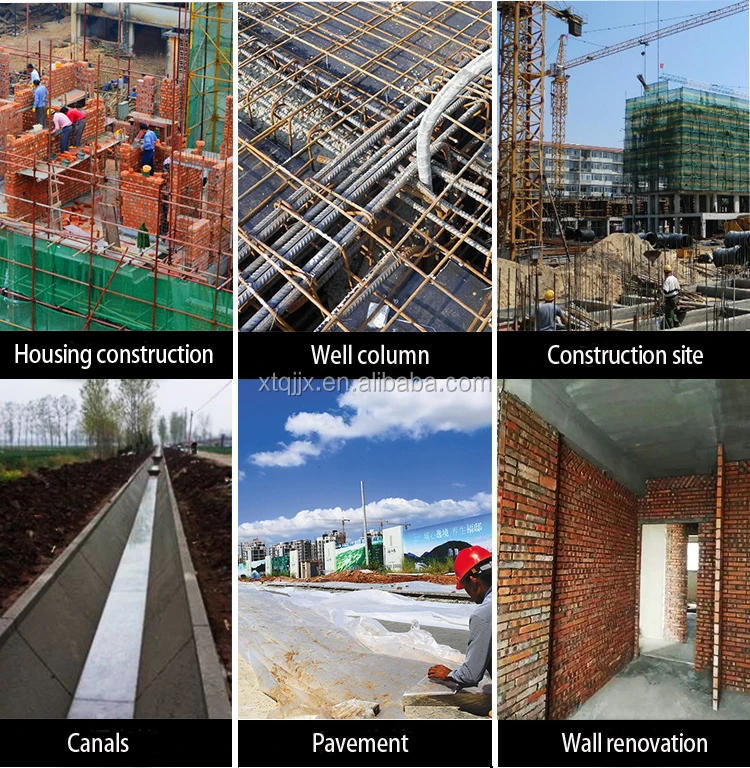

Concrete pump is a kind of composite pumping requirements of concrete pump, through the horizontal or vertical installation of pipelines, the scene of the continuous conveying to the pouring fine stone concrete conveying equipment, widely used in the second post filling, floor heating engineering, roofing, wall of high-rise building, reservoir and hydropower station, port, wharf, basic processing soft foundation reinforcement grouting subway tunnel backfill grouting bolt support in mine construction.

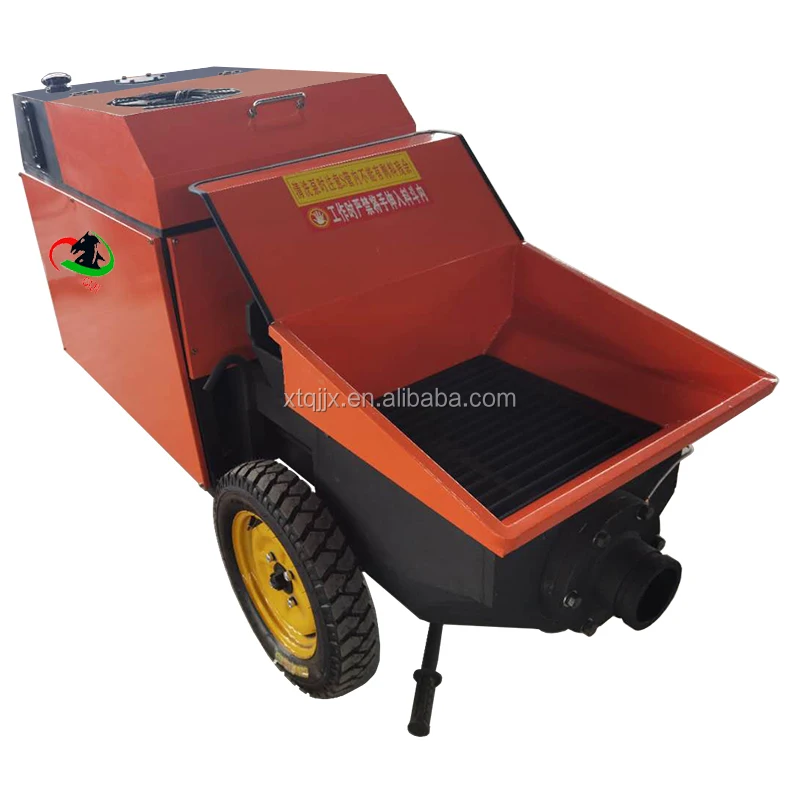

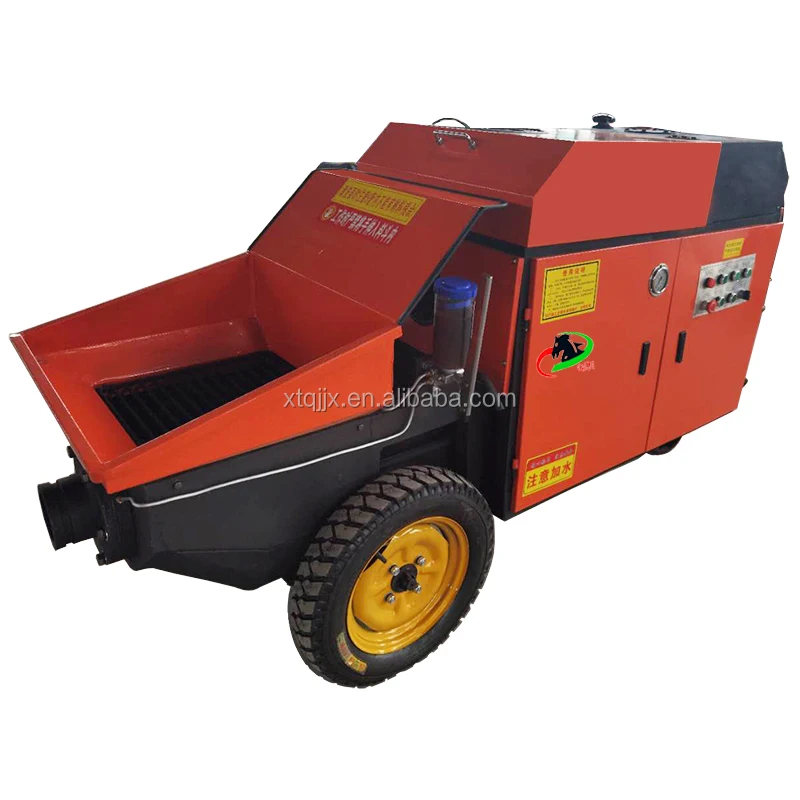

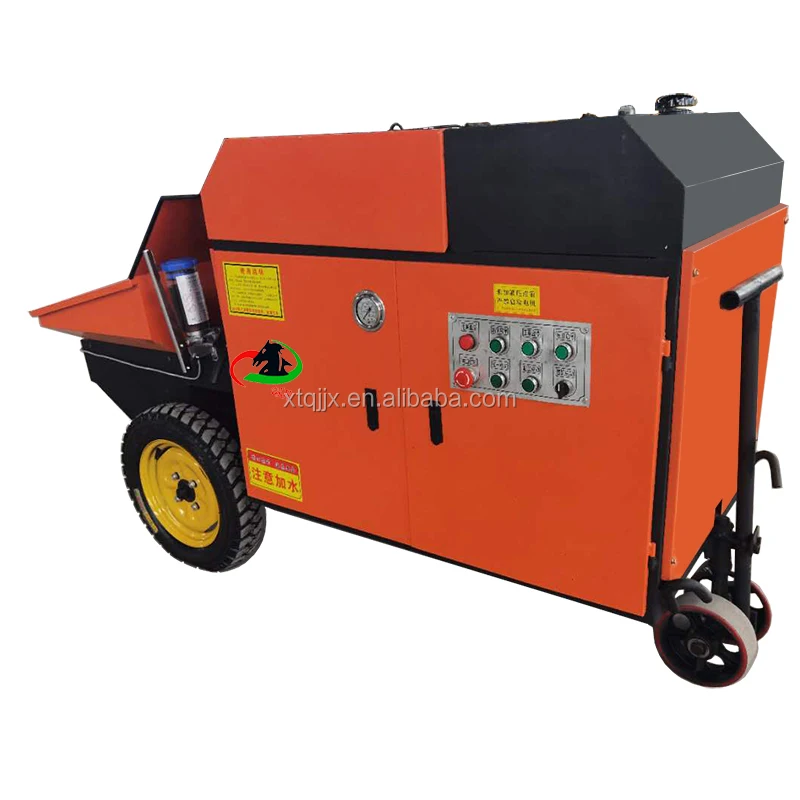

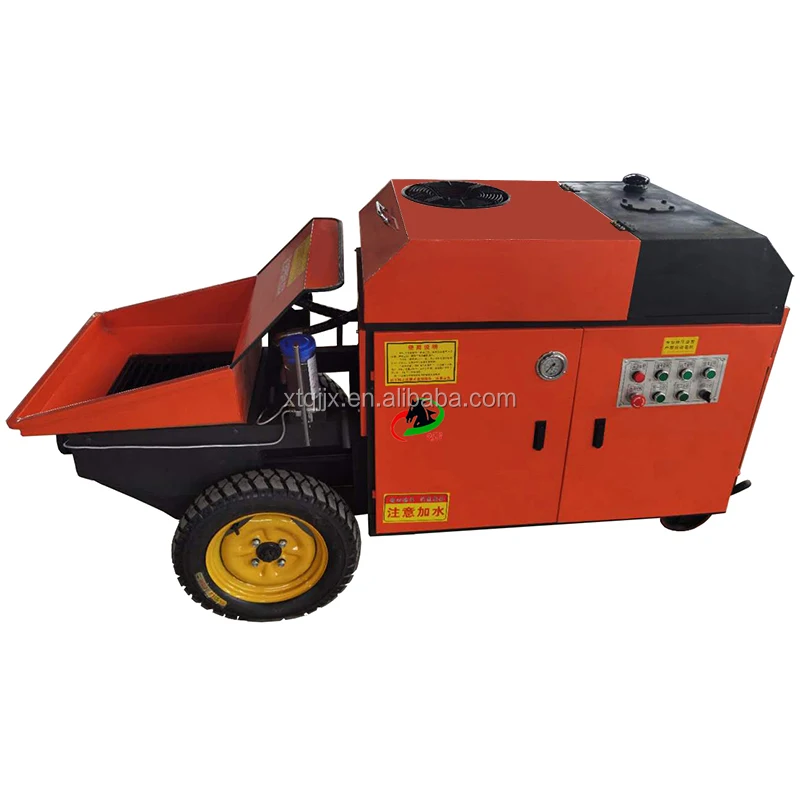

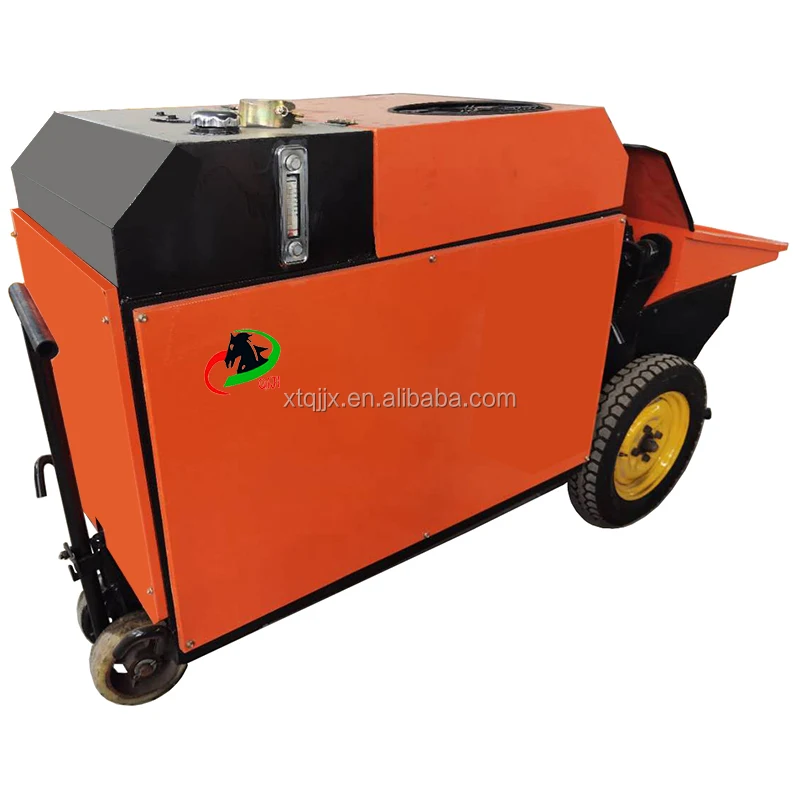

Machine
Name: concrete pump
Brand: QIJI
Original: CHINA
This pump machine mainly for some special construction conditions or narrow space construction conditions by the size of the equipment and cause inconvenience or difficult to finish the construction schedule carefully designed high-tech products.
Brand: QIJI
Original: CHINA
This pump machine mainly for some special construction conditions or narrow space construction conditions by the size of the equipment and cause inconvenience or difficult to finish the construction schedule carefully designed high-tech products.
Main Features
(1) the use of the pump power is very small, only 11 kw, in under the condition of no power supply can work only with a small generator.
(2) is a small volume of concrete pump, is the ideal choice for many narrow construction environment.
(3) the pump light weight, mobile convenience.
(4) pump configuration is high, the hydraulic operation, stable performance, compact structure, low fault rate and long service life.
(5) the pump price is materially beneficial, a miniature mortar pump, micro fine stone concrete pump, micro concrete pump for the customer to choose three configurations.
(6) using automatic air compressor piston structure technology, working pressure pumping distance, the height at the pump.Second post casting special pk traditional infusion pump construction process:
1, a reduction of construction equipment construction work of 200 root/day (every pillar in 0.18 cubic), equivalent to 48 perfusion workers a day of work.By comparing the reduction 90% of the construction of equipment can be reduced perfusion work cycle, and can save thousands of dollars of artificial daily wage.
2, constructional column construction equipment one operator can start, but traditional perfusion construction working strength is big, therefore always faced with lack of engineering construction, recruitment difficulties and other issues. Good quality, good service, to upgrade become a kind of enjoyment
2, constructional column construction equipment one operator can start, but traditional perfusion construction working strength is big, therefore always faced with lack of engineering construction, recruitment difficulties and other issues. Good quality, good service, to upgrade become a kind of enjoyment

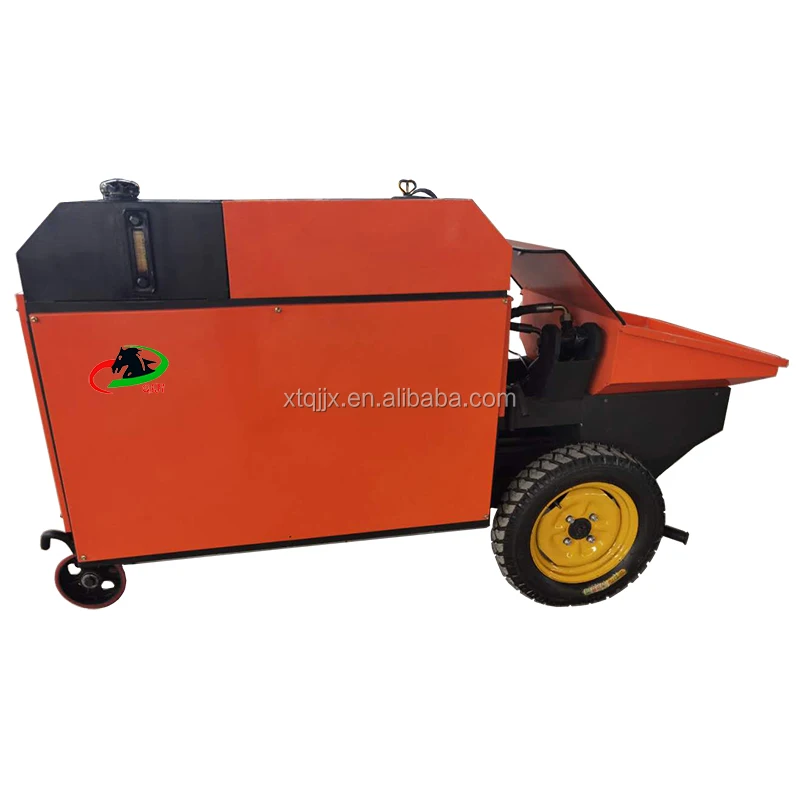

Concrete pump QJ-HB-2
|
||||||
model
|
QJ-HB-2
|
Overall dimensions
|
2100*1300*750
|
|||
The motor power
|
15KW
|
Work form
|
S pipe valve type
|
|||
Feeding height
|
0.5m
|
Vertical conveying distance
|
20M
|
|||
Horizontal conveying distance
|
50M
|
The maximum aggregate size
|
2CM
|
|||
The theoretical maximum throughput
|
8cubic/h
|
Maximum pressure; Pressure of work
|
15Mpa;5Mpa
|
|||
Pipe diameter
|
80MM
|
Machine weight
|
600KG
|

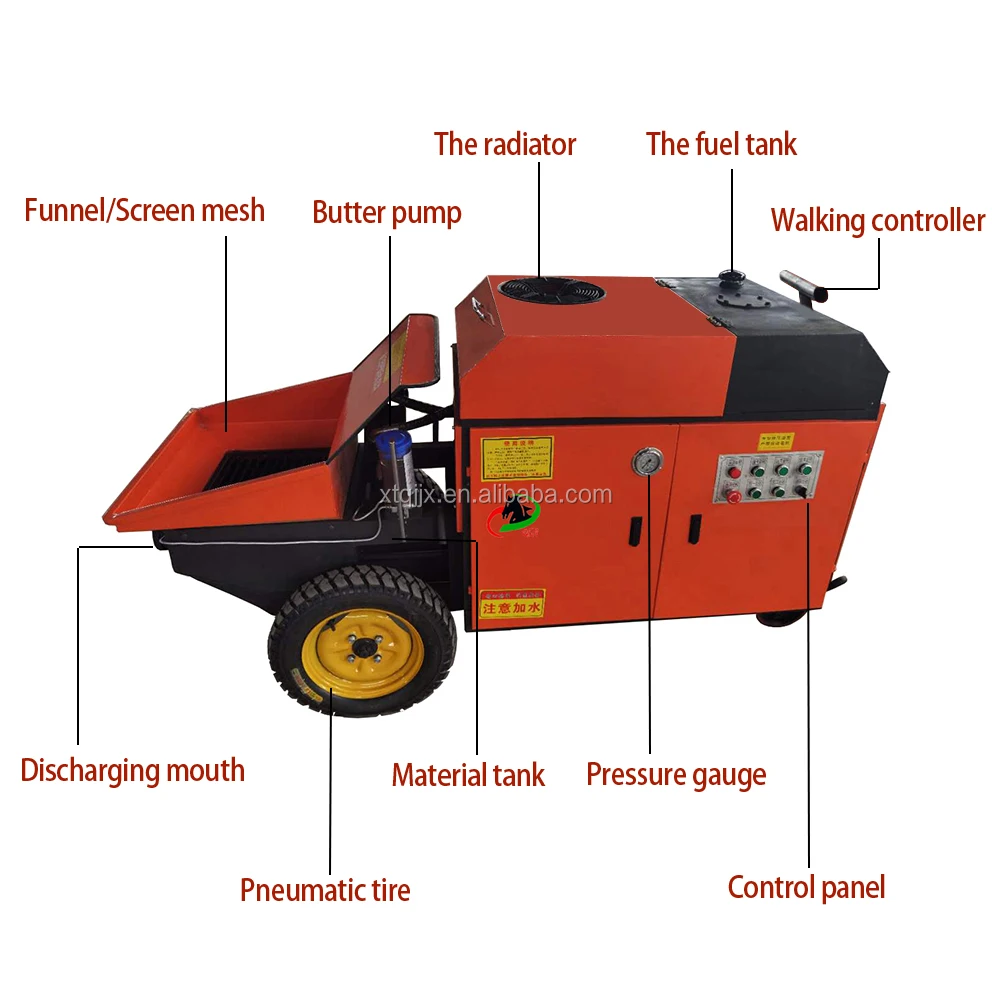

Detailed Images

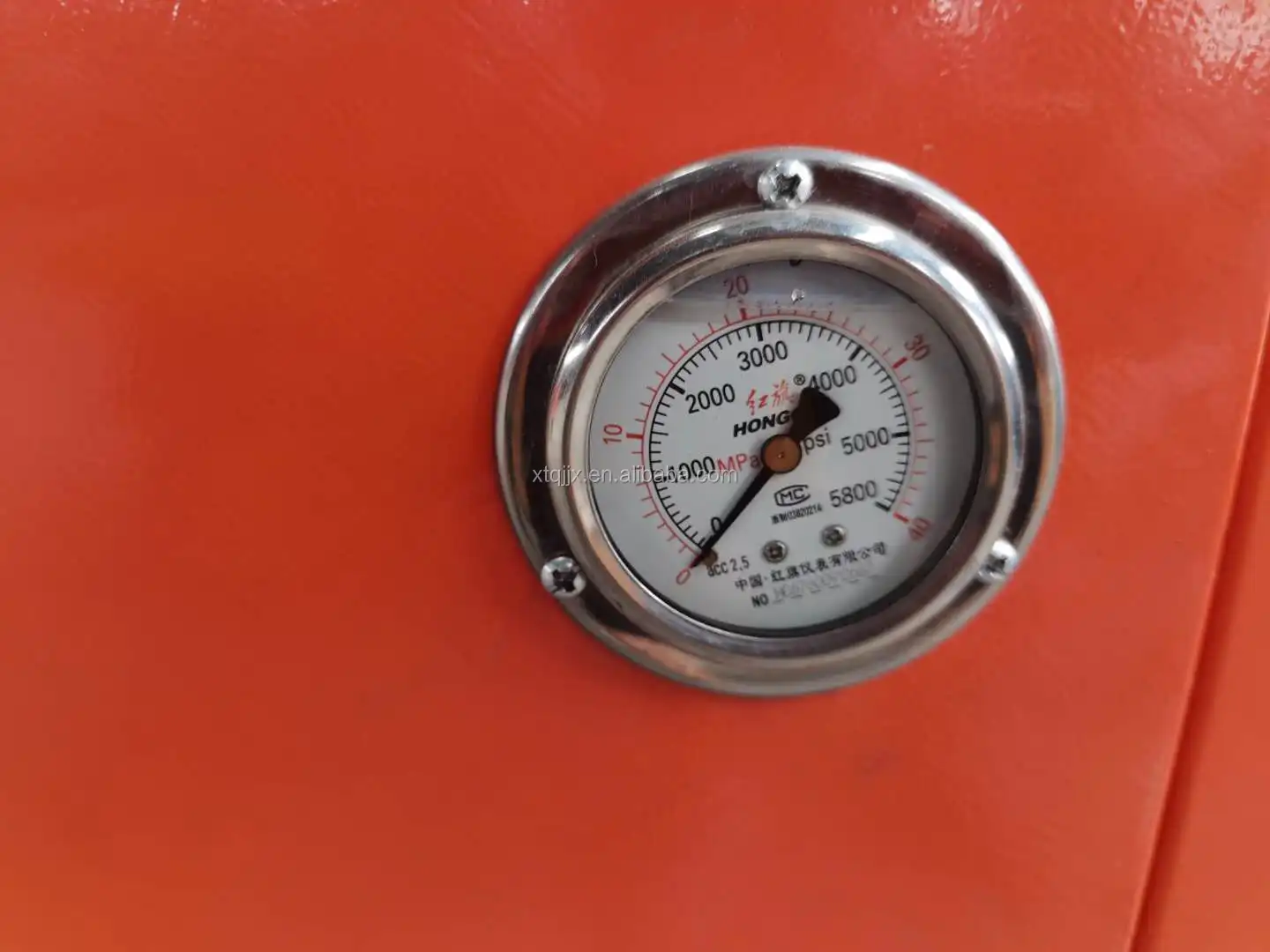

Pressure gauge
High precision, easy to grasp, not easy to make mistakes, improve work efficiency.

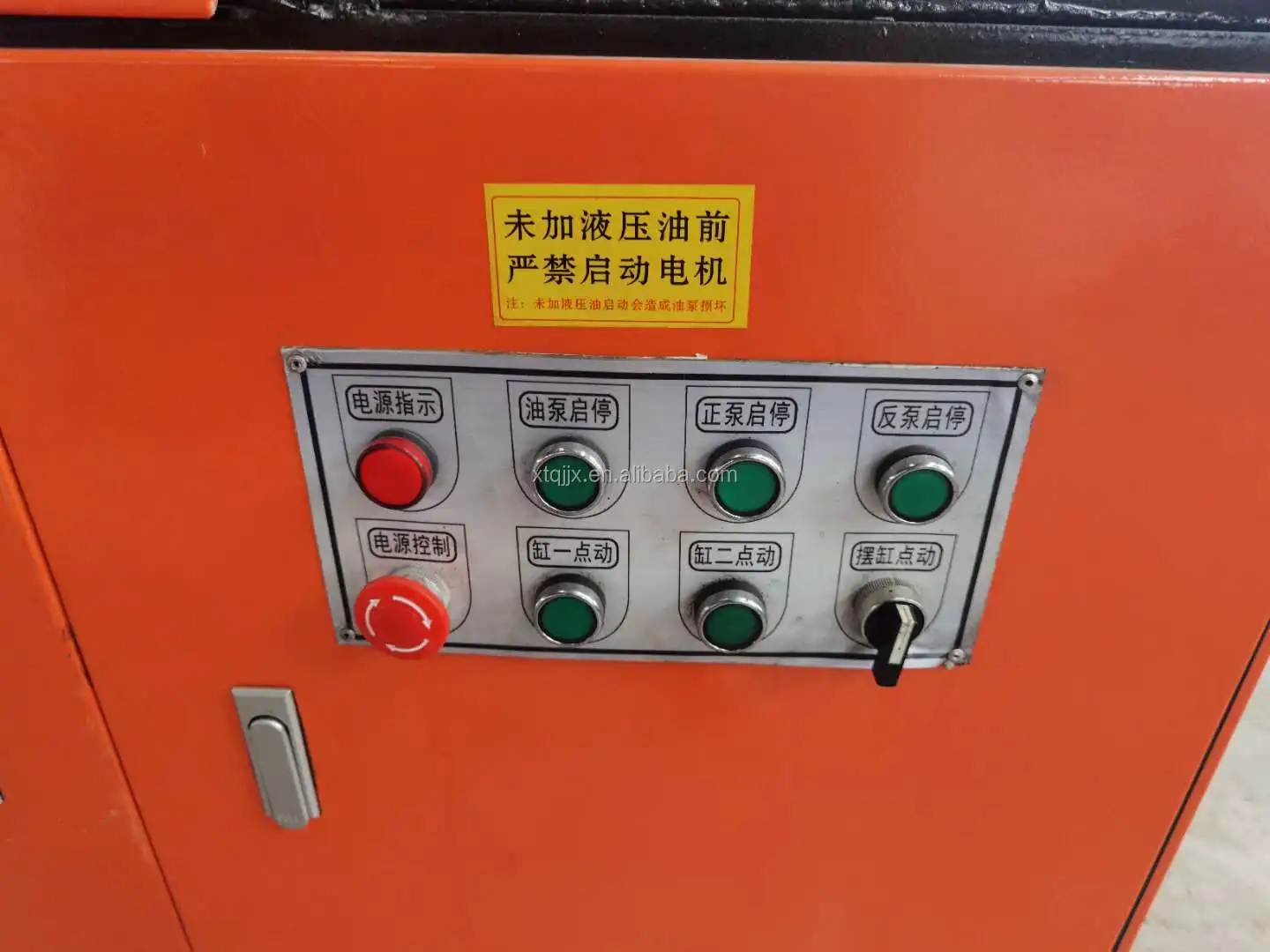

The control panel
The interface is simple, clear at a glance, intimate function label design, easy to operate.


Thicken the tyres
Thickened high quality tires, with strong grip, more anti-skid and wear resistance.

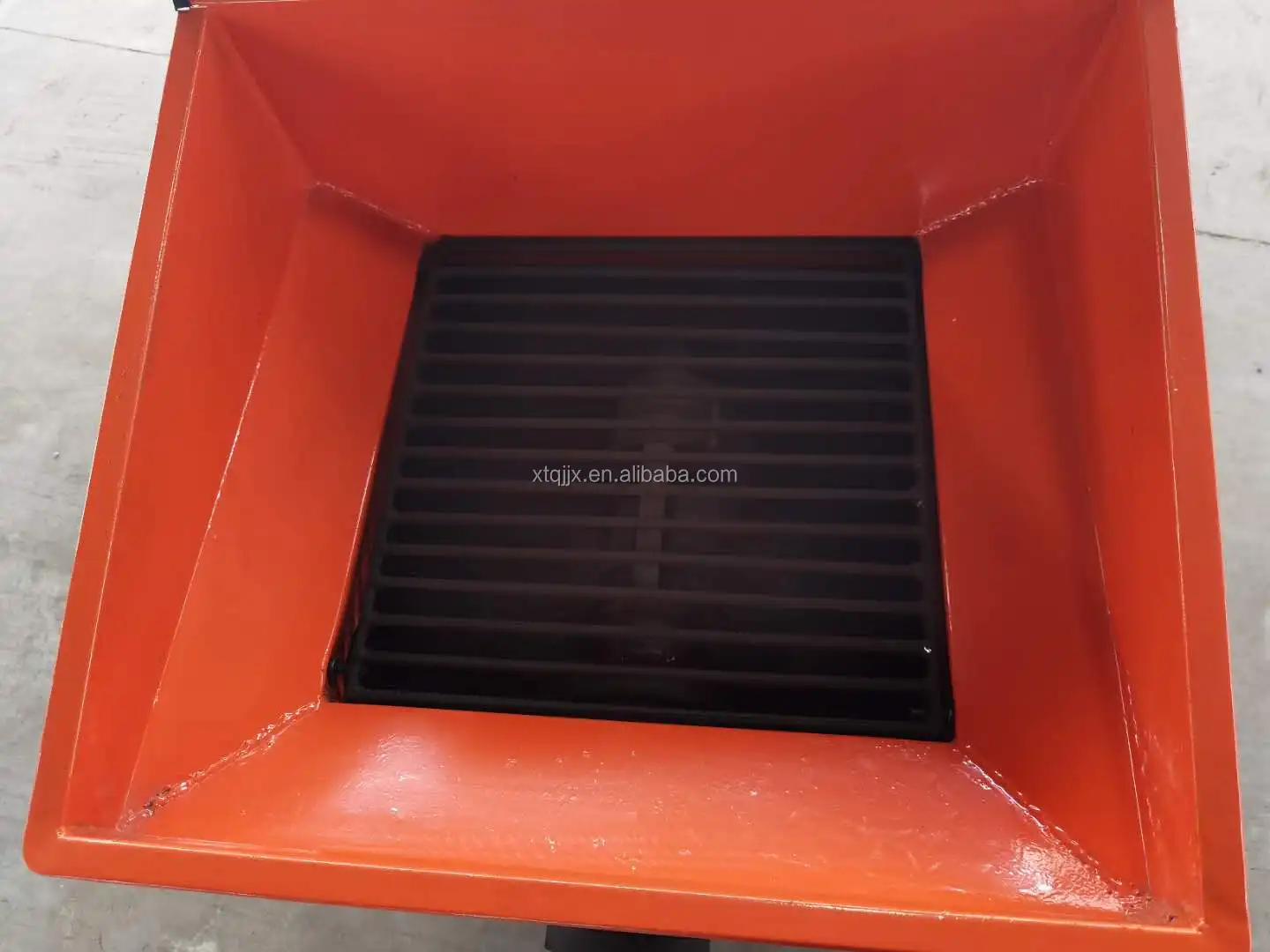

Delivery hopper
The edge is designed to extend and tilt C outward to prevent material overflow.

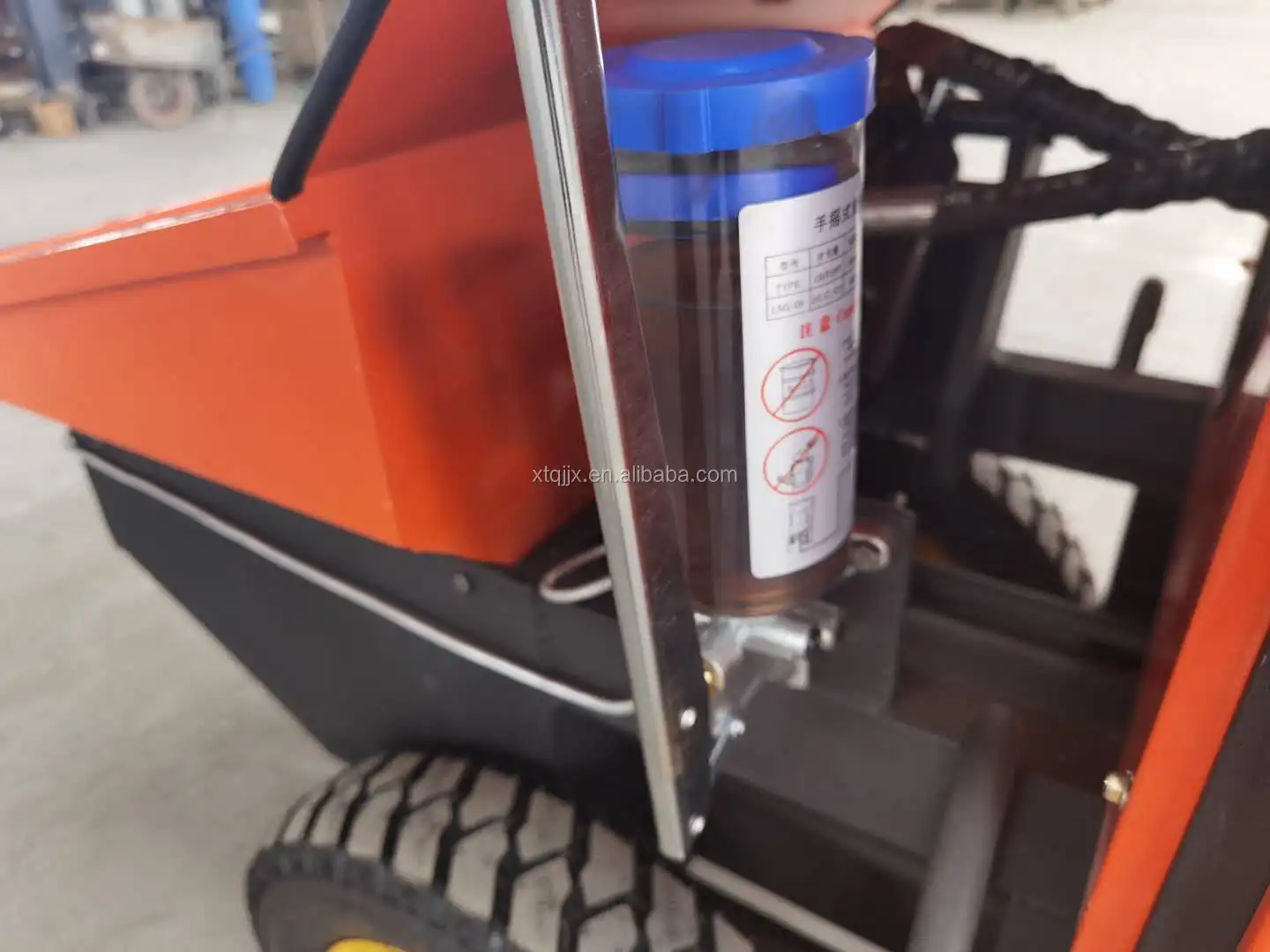

Lubrica
tion sy
stem
Oil is piped directly to the parts of the machine that need lubrication to make the machine durable.
