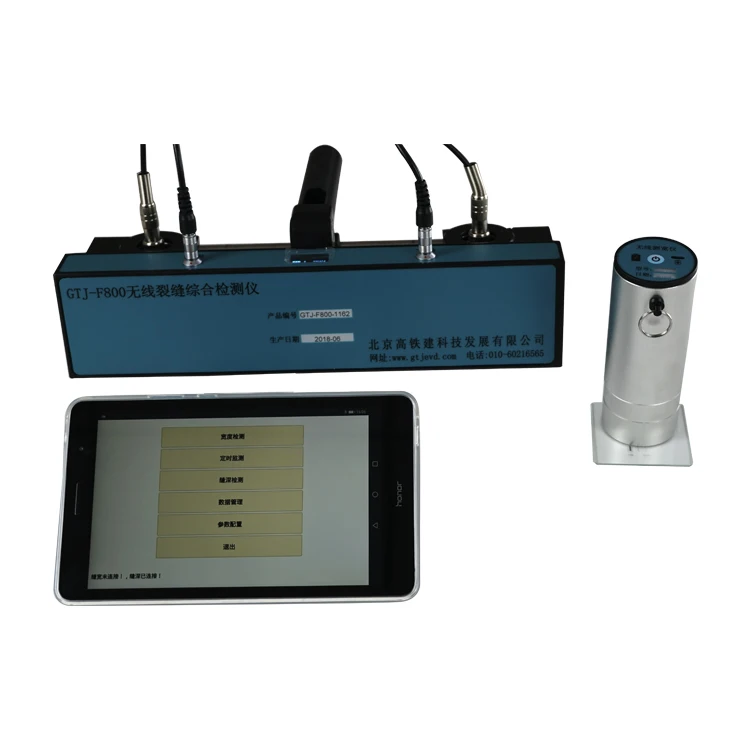

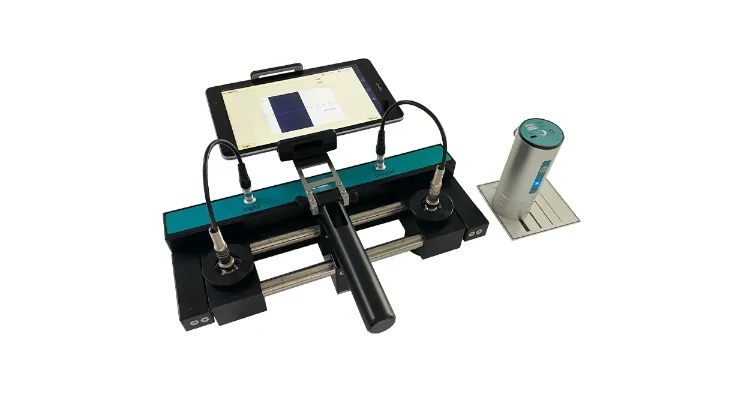

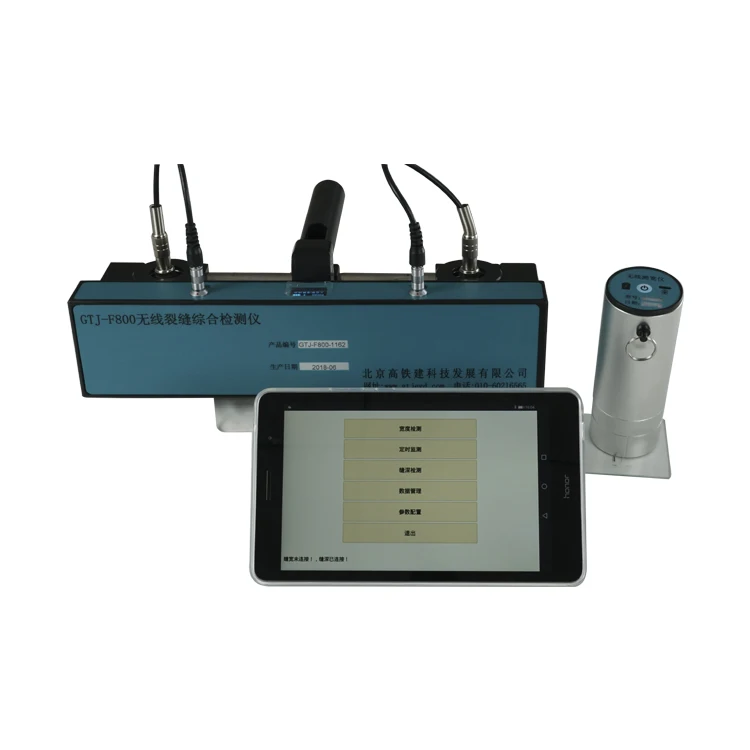

Name: F800 Concrete Wall Crack Measurement Detection Meter Gauge Width and Depth
SKU: 211389365019181
Availability: InStock

F800 Concrete Wall Crack Measurement Detection Meter Gauge Width and Depth

ر.س187,295.84

F800 concrete wall crack measurement detection meter gauge width and depth

Product Parameters

F800 (3).jpg

Used for automatic measurement of crack width and crack depth on structural surface, automatic interpretation and storage of data.

applicable standard:GJ125-99 House safety appraisal standard

CECS 21:2000 Technical specification for ultrasonic testing of concrete defects

specifications and models		IWIN-F800
MCU(main control unit)		8InchesTablet PC Windows operating system 32G storage
Wireless seam width gauge unit	Test range and accuracy	0~10mm; 0.01mm	Wireless seam depth gauge unit	testing range	5~500mm
	magnification times	Digital 60 times		measurement accuracy	5mm or 2%~10% of actual depth
	operating mode	Touch screen + shortcut keys		operating mode	Touch screen + probe automatically triggered
	connection type	WIFI connection		placement	Bluetooth connection
	measurement mode	Automatic/manual interpretation		measurement mode	Fast/standard measurement
	power supply mode	built-in lithium battery		power supply mode	built-in lithium battery
	working hours	More than 10 hours		working hours	More than 10 hours
work environment		-10℃~+40℃ <90%RH	package size		*420140335mm*

Product advantages

F800 concrete wall crack measurement detection meter gauge width and depth

appearance

Integrated design. Small size.

display

Intelligent interpretation of oblique fractures, without vertical;The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually.

fittings

Original wireless camera probe, quick shot button easy to operate;The host adopts Windows tablet, Chinese full touch operation

report generation

The data analysis and report form is provided in the host computer, which can be owned without transferring to the upper computer.

F800 concrete wall crack measurement detection meter gauge width and depth

Features
1	Integrated design. Small size.
2	Original wireless camera probe, quick shot button easy to operate;The main machine adopts Windows tablet, Chinese full touch operation;
3	Intelligent interpretation of oblique fractures, without vertical;The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually.
4	No marking of sounding support, saving time and effort;Tablet and TF card storage, super-large capacity without limit, copy data convenient, fast;
5	The data analysis and report form is provided in the host computer, which can be owned without transferring to the upper computer
