Products Description

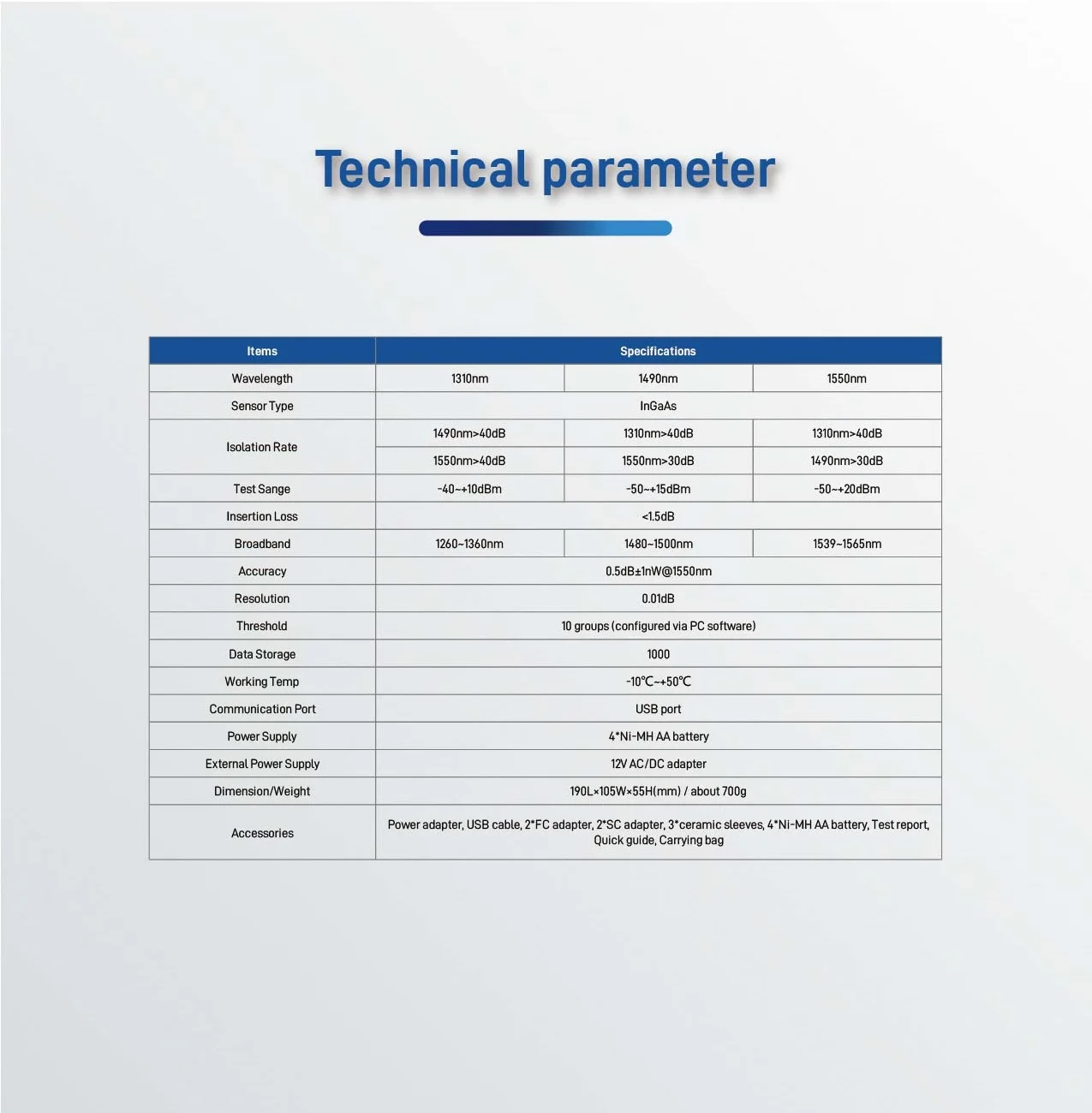

Specification
Main features:
1. Intergrated with high performance optical detector Support
2. Support auto power off

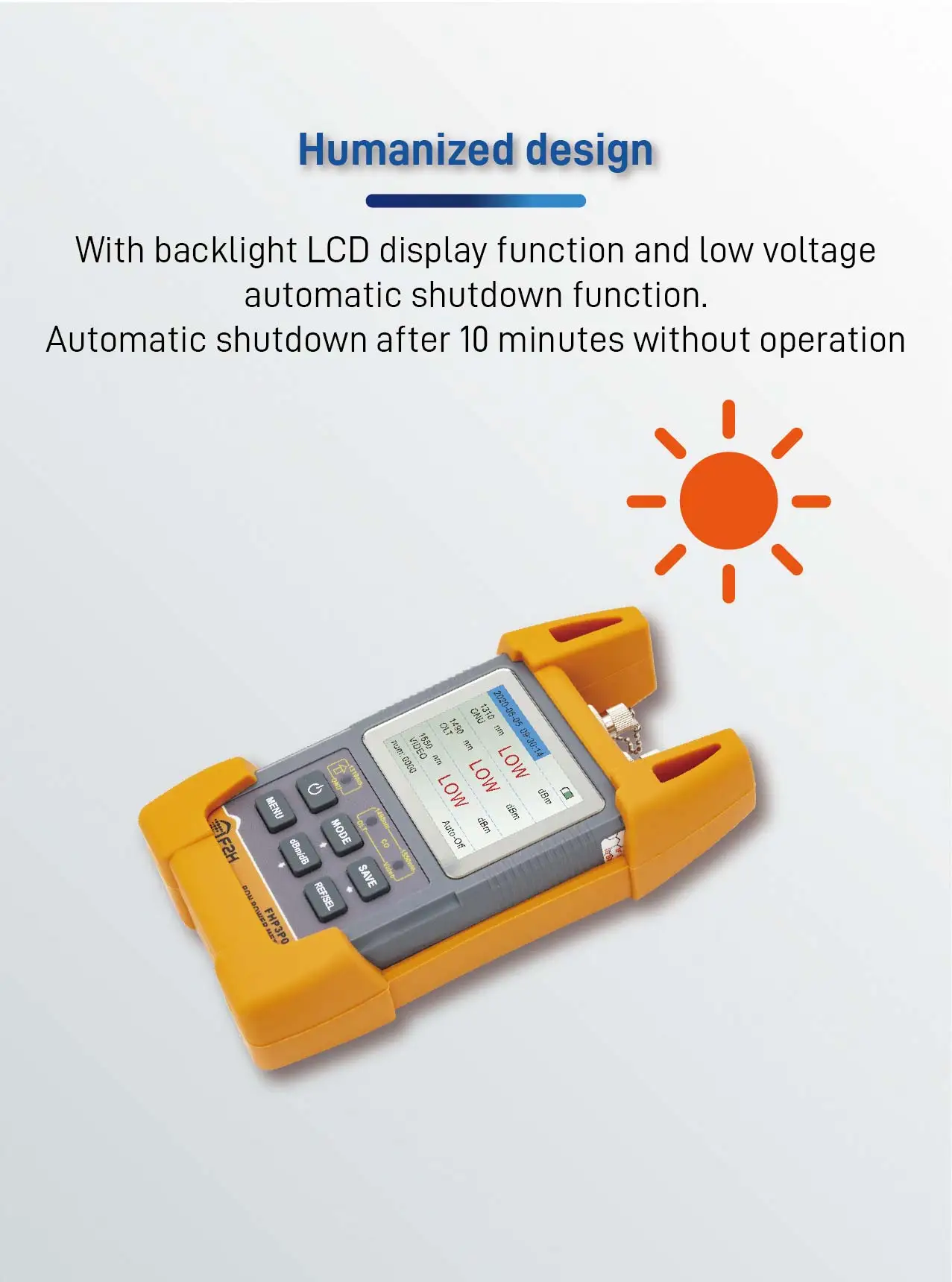

3. With backlight function
4. Compact and portable design
5. Support reference value setting
3. With backlight function
4. Compact and portable design
5. Support reference value setting
|

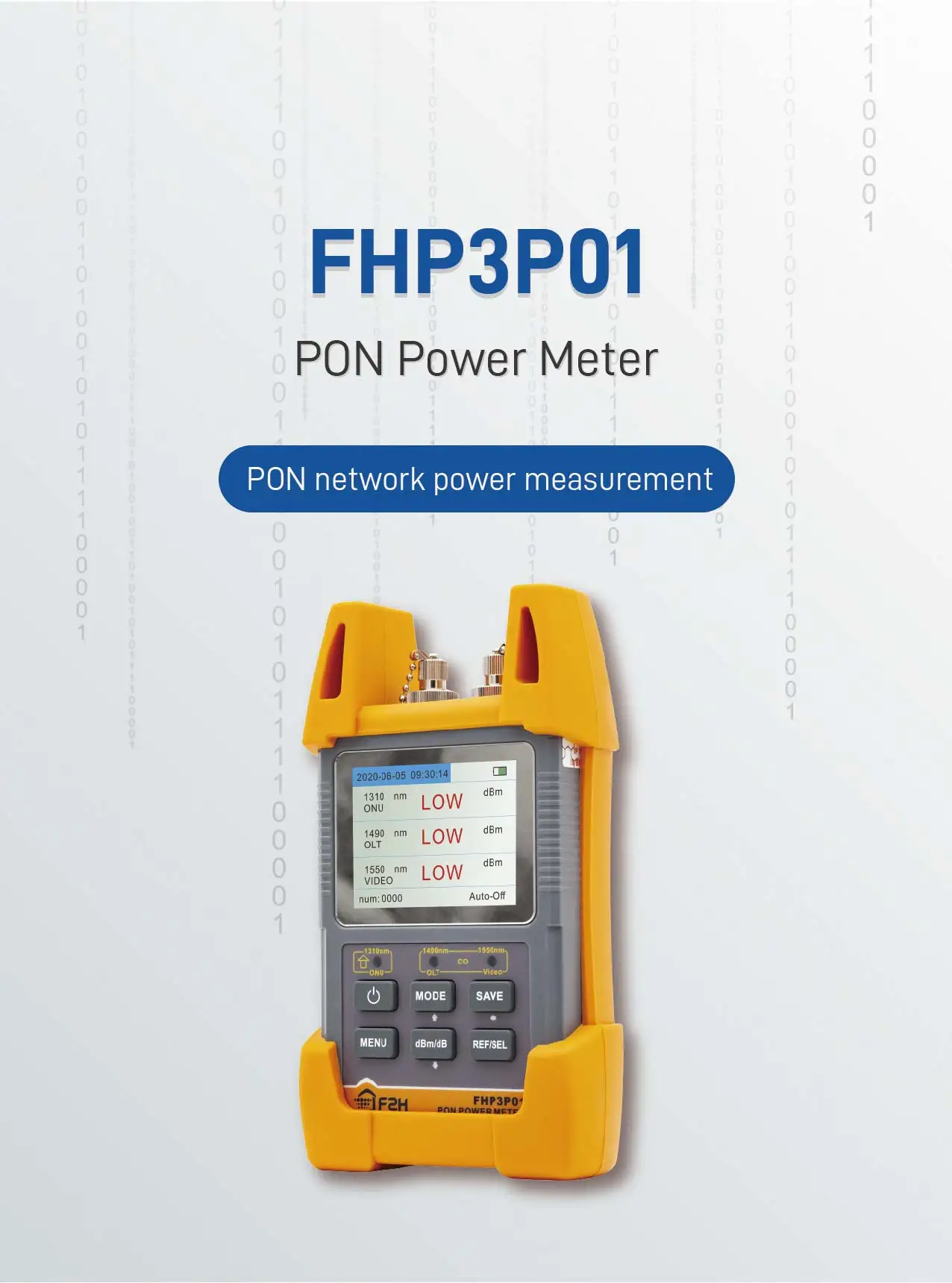

Model Number
|
FHP3P01
|
|
Senser type
|
InGaAs
|
|
Isolation Rate
|
1310nm: 1490nm>40dB, 1550nm>40dB
1490nm: 1310nm>40dB, 1550nm>30dB
1550nm: 1310nm>40dB, 1490nm>30dB
|
|
Insertion loss
|
＜1.5dB
|
|
Test Sange
|
1310nm: -40~+10dBm
1490nm: -50~+15dBm
1550nm: -50~+20dBm
|
|
Broadband
|
1310nm: 1260~1360nm
1490nm: 1480~1500nm
1550nm: 1539~1565nm |
|
Accuracy
|
0.5dB±1nW@1550nm
|
|
Resolution
|
0.01dB
|
|

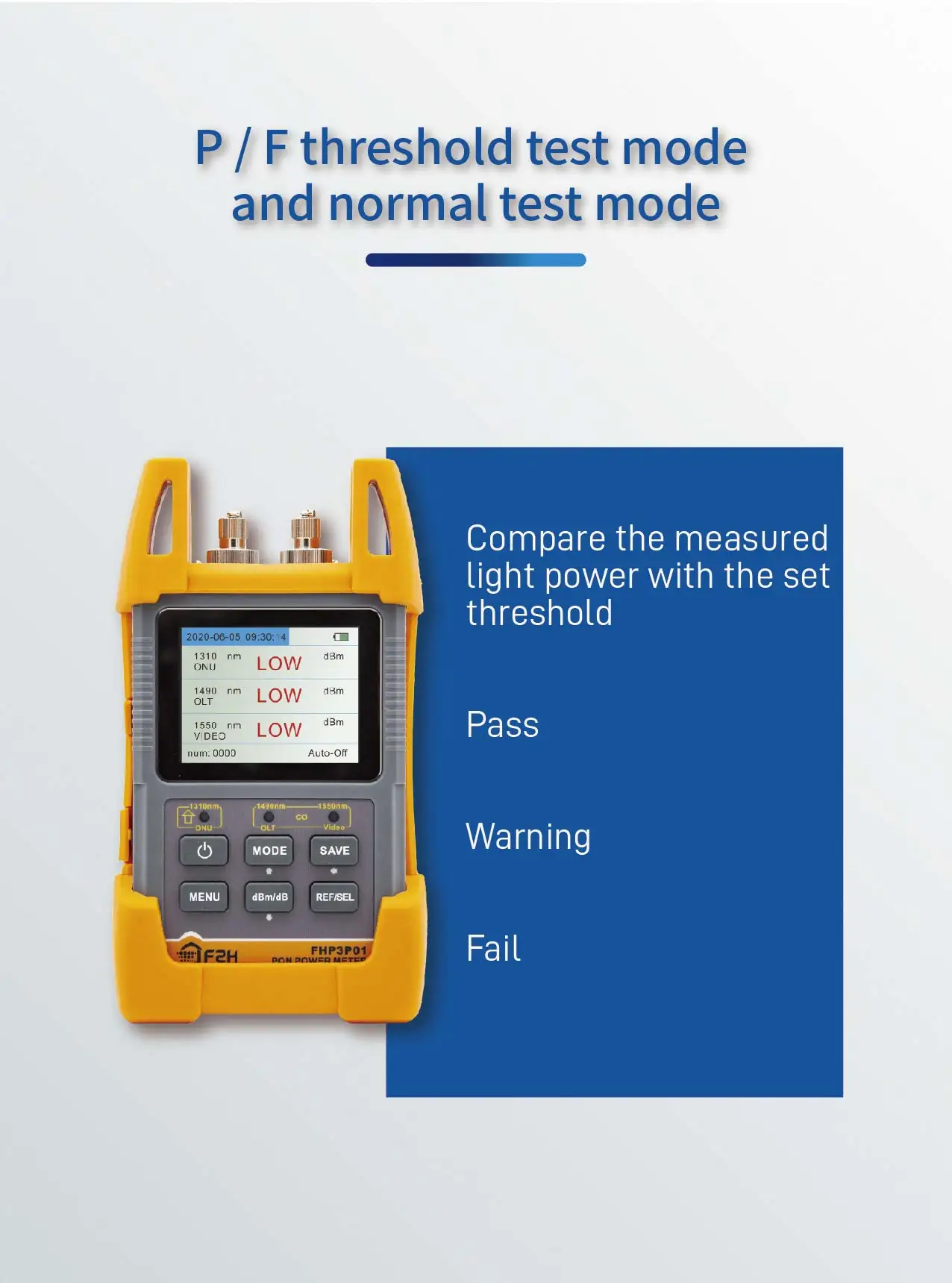

Threshold
|
10 groups (configured via PC software)
|
|

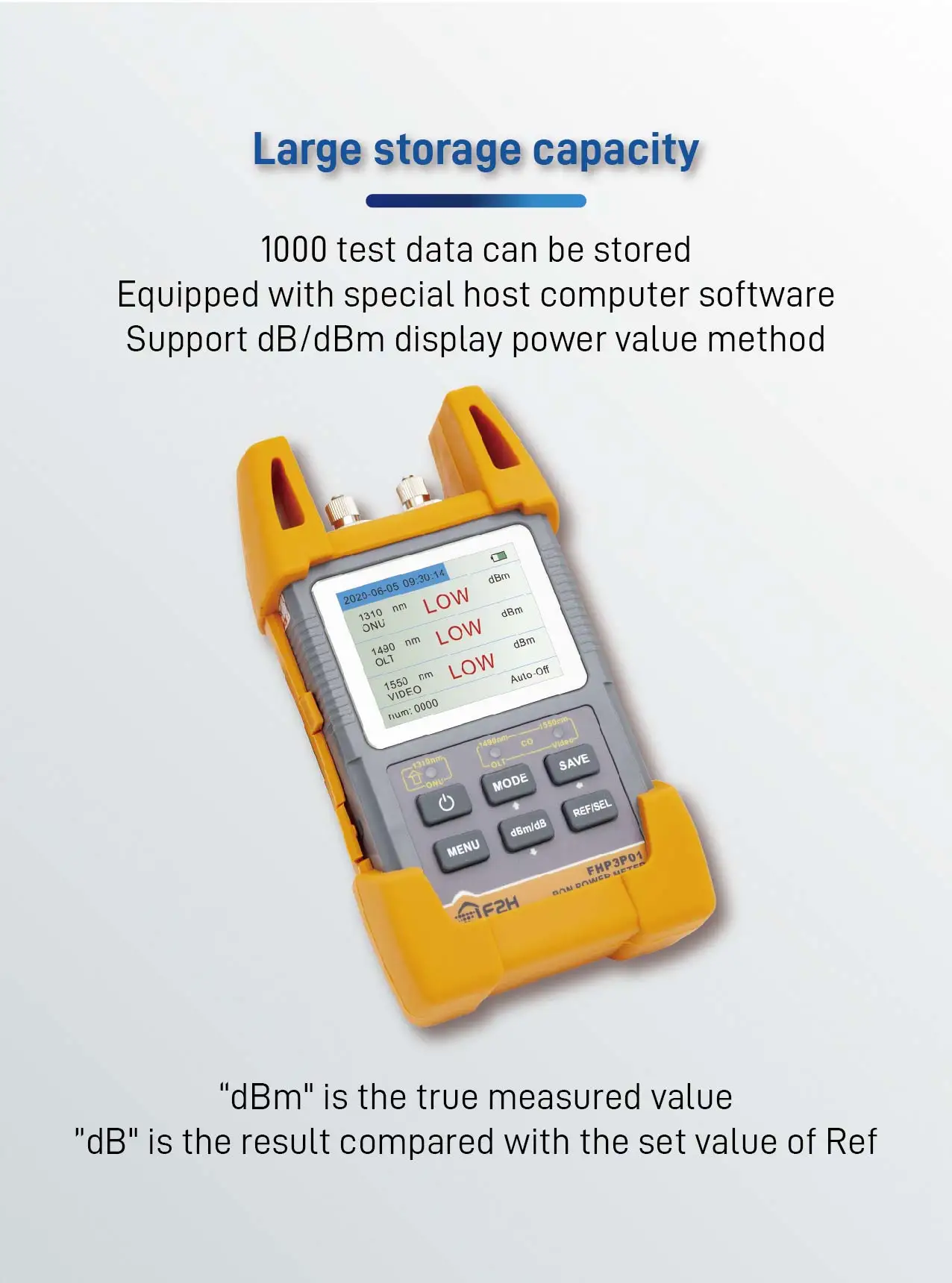

Data Storage
|
1000
|
|
Communication Port
|
USB port
|
|
Power Supply
|
4*Ni-MH AA battery
|
|
External Power Supply
|
12V AC/DC adapter
|
|

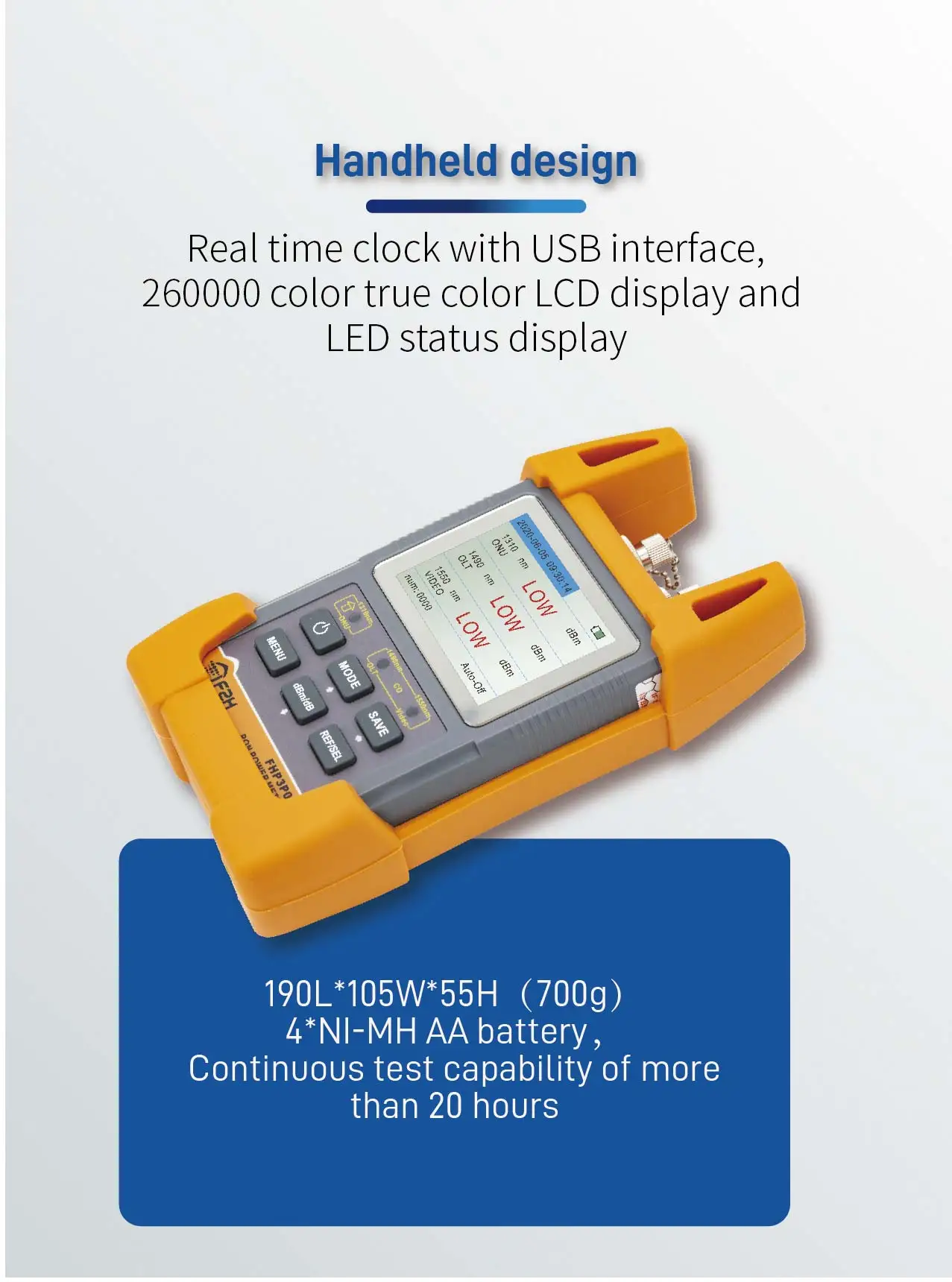

Dimension/Weight
|
190L×105W×55H(mm) / about 700g
|
|
Accessories
|
Power adapter, USB cable, 2*FC adapter, 2*SC adapter, 3*ceramic sleeves, 4*Ni-MH AA battery, Test report, Quick guide, Carrying bag
|
