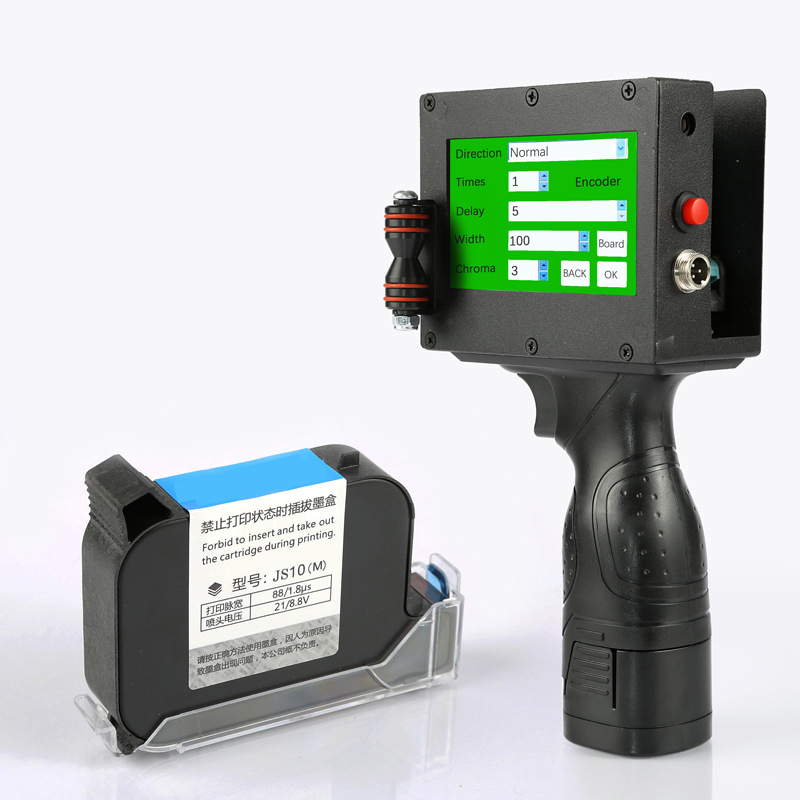

Expiry Date bottle printer Code Printing Machine for cable

Model

VNC-K2

Dimension

130*128*242mm

Net weight

1.10kg

Printing direction

adjusted within 360 degree, meet all kinds of production needs

Character type

high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English

Function

Handheld print and On line printing(Need Sensor extra)

Printing pictures

all kinds of logo, pictures can be uploaded through USB disk

Printing accuracy

300DPI

Printing line

1-5 lines (adjustable)

Printing height

2mm-25.4mm

Print code

bar code, QR Code

Printing distance

1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)

Print serial number

1~9

Automatic print

date, time, batch number shift and serial number, etc

Storage

external USB save the information transfer in a free way

Message length

2000 characters for each message, no limitation on length

Printing speed

70m/min

Ink type

Quick-dry environmental ink, water-based ink and oily ink

Ink color

black, white, red, blue, yellow, green, invisible

Ink volume

42ml(usually can print 800,000 characters)

External interface

USB,Photoelectric interface, can directly insert a USB disk to upload information

Voltage

DC16.8V lithium battery, print continuously more than 10 hours and 20 hours standby

Control panel

touch-screen (can connect wireless mouse)

Power consumption

the average power consumption is lower than 5W

Working environment

Temperature:0 – 38 degree; Humidity: 10% – 80%

Printing material

board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
