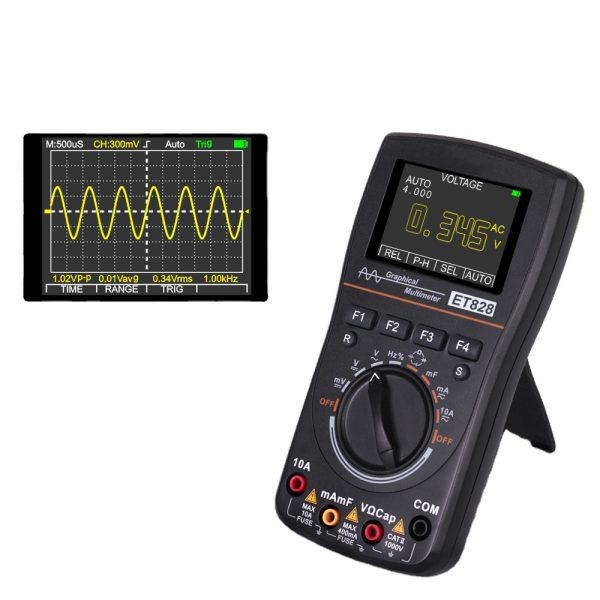

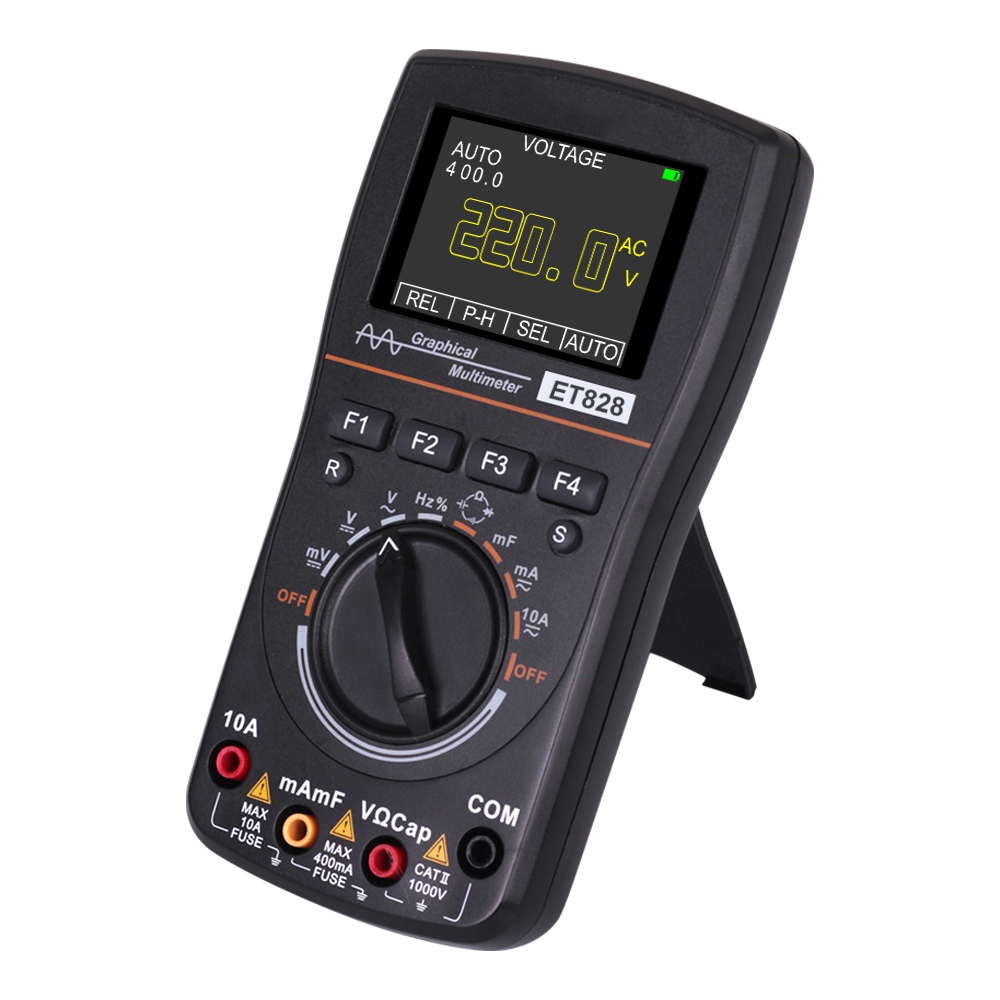

ET828 Multimeter Digital Oscilloscope Multimeter

ر.س743.98

Clear
Qty:
Compare

Request quotation for: ET828 Multimeter Digital Oscilloscope Multimeter

Products Description
Details Images

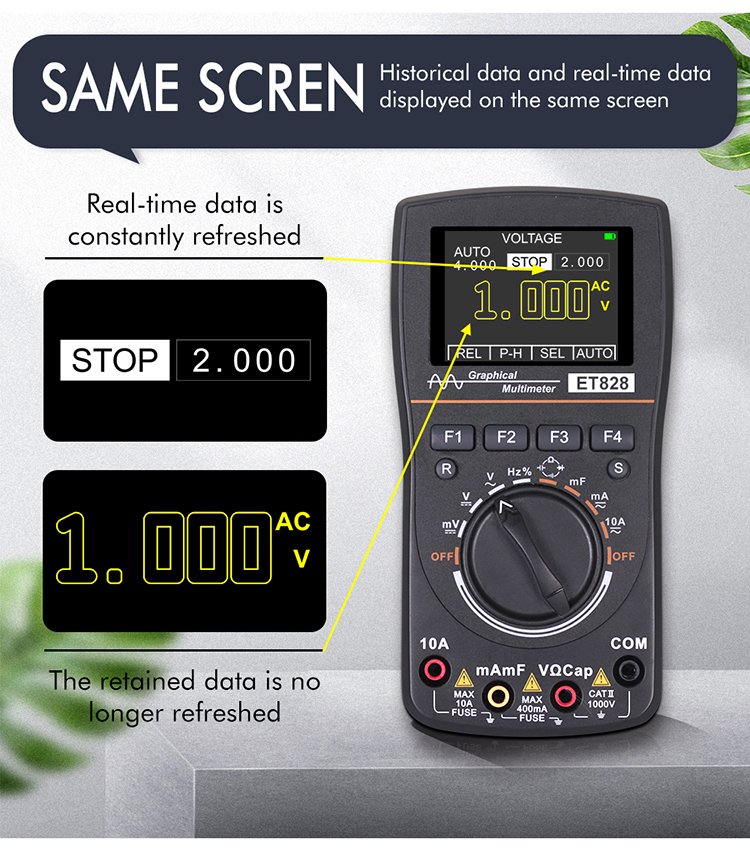

Display
240X320 color screen
Observation area
49.0mm x 36.72mm/1.93×1.45in
Backlight
Always on
Input resistance
about 10MΩ
Battery
3 X AA batteries (not included)
Automatic sleep
15 minutes or disabled
Static working current
about 65mA
Sleep current
about 35uA
Storage capacity
100 DMM data, 10 OSC waveform records
Use environment
0 – +40 degrees Celsius; <75%RH
Storage conditions
-10 – +60 degrees Celsius; <90%RH
Dimensions
160x83x32mm/6.3×3.27×1.26in

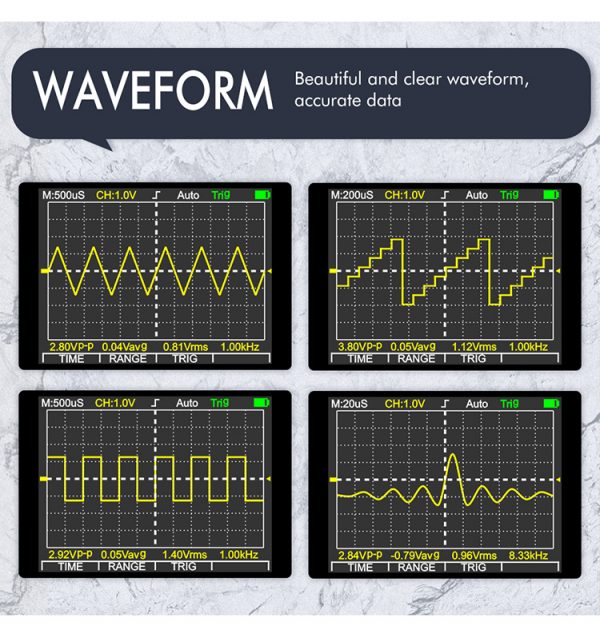

Analog bandwidth
1MHz (limited to ACV oscilloscope)
Maximum real-time sampling rate
2.5Msps
Number of channels
1
Input impedance
about 10MΩ
Vertical sensitivity range
300mV – 100V/grid
Time base range
2.5us – 10s/div
Vertical amplitude accuracy
±(5%+ 0.2div)
Time base accuracy
±(0.01% + 0.1div)
Scan mode
Auto/normal/single
Trigger edge selection
rising edge/falling edge

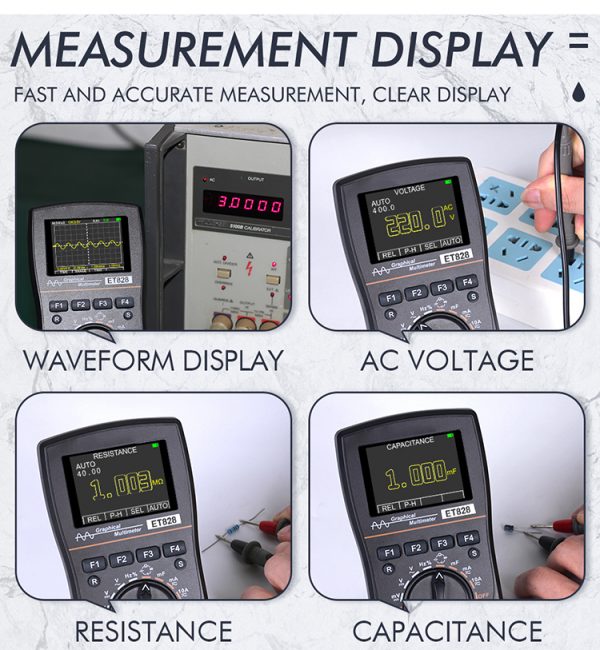

Automatic measurement function
Vp-p, Vavg, Vrms, Hz
Analog bandwidth
1MHz attenuated to 5dB
