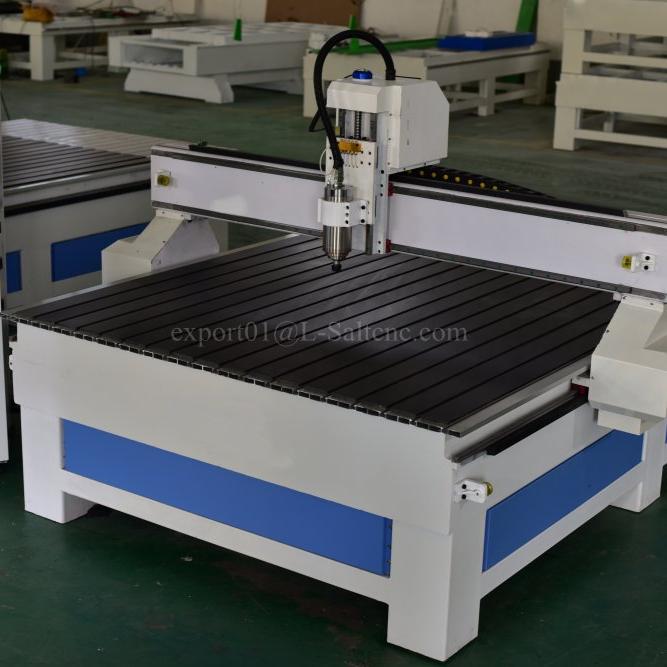

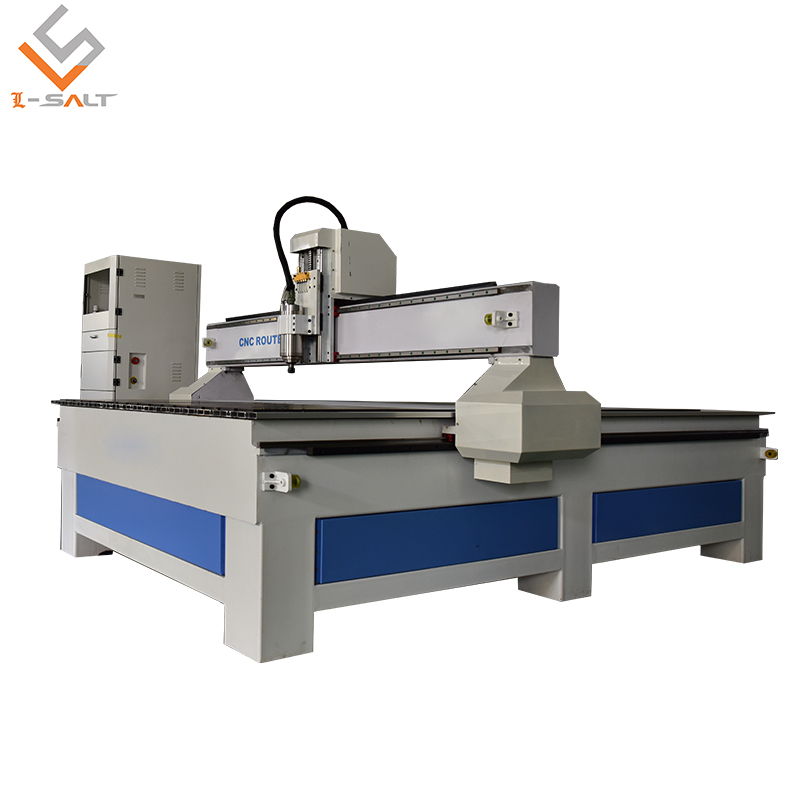

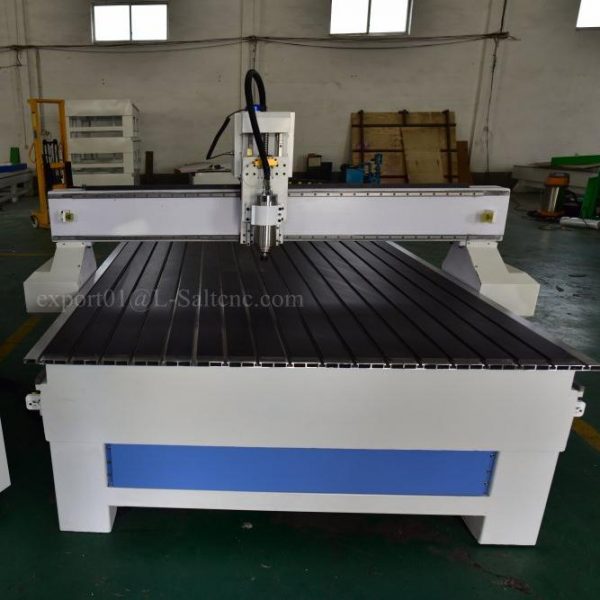

Eps foam cutting machine diy cnc router desktop cnc router
|
Rail
|
Taiwan square Linear Rail
|
|
Package size
|
3200*2200*1750mm;Gross Weight :1180KGS
|
|
X,Y working area
|
1300x2500mm,Machine transmitting by rack and gear
|
|
Z working area
|
200mm
|
|
Max. speeding
|
17m/min
|
|
Work-holding
|
Standard with wide and hard aluminum table with high quality clamps
|
|
Spindle motor power
|
3KW water cooling spindle
|
|
Processor
|
Adopt the most advanced Mach3 controlling system
|
|
Surroundings for
|
Windows10/7/XP
|
|
Power(spindle is not included)
|
4000W
|
|
Working voltage
|
AC220V/50HZ/60Hz for standard machine
|
|
Main axis rotating
|
0-24000rpm/min
|
|
Work Mode
|
Large Stepper motors and drivers ;Servo (Optional)
|
|
Control cabinet
|
Independent computer control cabinet
|
|
Engraving tools & collets
|
3.175mm;6mm;12.7mm;(sending you 10 pcs with the machine ). 2 collets standard with the machine
|
|
Optional
|
Working Area Dust collector; Servo system,Vacuum system
|
—Working Area 1300*2500*200mm
—Spindle: 3.0KW water cooling spindle
—Stepper motor and Leadshine driver
—XY by rack, Z by TBI ball screw transmission
—Mach3 Control system
—T-Slot table
—Lubrication system
—JD5.5 paint software
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They’re very environmentally friendly.
5.If you need a wooden box, we will make a wooden box
Jinan L-Salt Machinery CO,.LTD , the professional cnc router and laser cutting machine manufacturer
in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC
Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving
Machine and so on, which have passed the CE etc. Our cnc routers are widely used for advertising,
woodworking, mould, stone, metal industry.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Jinan L-Salt Machinery CO., Ltd
Email: export01 (@) l-saltcnc.com (delete () my email)
Skype Number: 15628767027
Mobile Phone (WhatsApp): 0086-15628767027 Wechat: 15628767027
Address: Licheng District, Ji’nan, Shandong, China (Mainland)
