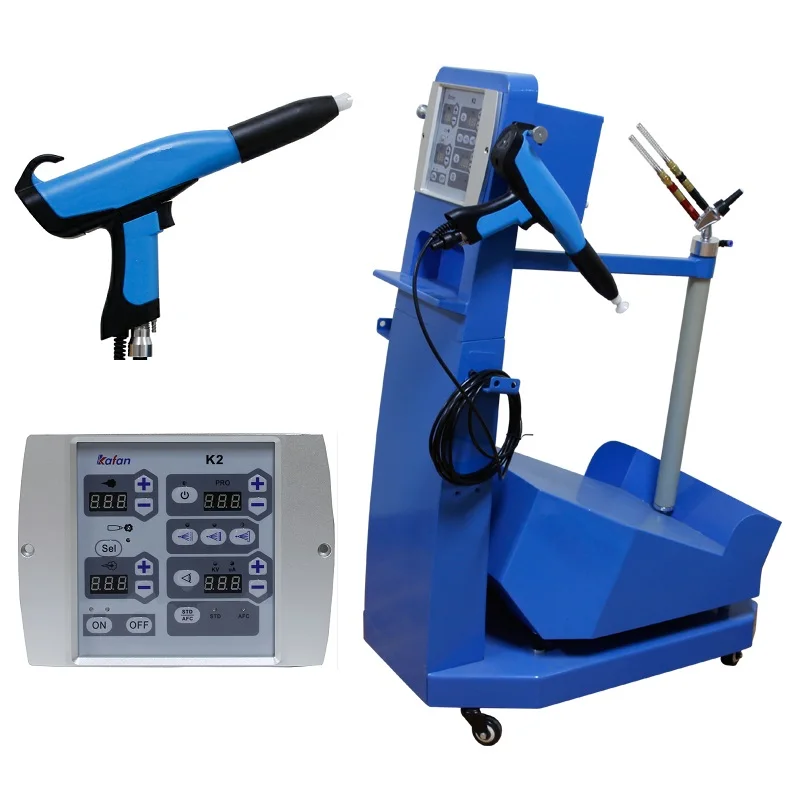

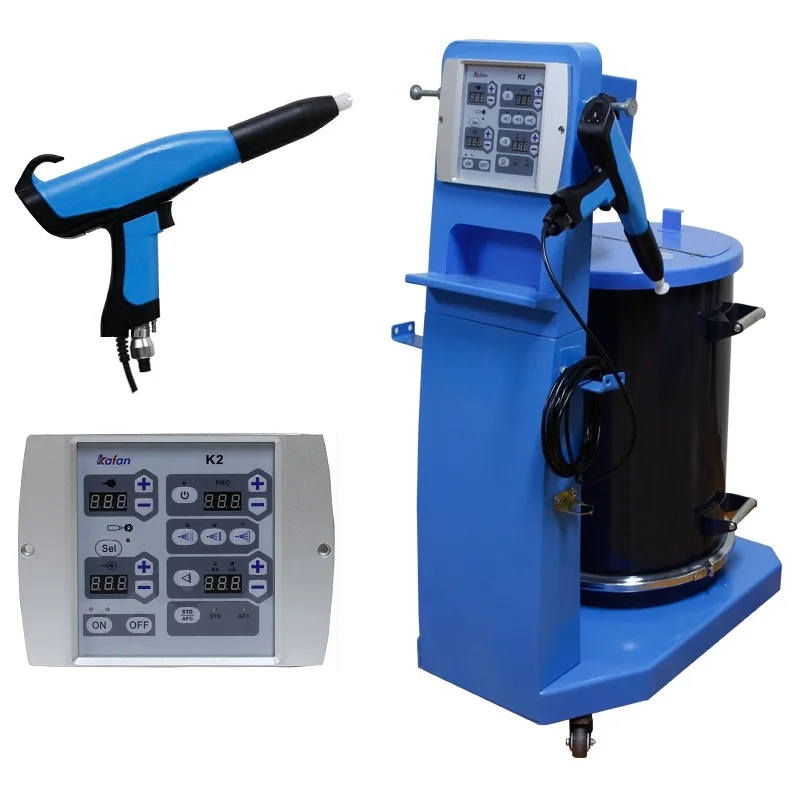

Electrostatic Powder Spray Machine with Advanced Technology

ر.س2,000.00

Qty:

Product Description

Electrostatic Powder Spray Machine with Advanced Technology

The new powder coating gun with an easy-to-operate interface and advanced DVC (digital valve control) technology, provides more accurate electrostatic powder coating, and meets the challenge to cover complex shaped and corners with nice applicaitons result.


Electrostatic Powder Spray Machine With Advanced Technology Application:

This powder coating system is ideal for complex and irregular shape products, such as wheels, profiles, radiators, electronics, etc.

Detailed Image

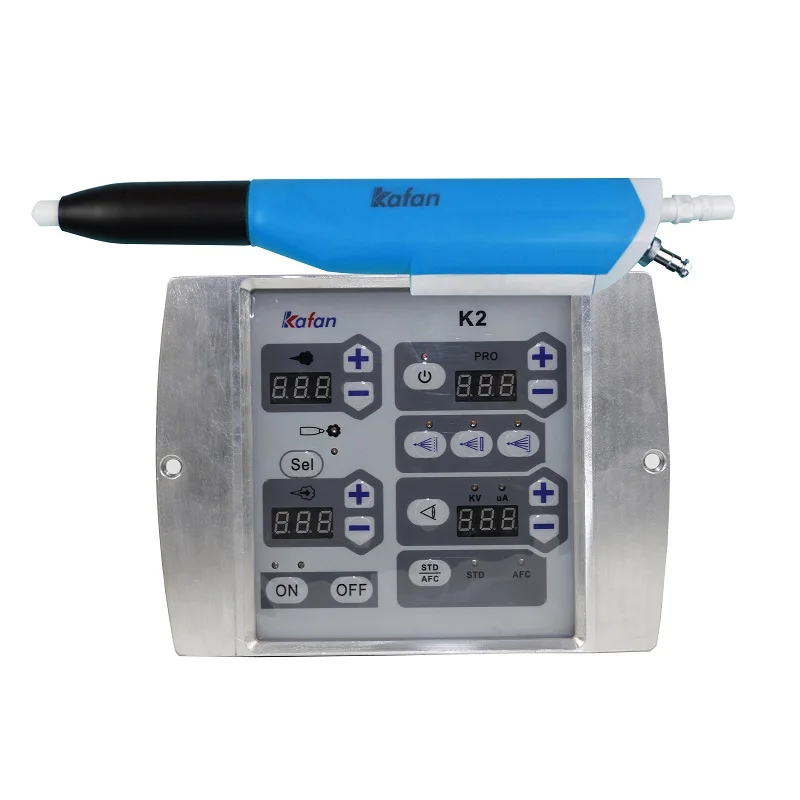

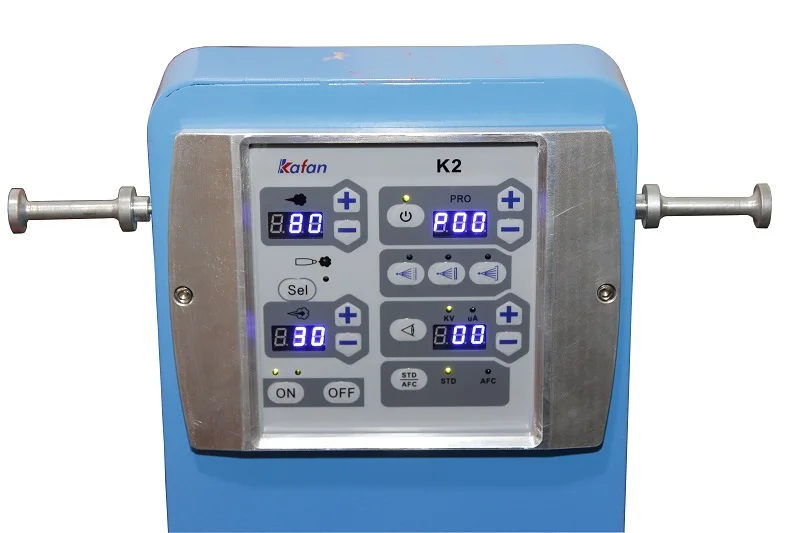

Intelligent Powder Gun Controller
1. DVC digital operator interface simplifies operating steps.
2. Intelligent system provides precise adjustment of current, voltage, powder output and atomization effect etc
3. Offers 3 preset programs: flat parts coating, corner coating, re-coating.
4.Can store 20 self-structured programs.

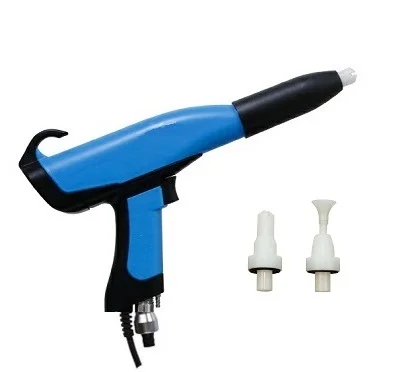

Manual Powder Coating Gun

1. Light-weight and best-balanced gun with an ergonomic design that makes powder coating simple.
2. Supply High-quality coating flat/round nozzles help operators achieve the most prefect surface spraying.
3. 100kV high-efficiency electrostatic gun is suitable for working for a long time.

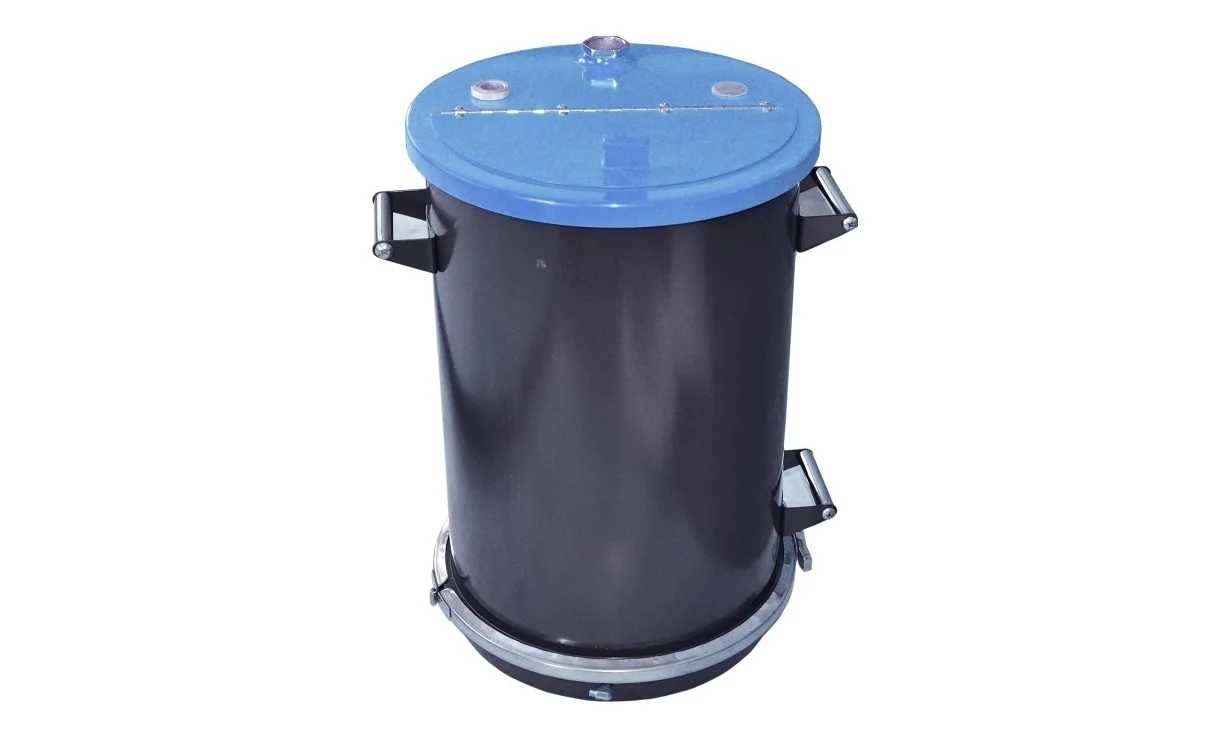

Fluidizing Powder Hopper
Size: D36*H62 cm
Capacity: 60 pounds powders

1.Easy-to-clean powder hopper achieve with bottom removable, easy for color change.
2.The fluidizing plate avoids powder agglomeration achieving  continuous spraying
3.60L capacity allows to finish big batch powder coating jobs.
Product Parameters
Product Name
COLO-K2
Model
Hopper Model
Color
Blue
Trolley
New Trolley
Power range
 100-240 V
Frequency
50/60HZ
Input power
50W
Temperature range in use
 -10 to +50
Powder Gun
Colo-08 Spray gun
Gun weight
500G
Rated output voltage
24VDC
Aximum output current
180Ua(max)
Maximum voltage output
 0-100KV ( adjustable)
Maximum input-air pressure
10kg/cm
Maximum powder injection
600g/min
Polarity
negative (-)
Optimum input-air pressure
6kg/cm
Minimum input-air pressure
 4kg/cm
Maximum water vapor content or compressed air
1.4g/N m3
Maximum oil vapor content of compressed air
0.1ppm
Maximum compressed-air consumption
13.2 m3/h
About Us

Kafan Company

Kafan is a new brand under COLO group, whose people has specialized in powder coating equipment for more than 10 years. Our products covers: electrostatic powder coating gun, powder spray booth, powder coating oven, powder coating line and some spare parts. Such one-stop purchasing facilitate customers buy what they want. As an professional manufacturer, we devoted to supplying most innovative and reliable powder coating system solution with powerful production capacity and advanced technology.
Kafan located in Hangzhou, China, we own a manufacturing base of 6000 square meters, around 150 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, admin department and finance department, etc. As a fast growing company in powder coating industry, we have exported to more than 100 countries, established long term business with distributor in US, Russia, Poland, UK, Germany, South Africa, Vietnam, Malaysia, etc. Quality and service is our endless goal to achieve.

Customer Photos
Packing & Delivery
Related Products

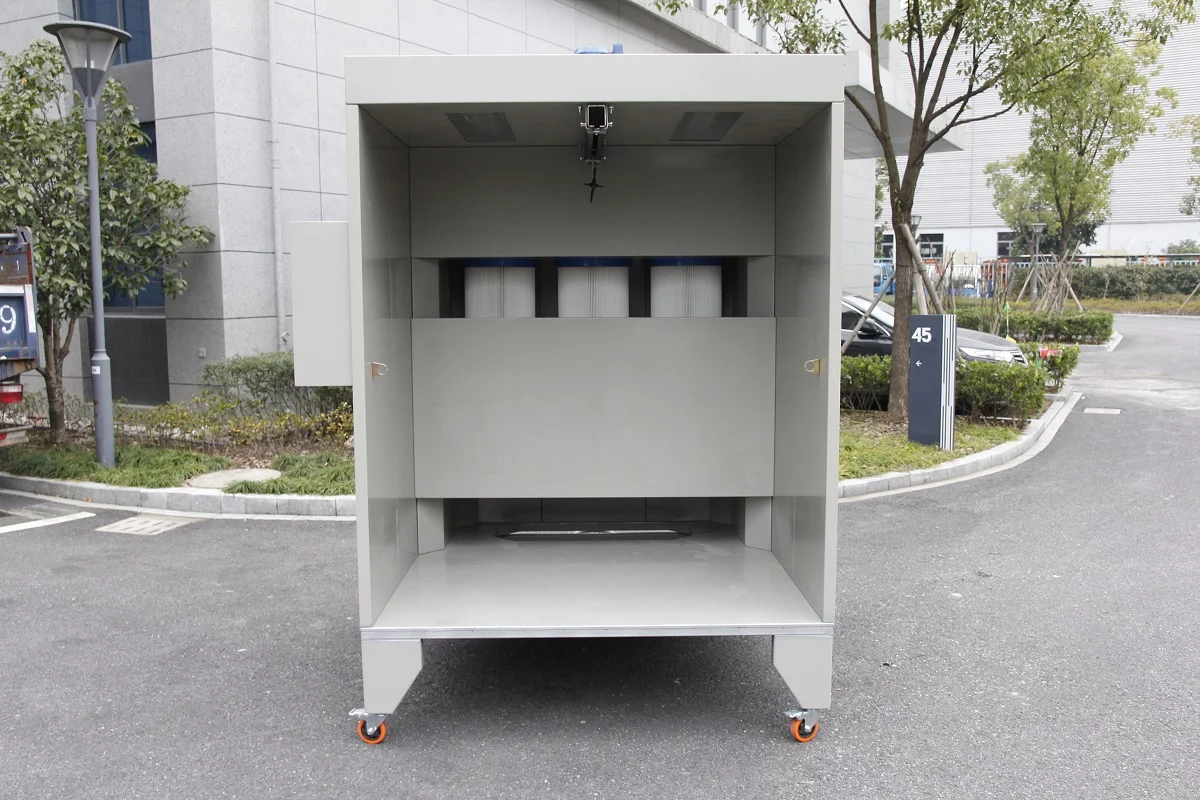

          Industrial Powder Coating Booth System
